14

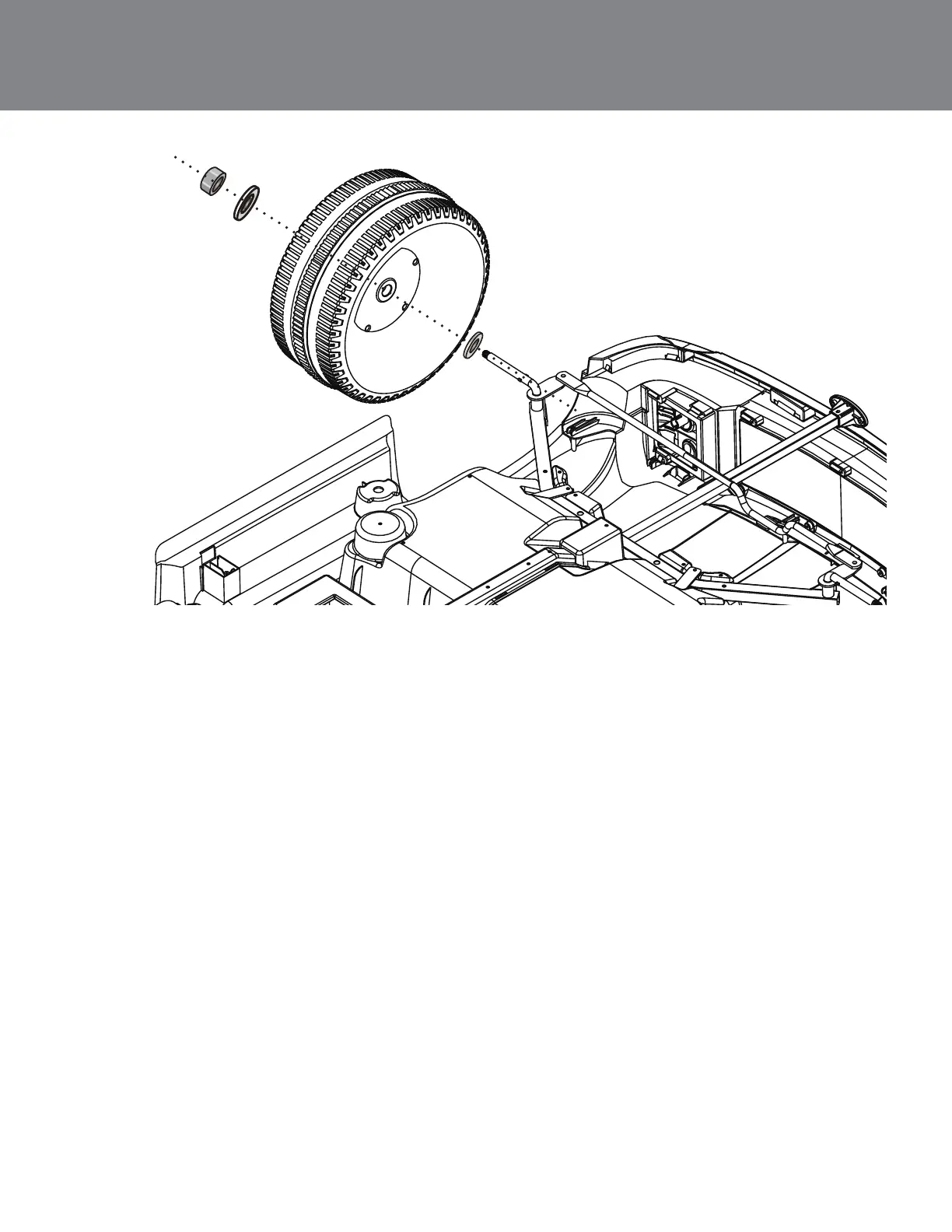

Assemble the Front Wheels
1. Slide a thick washer onto the front axle
2. Slide the front wheel onto the front axle (14). The concave side should face inward.
3. Slide the thin washer onto the front axle
4. Using the hex wrench, fasten the nut on the end of the axle and tighten until you
can not tighten any more
5. Repeat steps 1-4 for the other front wheel
