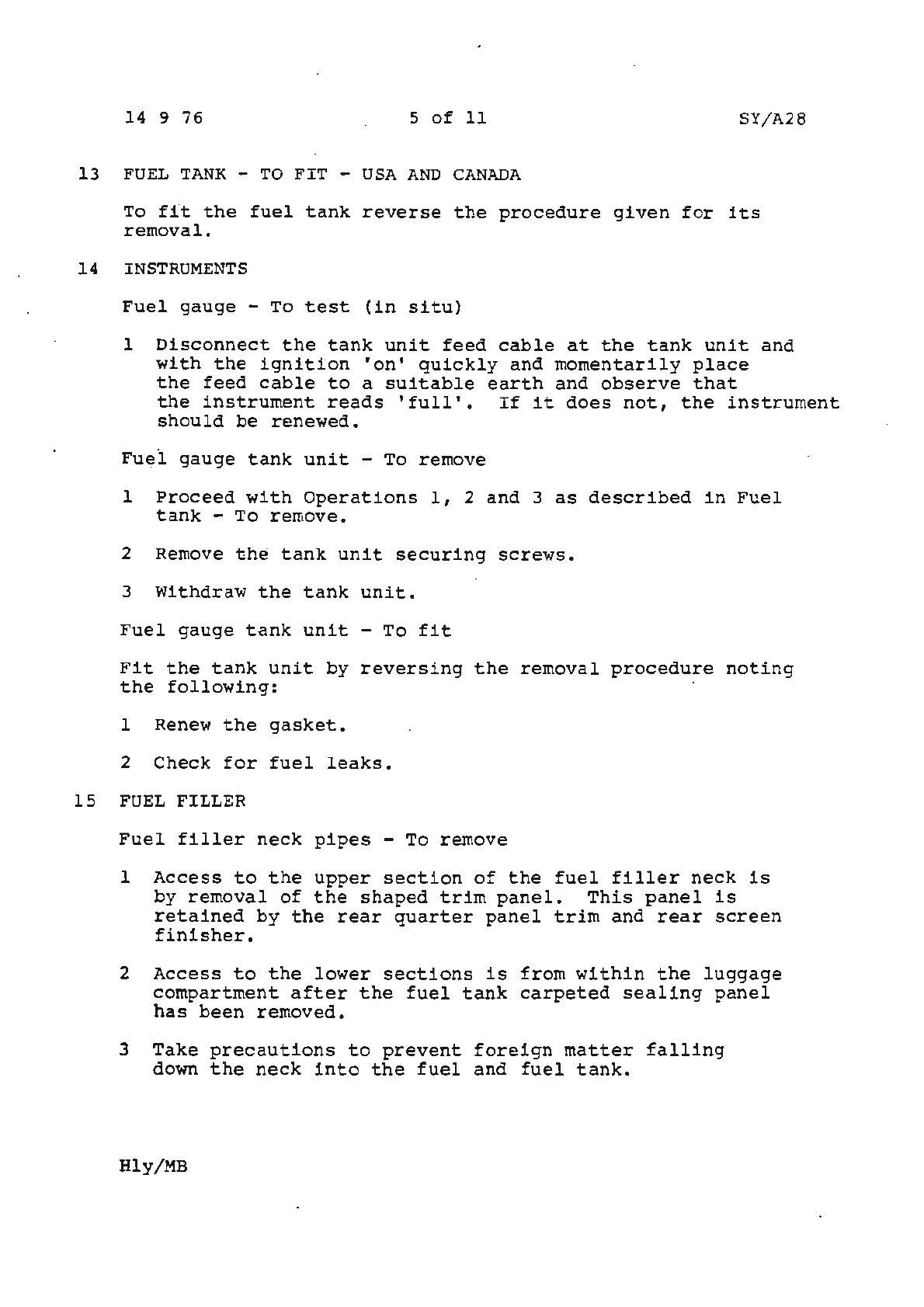

14 9 76 5 of 11
SY/A28
13 FUEL TANK - TO FIT - USA AND CANADA
To fit the fuel tank reverse the procedure given for its
removal.
14 INSTRUMENTS
Fuel gauge - To test (in situ}
1 Disconnect the tank unit feed cable at the tank unit and
with the ignition 'on' quickly and momentarily place
the · feed cable to a suitable earth and observe that
th~ instrument reads 'full'. If it does not, the instrument
should be renewed.
Fuel gauge tank unit - To remove
l Proceed with Operations 1, 2 and 3 as described in Feel
tank - To remove.
2 Remove the tank unit securing screws.
3 Withdraw the tank unit.
Fuel gauge tank unit - To fit
Fit the tank unit by reversing the removal procedure noting
the following:
1 Renew the gasket.
2 Check for fuel leaks.
15 FUEL FILLER
Fuel filler neck pipes - To remove
1 Access to the upper section of the fuel filler neck is
by removal of the shaped trim panel. This panel is
retained by the rear quarter panel trim and rear screen
finisher.
2 Access to the lower sections is from within the luggage
compartment after the fuel tank carpeted sealing panel
has been removed.
3 Take precautions to prevent foreign matter falling
down the neck into the fuel and fuel tank.
Hly/MB
