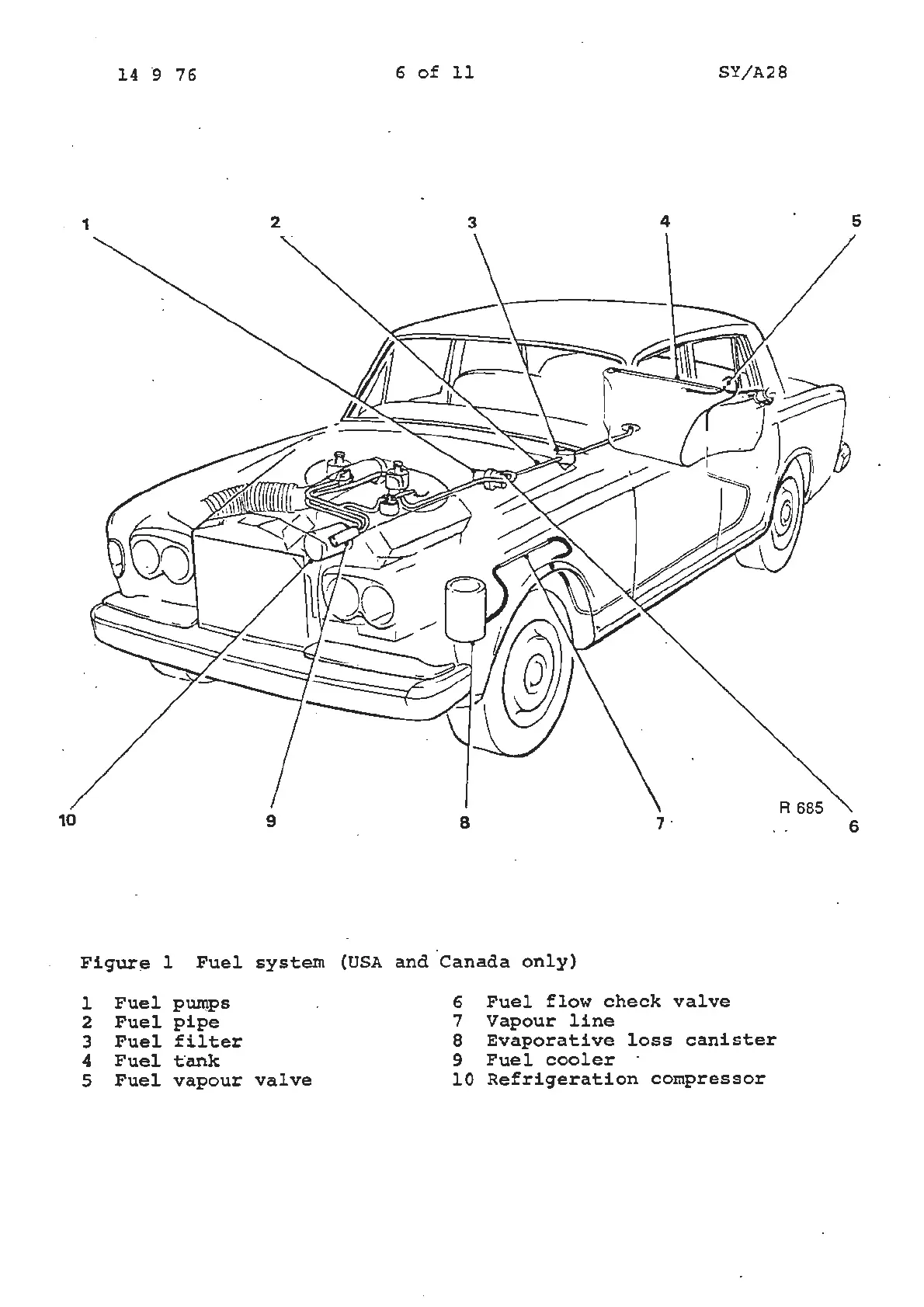

Figur~ 1
Fuel system
(USA and Canada
only)
l
Fuel pumps 6
Fuel flow check valve
2
Fuel pipe
7
Vapour line
3
Fuel filter 8
Evaporative loss canister
4
Fuel t·ank
9
Fuel cooler
5
Fuel vapour valve
10
Refrigeration compressor
