· 14 9 76
7 of 11
SY/A28
1
2
3
4
10
. 9
8
1

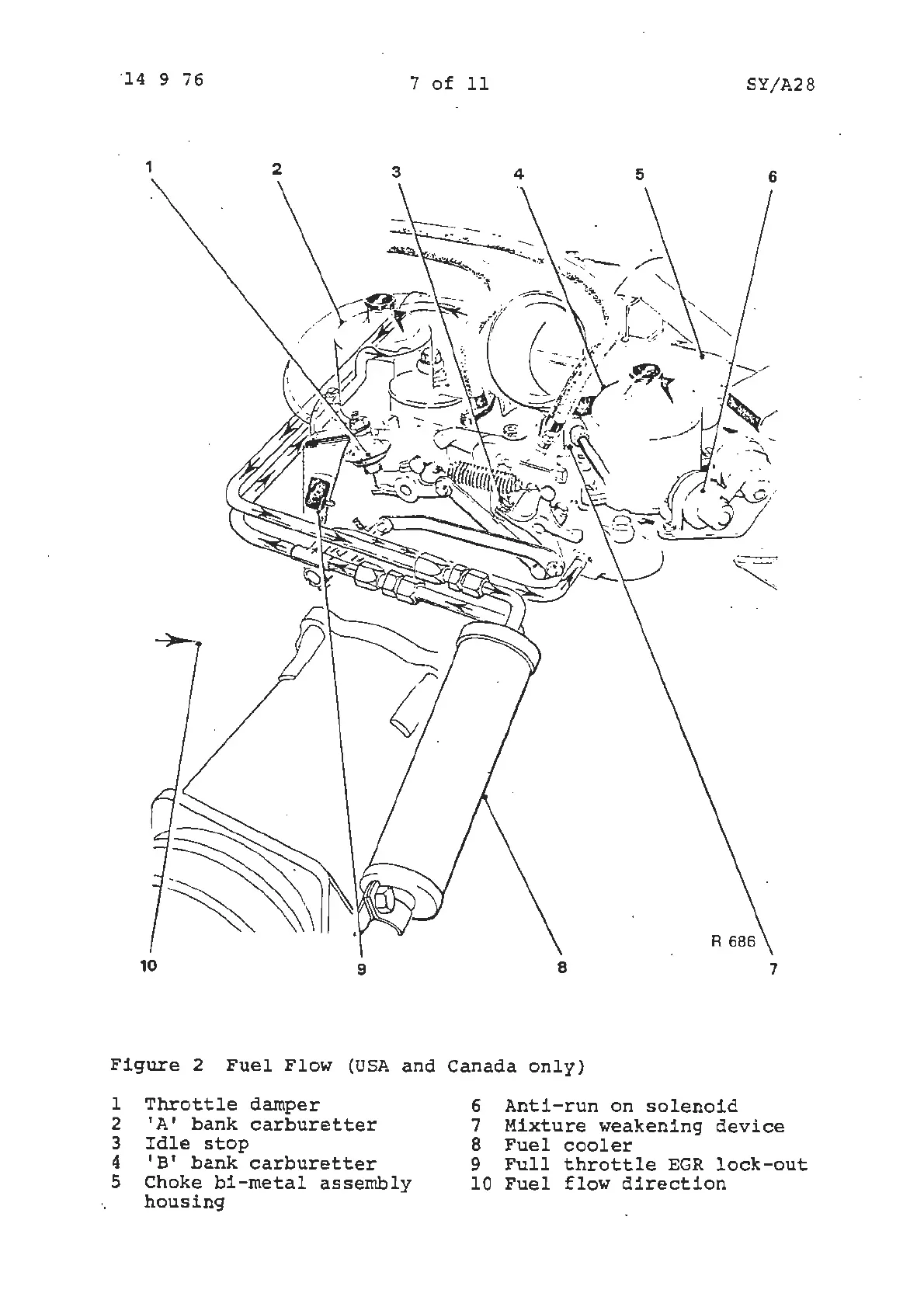

Figure 2 Fuel Flow (USA and Canada only}
1 Throttle damper
2 'A' bank carburetter
3 Idle stop
4 'B' bank carburetter
5 Choke bi-metal assembly
housing
6 Anti-run on solenoid
7 Mixture weakening device
8 Fuel cooler
9 Full throttle EGR lock-out
10 Fuel flow direction
