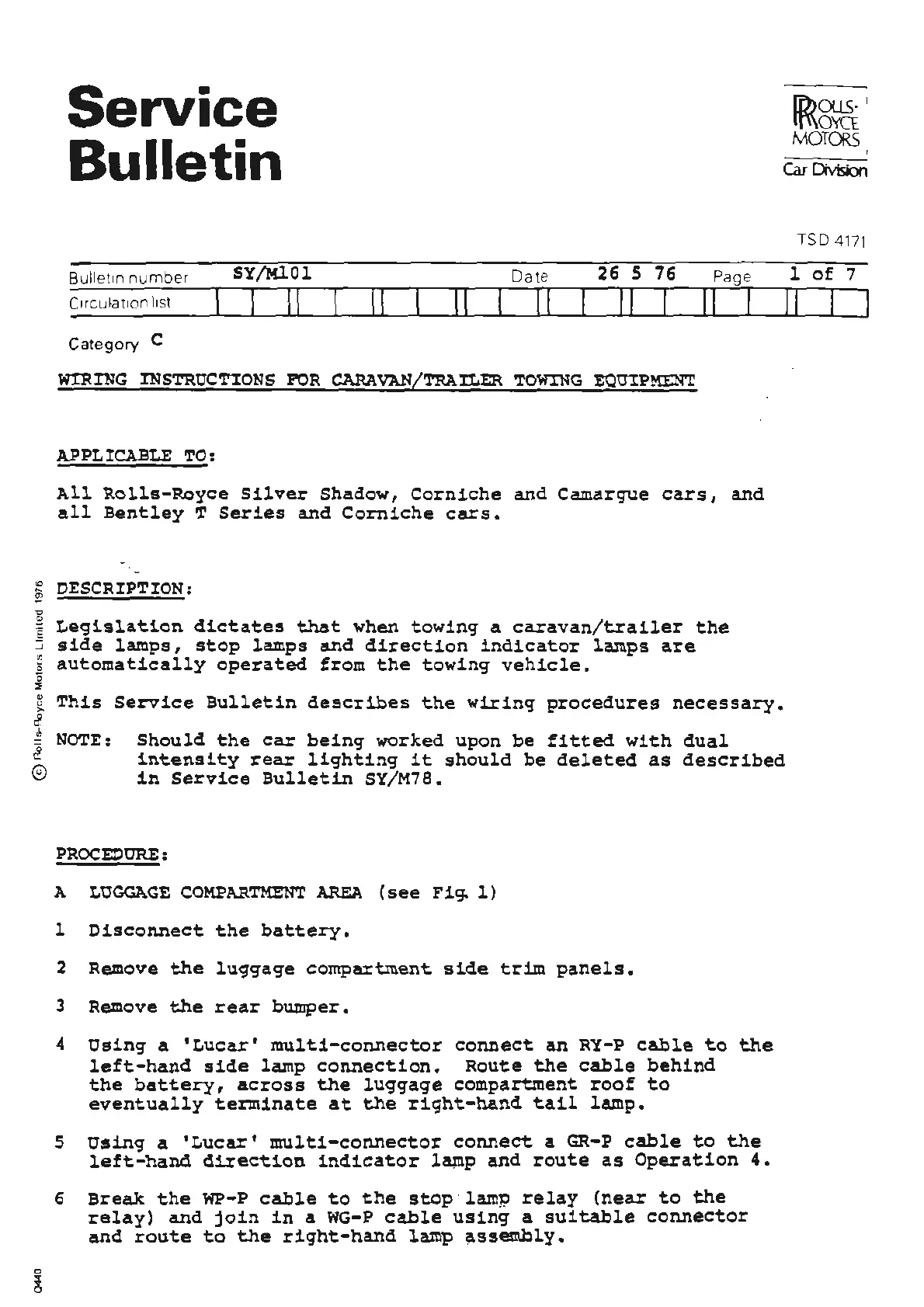

WIRING INSTRUCttONS FOR CARAVAN/TRAILER TOWING EQUIPMENT
APPLICABLE TO:
Page
II I
All Rolls-Royce Silver Shadow, Corniche and Camargue cars, and
all Bentley T Series and Corniche cars.
:e DESCRIPTION:
!!?
..,
] Legislation dictates that when towing a caravan/trailer the
~ side lamps, stop lamps and direction indicator lamps are
5 automatically operated from the towi ng ve h icle .
~
(E)) Ol.15 I
I
rf\\ OYCT I
MOTORS I
Car Dtvision
TSD 417 1
l of 7
II
[ This Service Bulletin describes the wiring procedures necessary.
,£
i NOTE:
Should the car being worked upon be fitted with dual
intensity rear lighting it should be deleted as described
in Service Bulletin SY/M78.
©
PROCEOURE:
A LUGGAGE COMPARTMENT AREA { see Fig. 1)
l Disconnect the battery.
2 Remove the luggage compartment side trim panels.
3 Remove the rear bumper.
4 Using a 'Lucar' multi-connector connect an RY-P cable to the
left-hand side lamp connection. Route the cable behind
the battery, across the luggage compartment roof to
eventually terminate at the right-hand tail lamp.
5 Using a 'Luca.r' multi-connector connect a GR-P cable to the
left-hand direction indicator la+np and route as Operation 4.
6 Break the WP-P cable to the stop · lamp relay (near to the
relay) and join in a WG-P cable using a suitable connector
and route to the right-hand lamp ~sseml,ly.
