54
Folding goes as follows:
a. Before you fold the frame, the bag should be emptied.
b. Remove the transport chair package if it is placed on the rollator. Read
Disengaging the transport chair package for instructions.
c. Pull the seat cushion away, turn it 90 degrees and place it crosswise on the
side of the red handle (Figure 10).
d. Push the red release handle under the seat (Figure 11A) and lift the
seat partially (Figure 11B).
e. Push the sides of the frame towards each other till the rollator is completely
folded (Figure 11C).

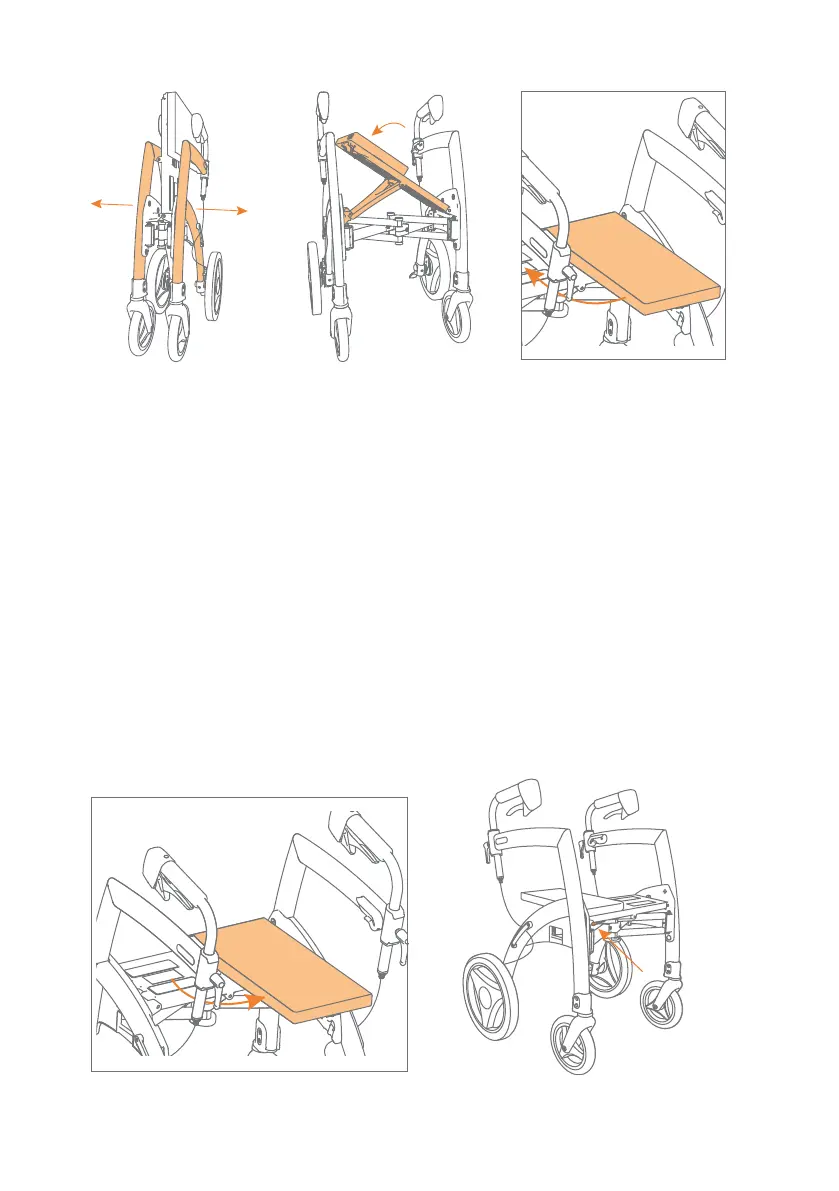

Figure 7: Unfold by pulling
the frame outwards.
Figure 8: Push the seat down
till you hear a click.
Figure 9: Pull away the
cushion and attach it on the
seat.
Figure 10: Place the seat cushion crosswise. Figure 11A: Push the red handle
while lifting the seat.
