Romina 8501 - Daybed Assembly Step C

6
8
STEP C
Using a Phillips screwdriver (not supplied) or just the hand, insert two dowels (8) into the metallic inserts holes found into each leg’s top (please see the
assembly tip for dowel correct positioning).
Insert two cam fittings (9) into the bigger holes found into the wooden blocks (WB), taking care that the little arrow of the cam is pointing downwards, to the
drilled face of the wooden block (see FIGURE C for details).
Using the factory installed wooden dowels, align the wooden blocks and attach them to the legs.
Then using the supplied Allen wrench (1) and moderate force, slightly rotate every cam fitting (9) clockwise (see the cam’s rounded arrow) by about 90 deg
to 120 deg until become tight. Don’t over-tight the cams! This is not a fixture involved in your child safety.
Take the supplied wooden (WR) rail and attach it to your footboard using a Phillips screwdriver (not supplied) and three wood screws (12).

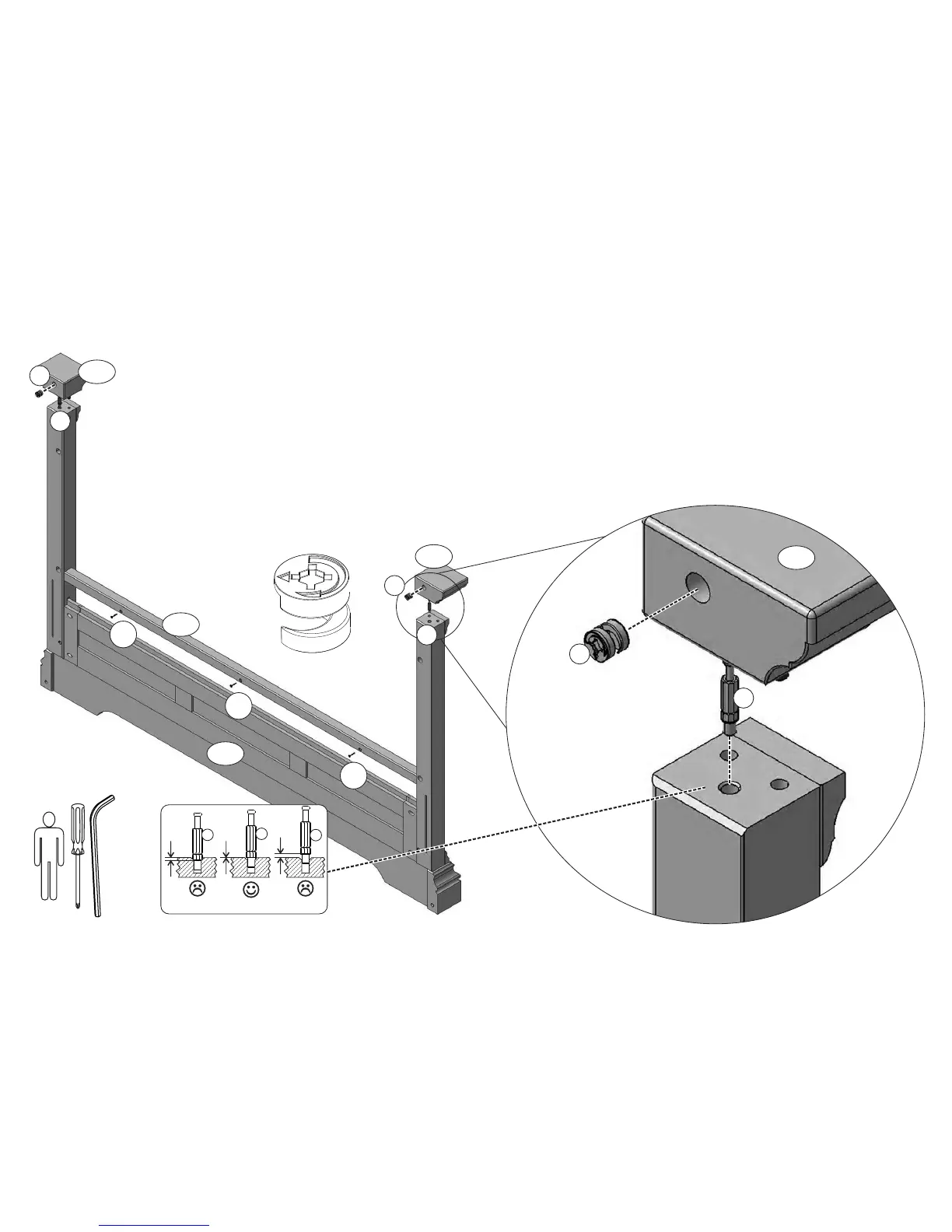

FIGURE C
6
8
WB
WB
WR
12
12
12
8
6
WB
REQUIRED
FB
0
+
-
8
8
8
assembly tip
little
arrow
r
o
u
n
d
e
d
a
r
r
o
w
