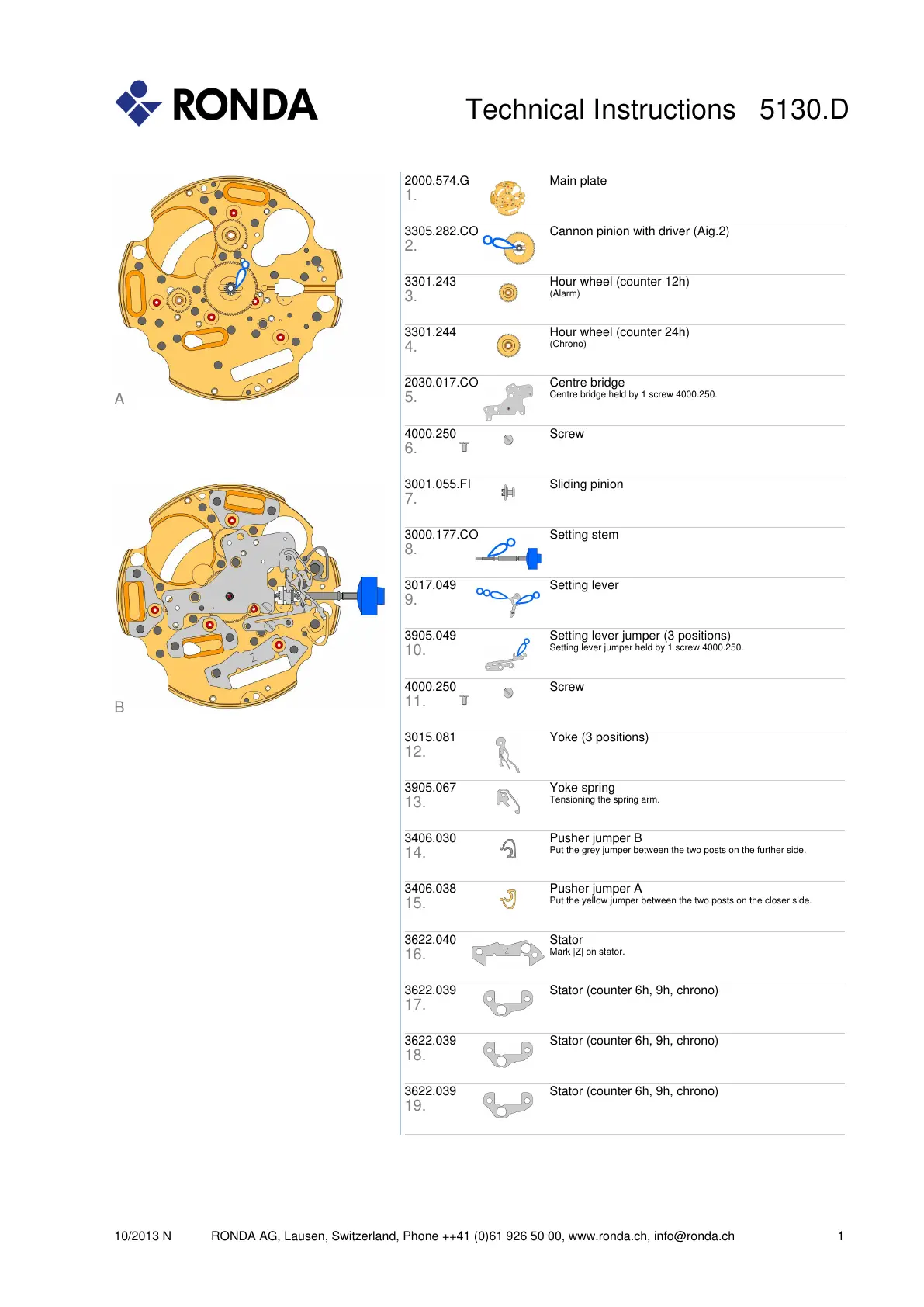

Technical Instructions 5130.D
10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch 1
2000.574.G Main plate
1.
3305.282.CO Cannon pinion with driver (Aig.2)
2.
3301.243 Hour wheel (counter 12h)
3.
(Alarm)
3301.244 Hour wheel (counter 24h)
4.
(Chrono)
2030.017.CO Centre bridge
5.
Centre bridge held by 1 screw 4000.250.
4000.250 Screw
6.
3001.055.FI Sliding pinion
7.
3000.177.CO Setting stem
8.
3017.049 Setting lever
9.
3905.049 Setting lever jumper (3 positions)
10.
Setting lever jumper held by 1 screw 4000.250.
4000.250 Screw
11.
3015.081 Yoke (3 positions)
12.
3905.067 Yoke spring
13.
Tensioning the spring arm.
3406.030 Pusher jumper B
14.
Put the grey jumper between the two posts on the further side.
3406.038 Pusher jumper A
15.
Put the yellow jumper between the two posts on the closer side.
3622.040 Stator
16.
Mark |Z| on stator.
3622.039 Stator (counter 6h, 9h, chrono)
17.
3622.039 Stator (counter 6h, 9h, chrono)
18.
3622.039 Stator (counter 6h, 9h, chrono)
19.
A
B
