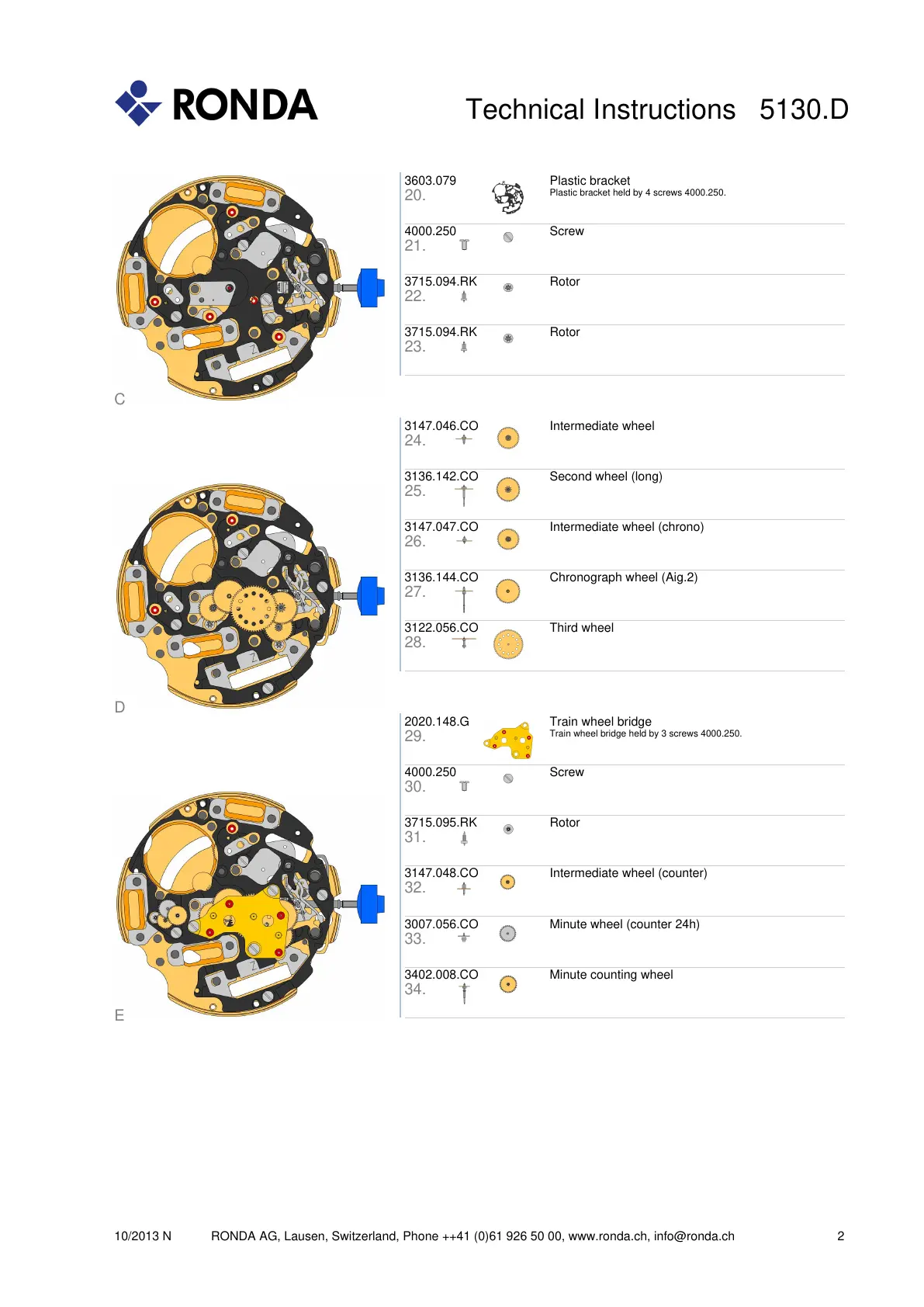

3603.079 Plastic bracket
20.
Plastic bracket held by 4 screws 4000.250.
4000.250 Screw
21.
3715.094.RK Rotor
22.
3715.094.RK Rotor
23.
3147.046.CO Intermediate wheel
24.
3136.142.CO Second wheel (long)
25.
3147.047.CO Intermediate wheel (chrono)
26.
3136.144.CO Chronograph wheel (Aig.2)
27.
3122.056.CO Third wheel
28.
2020.148.G Train wheel bridge
29.
Train wheel bridge held by 3 screws 4000.250.
4000.250 Screw
30.
3715.095.RK Rotor
31.
3147.048.CO Intermediate wheel (counter)
32.
3007.056.CO Minute wheel (counter 24h)
33.
3402.008.CO Minute counting wheel
34.
C
D
E
