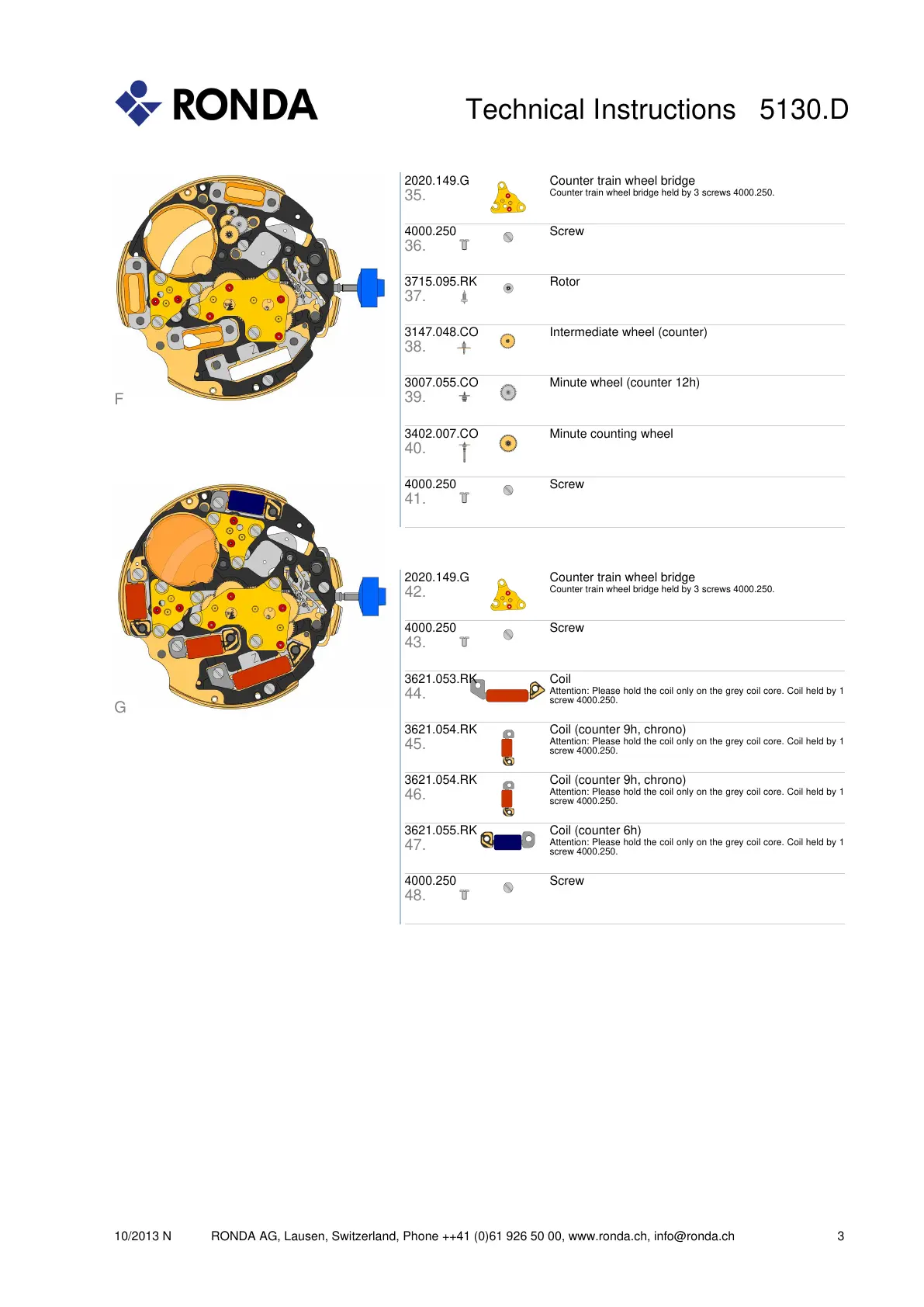

Technical Instructions 5130.D
10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch 3
2020.149.G Counter train wheel bridge
35.
Counter train wheel bridge held by 3 screws 4000.250.
4000.250 Screw
36.
3715.095.RK Rotor
37.
3147.048.CO Intermediate wheel (counter)
38.
3007.055.CO Minute wheel (counter 12h)
39.
3402.007.CO Minute counting wheel
40.
4000.250 Screw
41.
2020.149.G Counter train wheel bridge
42.
Counter train wheel bridge held by 3 screws 4000.250.
4000.250 Screw
43.
3621.053.RK Coil
44.
Attention: Please hold the coil only on the grey coil core. Coil held by 1
screw 4000.250.
3621.054.RK Coil (counter 9h, chrono)
45.
Attention: Please hold the coil only on the grey coil core. Coil held by 1
screw 4000.250.
3621.054.RK Coil (counter 9h, chrono)
46.
Attention: Please hold the coil only on the grey coil core. Coil held by 1
screw 4000.250.
3621.055.RK Coil (counter 6h)
47.
Attention: Please hold the coil only on the grey coil core. Coil held by 1
screw 4000.250.
4000.250 Screw
48.
F
G
