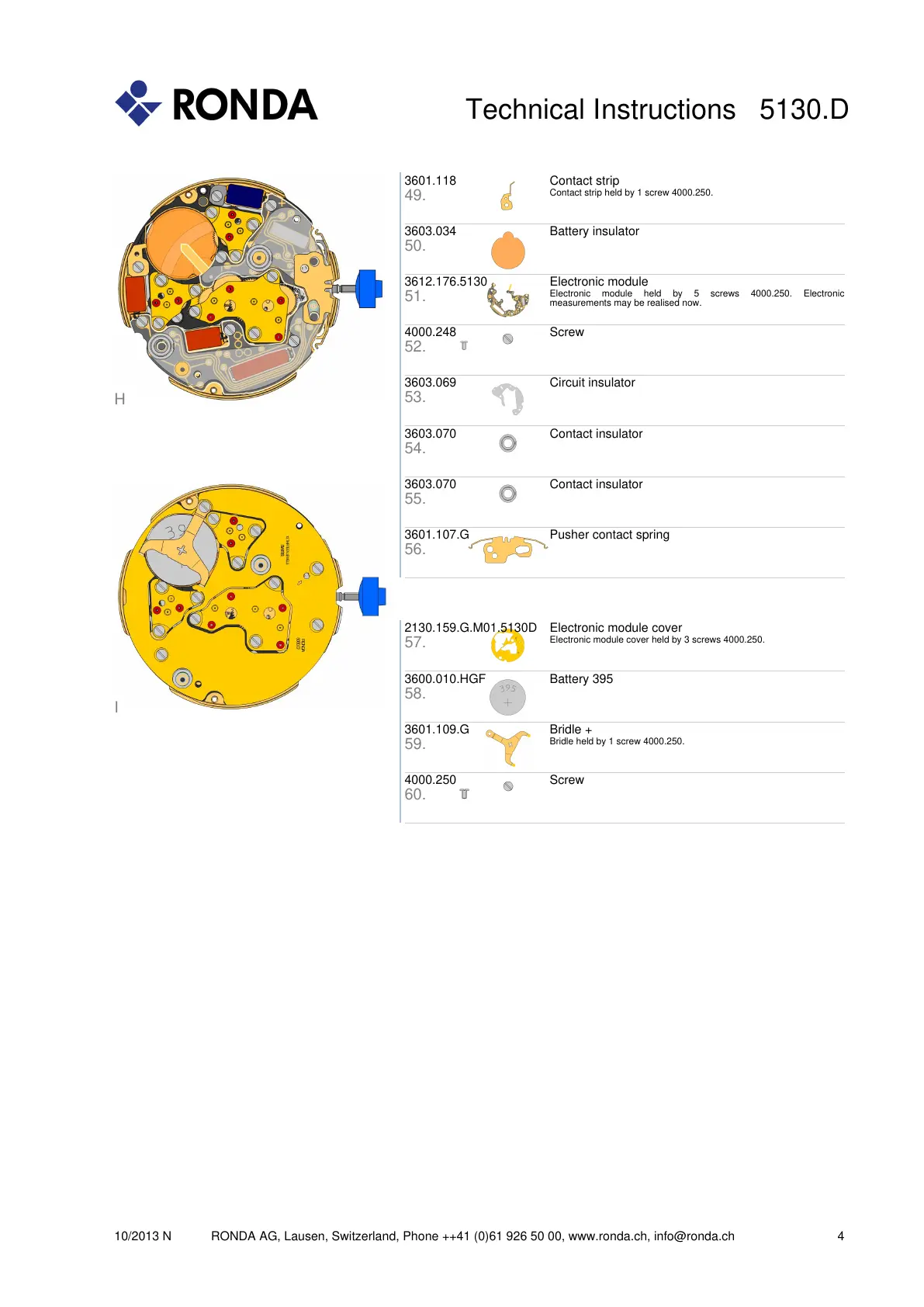

Technical Instructions 5130.D
10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch 4
3601.118 Contact strip
49.
Contact strip held by 1 screw 4000.250.
3603.034 Battery insulator
50.
3612.176.5130 Electronic module
51.
Electronic module held by 5 screws 4000.250. Electronic
measurements may be realised now.
4000.248 Screw
52.
3603.069 Circuit insulator
53.
3603.070 Contact insulator
54.
3603.070 Contact insulator
55.
3601.107.G Pusher contact spring
56.
2130.159.G.M01.5130D Electronic module cover
57.
Electronic module cover held by 3 screws 4000.250.
3600.010.HGF Battery 395
58.
3601.109.G Bridle +
59.
Bridle held by 1 screw 4000.250.
4000.250 Screw
60.
H
I
