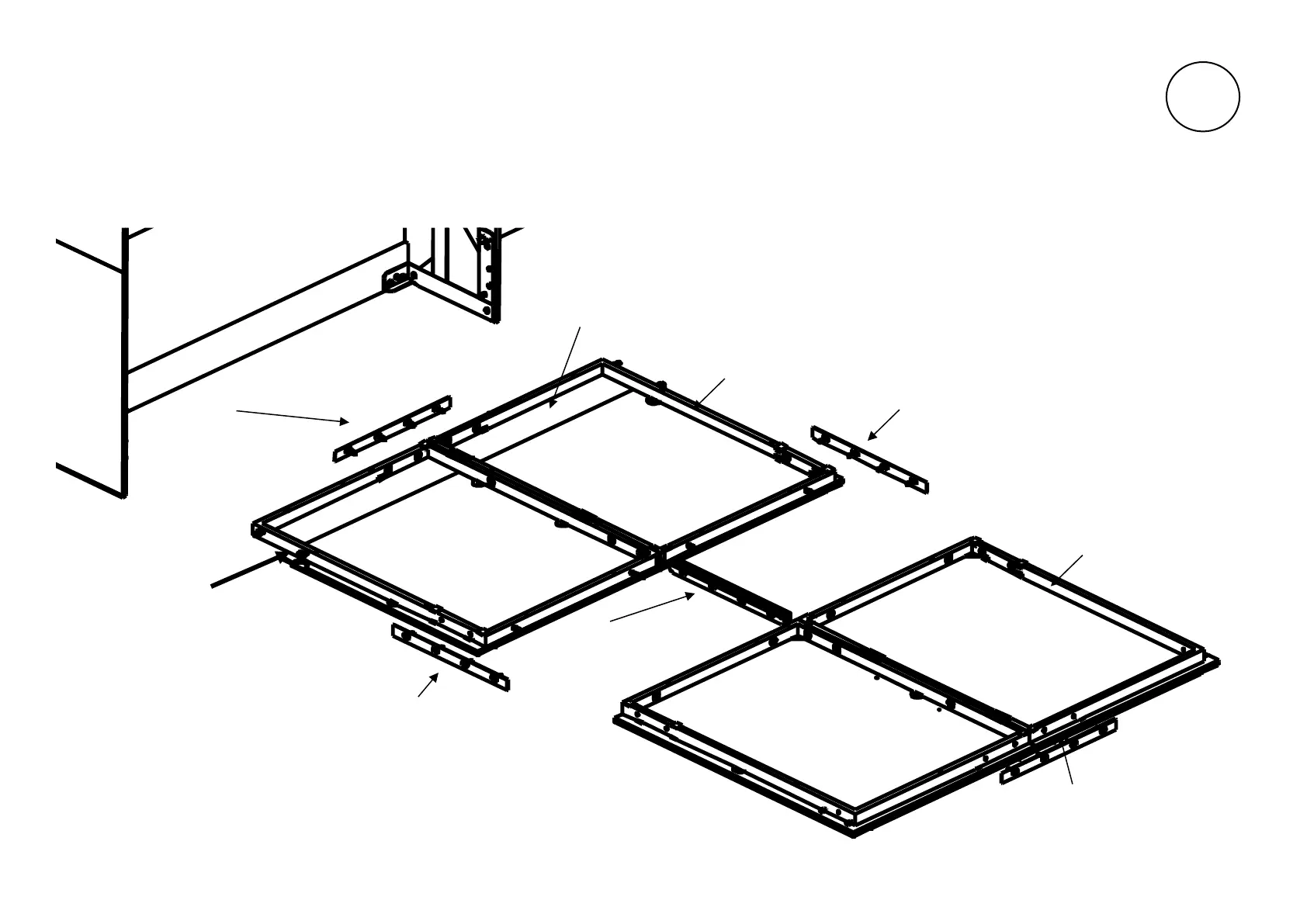

Setting up the Bed Tray
BT
BOTTOM TRAY
TT
TOP TRAY
K152
Side connector bar
K153
2 Bayonet connect bar
K152
Side connector bar
K152
Side connector bar
K152
Side connector bar
Make sure the
Bearing Post is
positioned
toward the Bed
Case
Place open area of BT tray
toward the Bed Case.
FROM BOX #3
FROM BOX #4
Open boxes #3 and #4 and lay out the contents as shown below with the wood face of the bed tray face-down on the carpet/blankets/etc., that will protect it.
Pay find and lay out the K153 Bayonet Connectors and the K152 Side Connector Bars that you will find distributed in the two boxes.
12
HARDWARE BOX #3 & BUBBLE-PACK #3
CONTENTS SHOWN ON PAGE 27
HARDWARE BOX #4 & BUBBLE-PACK #4
CONTENTS SHOWN ON PAGE 28
