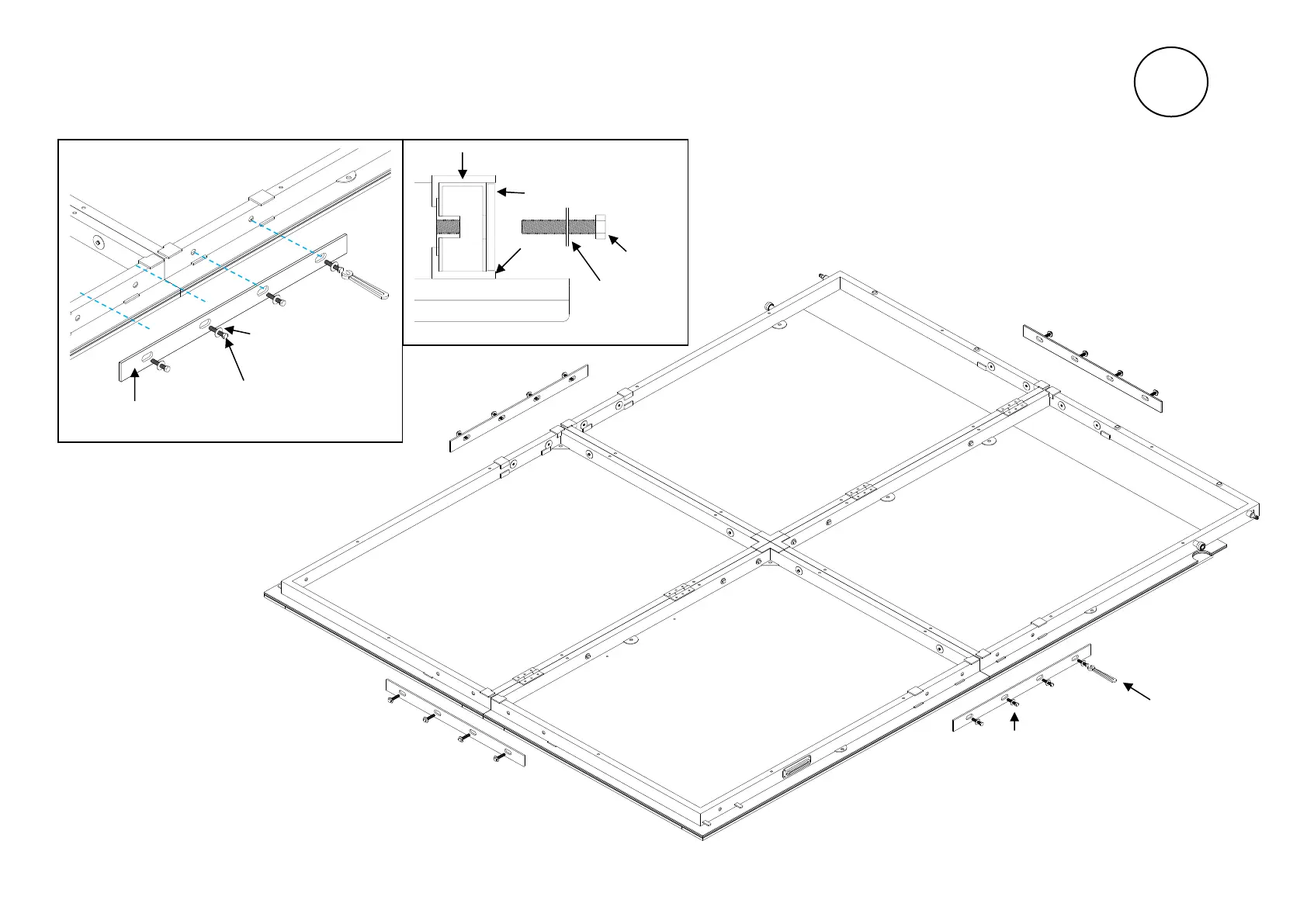

Connect 4 K152

connector bar

as shown

K105B bolt

K106 washer

K152 connector bar

Wood

face

K161B

wrench

Upper capture

Lower

capture

Make sure bar is fully

between all 4 upper and

lower captures

Step 3: One-at-a-time, position the 4 K152 support bars – making sure they are nestled between all 4 upper and lower captures - and install

with 4 bolts and 4 washers each, and tight fully.

K105B bolt

K106 washer

K152 connector bar
