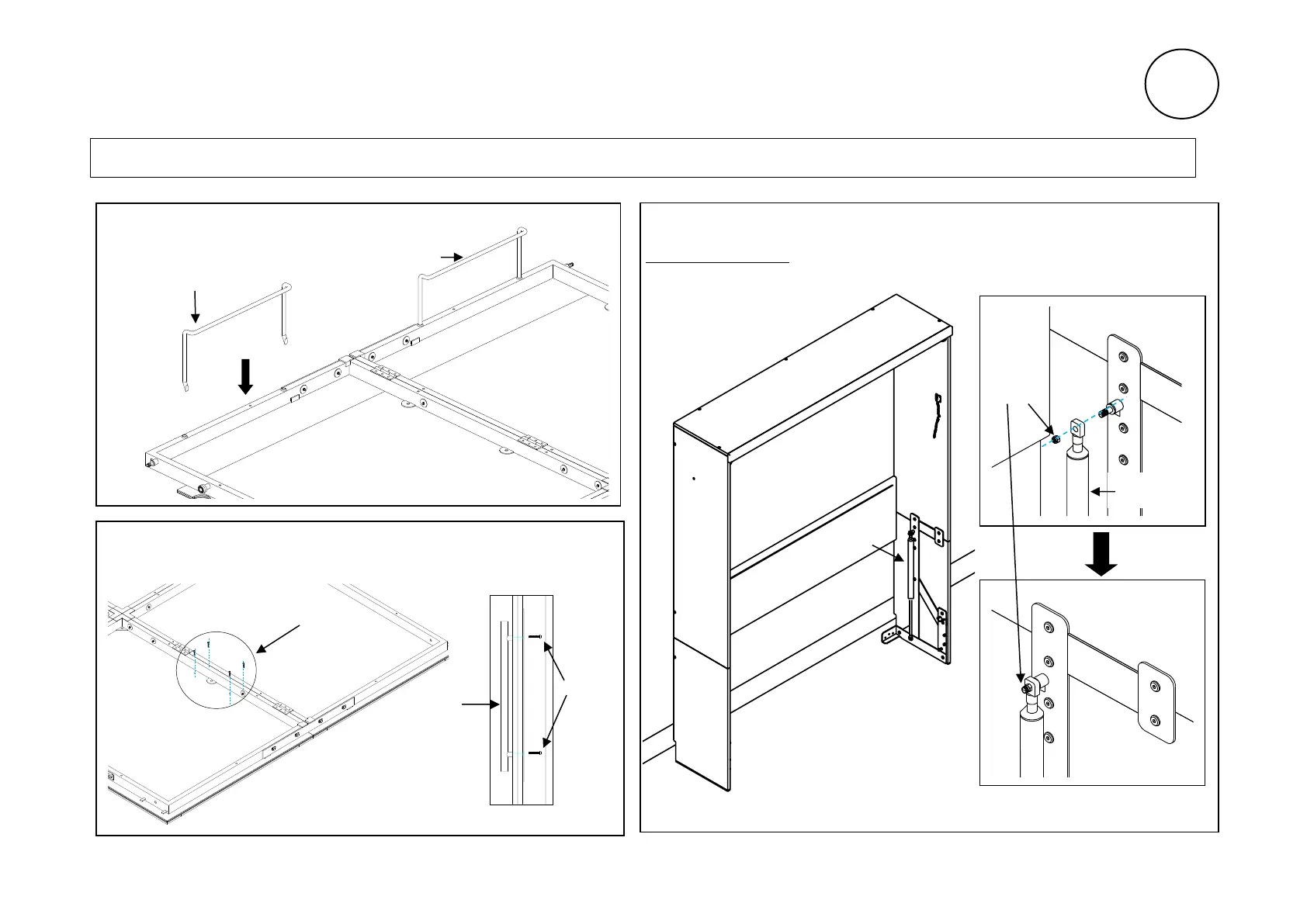

STEP 1: INSTALL MATTRESS HOOPS INTO THE PROVIDED HOLES
This edge toward
the mattress
STEP 2: ATTACH A GAS SPRING AS SHOWN TO EACH SIDE USING K143 LOCK NUT.
HAND TIGHTEN ONLY - YOU WILL TIGHTEN FULLY LATER.
Installing Mattress Hoops and Gas Springs
17
HELPFUL HINT: The mattress hoops are found in the Hardware package inside Box #3
K143
Lock Nut
Gas spring
Gas Spring
STEP 2:
Install the handles and screws from Hardware box 4 through the
pre-drilled holes on the wooden tray faces.
