K160
Allen wrench
K110
bolt
K111
nut
TOP PANEL
TOP BACK PANEL

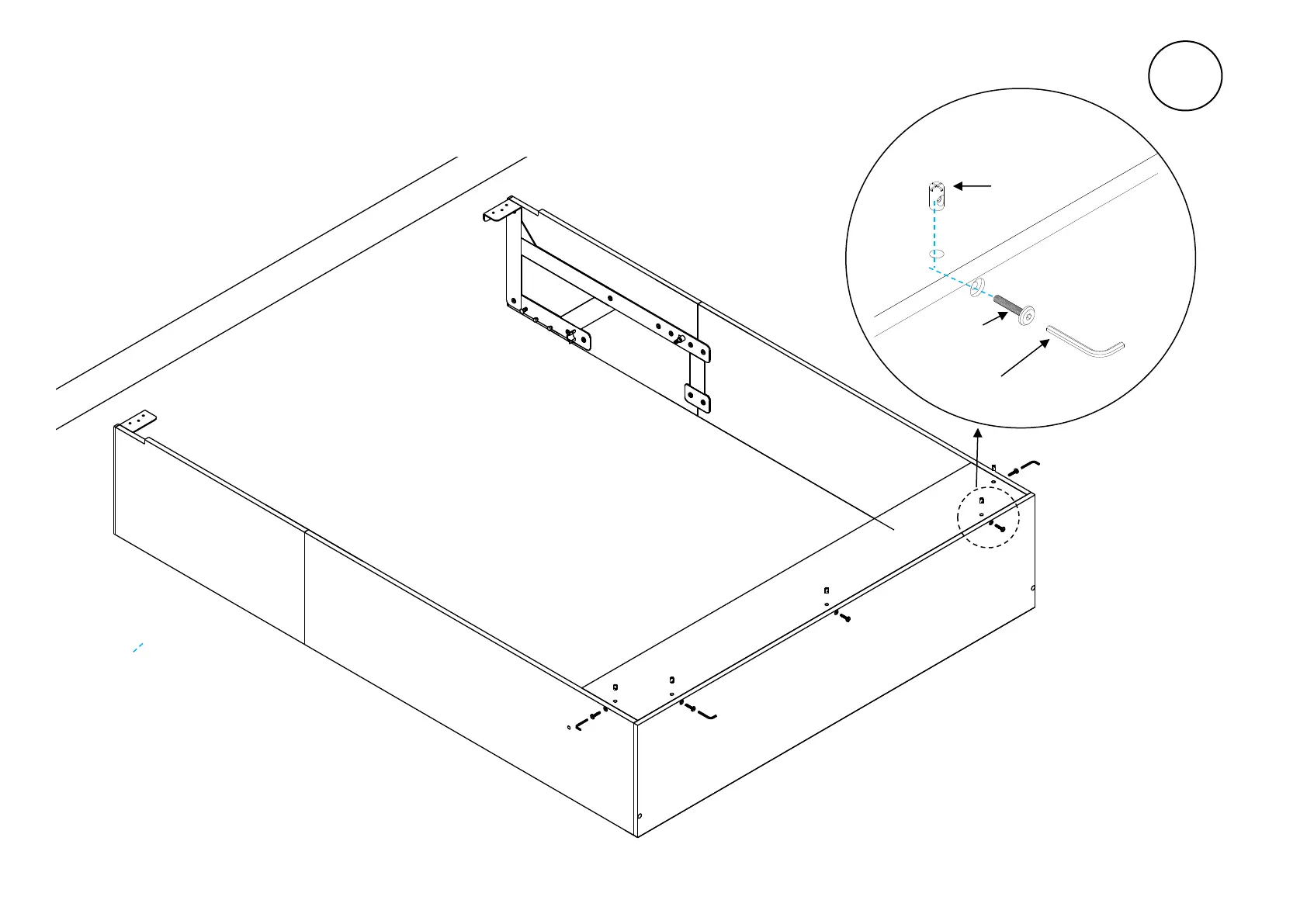

Step 2: Position the top-back panel and connect with K110 bolts and K111 barrel nuts as shown.
6
TOP PANEL
TOP BACK
PANEL
