- 05 -

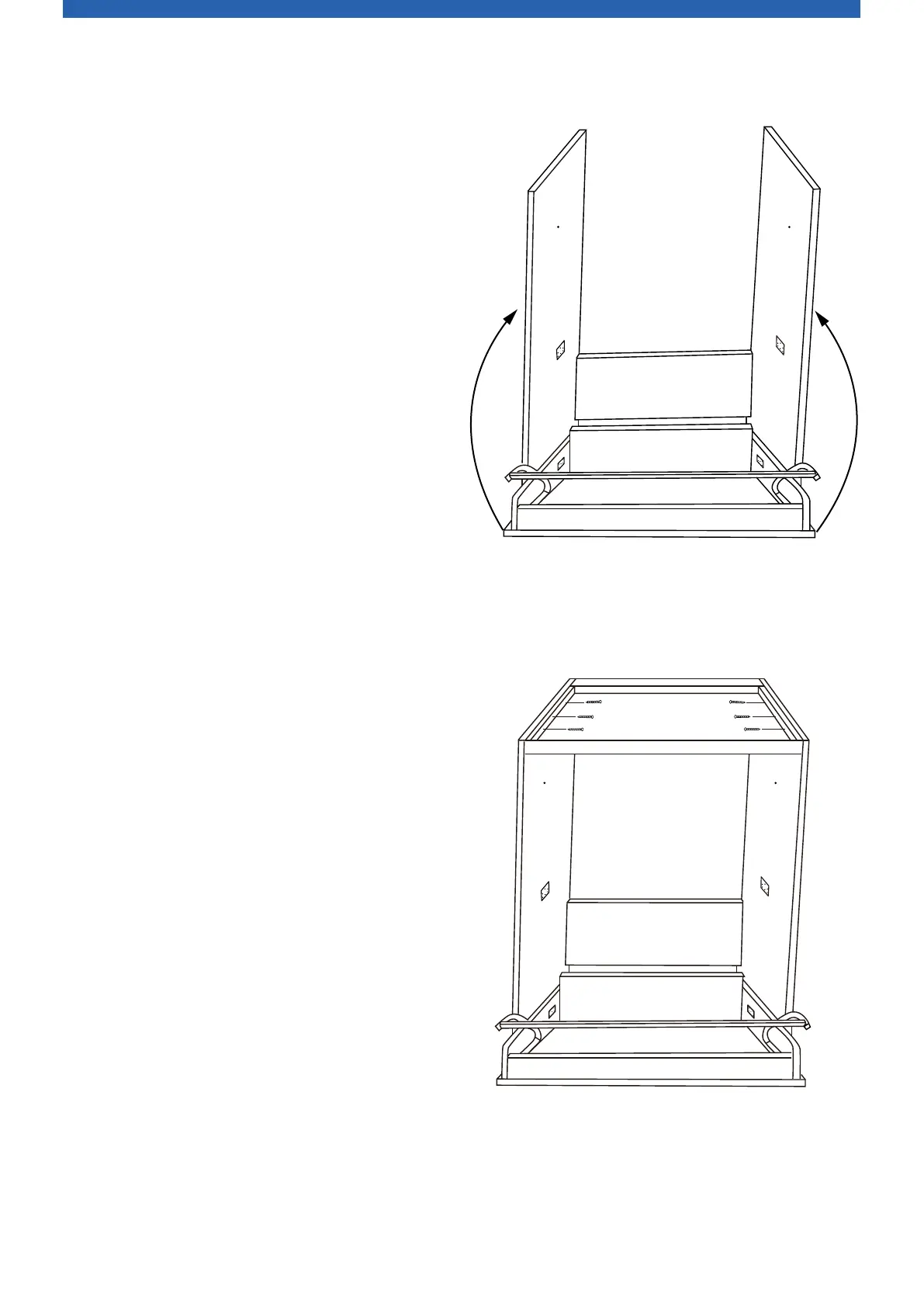

With the bed face panel remaining
face-down on padding, and legs in the
closed position slowly and carefully rotate
the cabinet verticals & the headboard
assembly into its upright position.
Step 9:
NOTE: Clamps may be very
helpful to hold the bed header
between the bed verticals.
Place the header between the bed verticals,
making sure the nailed rail is in front, and the
screwed rail is in the rear. Be sure top front and
top rear of the header is FLUSH with the top
front and top rear of the bed verticals. Using #8
x 1-1/4 inch screws, drill and screw through
mounting cleats into the bed verticals, three (3)
on each side.
Step 10:
NOTE: To prevent damage to the
legs be sure they are in the closed
position when rotating the bed into
the upright position.
