Rear Rail
Mounting cleat
Mounting cleat
Front Rail
Header board
Note: Rear rail must be glued and screwed to header board.
- 27 -
1/2
Side view
1/2
1/2

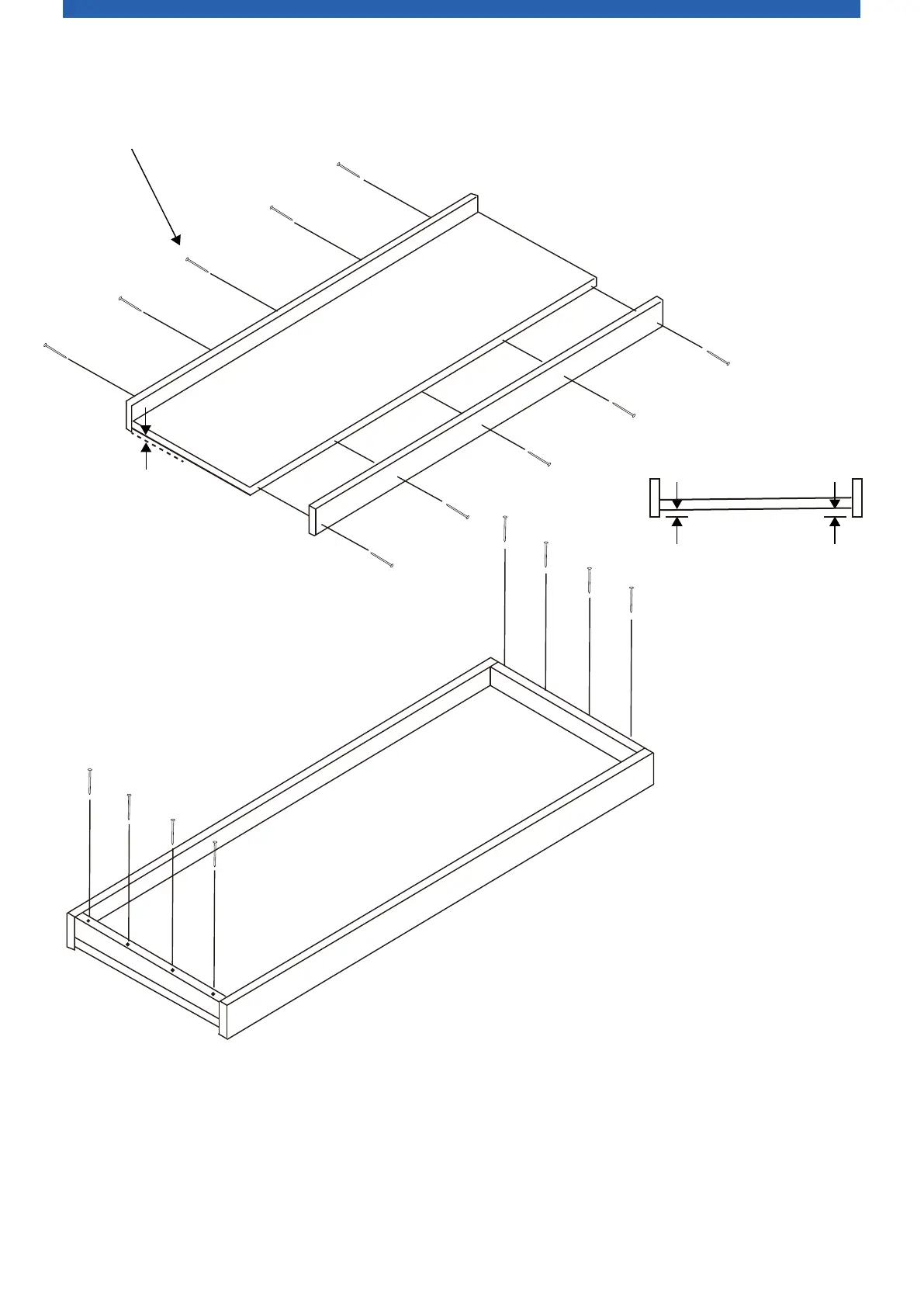

Using #8 x 2" screws,glue and screw rear rail to header board,maintaining
a 1/2" lip on the underside of the header board.
Step 29:
Using 2" finish nails, glue and
nail front rail to header board,
maintaining a 1/2" lip on under-
side lip of header board.
Step 30:
NOTE:Be sure to drill pilot holes and counter-sink
screws flush with the wood.
Remove all Hardware, sand & finish all components!
Step 32:
Using #8 × 2" screws, glue and screw mounting
cleats to header board between front and rear rails as
shown.
Step 31:
To Next Page
