2.2.1 Wall mount
The simplest mounting arrangement is the wall mount.
If you specify Wall Mount on the sales order, Emerson will ship the gas chromatograph
(GC) with a wall mount installation kit. Four locations on the mounting ears are available
for support.
WARNING
HEAVY EQUIPMENT
Until all bolts are tight, ensure that the GC is supported to prevent unforeseen accidents.

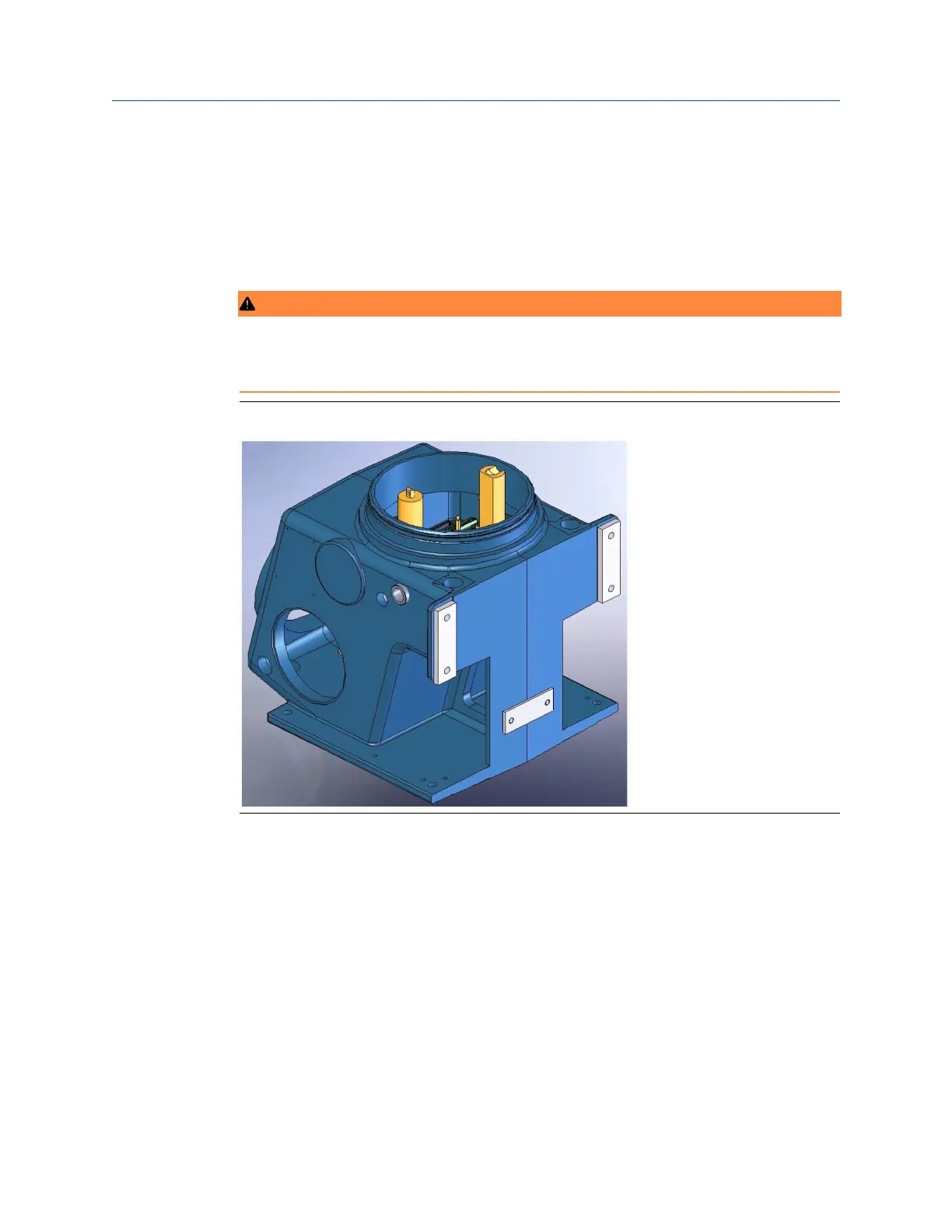

Figure 2-1: Wall Mount
Prerequisites
Pre-install a pair of 7/16-in. (10 mm) diameter bolts with washers on the wall before
installing the final pair of bolts.
The first pair of bolts should be approximately 41.625 in. (1055 mm) off the ground, and
13.625 in. (346 mm) apart. Each bolt should have ⅝ in. (16 mm) of bare length projecting.
Drill a second pair of holes 3.56 in. (90.5 mm) above the first.
Procedure
1. Maneuver the GC so that the notches in the mounting ears can be placed over the
bolts on the wall and then place the washers over the bolts.
2. Install the second pair of bolts with washers and then tighten all the bolts.
Quick Start Guide Installation and start-up
00825-0100-3770 July 2020
Rosemount 700XA 15
