The Rosen DA-7169 is a 7-inch wide 16:9 motorized in-dash monitor, designed for integration into a vehicle's entertainment system. This owner's and installation manual (Part # 9106-0000-004) provides comprehensive instructions for its setup, operation, and maintenance.

Function Description:

The DA-7169 serves as a display unit for various video and audio sources within a vehicle. It is designed to interface with other Rosen products, specifically the DA-2301 radio/TV tuner and the DVA-310x DVD/VCD/CD multi-disc player, to provide a complete in-car entertainment experience. The monitor features a motorized tray mechanism, allowing it to eject and retract from its DIN enclosure. It supports multiple video input sources (AV1, AV2) and a video output, making it versatile for different system configurations, including connection to a rear-view camera. The monitor also includes controls for adjusting display settings such as color, contrast, brightness, tint, and screen size (ZOOM, CINEMA, NORMAL, FULL). When connected to compatible Rosen units, it allows for control of radio stations, disc playback, and volume.

Important Technical Specifications:

Monitor Display System: 7 inches (18 cm) Active Matrix Color LCD Display, NTSC/PAL selectable.
Display Format: 112,320 pixels.
Resolution: 336,960 dots / 1,440 (W) x 234 (H) dots.
Aspect Ratio: 16:9.
Active Area: 155.5 mm (W) x 87.8 (H) mm.
Front Panel: Anti-glare glass.
Back Light: 10,000 hours normal operation.
Mechanism: Fully Motorized Open/Close.
Viewing Angle: Adjustable Up/Down; Off-axis Viewing Angle (<) 120°.
Master Control: Interfaces with TV/AM/FM (DA-2301) and CD/VCD/DVD (DVA-310x).
Source: Composite video input x 2; Composite video output x 1.
Operating Voltage: 12-Volt DC.
Operating Current: 1.5 Amp (Nominal).
Mounting: Single DIN/In-Dash mount.
Weight: 1.8 kg.
Dimensions: 17.8 cm (W) x 18.5 cm (D) x 5.0 cm (H).
Power Connections: Black (Ground), Red (ACC), Yellow (+12 V), Blue (+12 V Out Max 1 Amp).

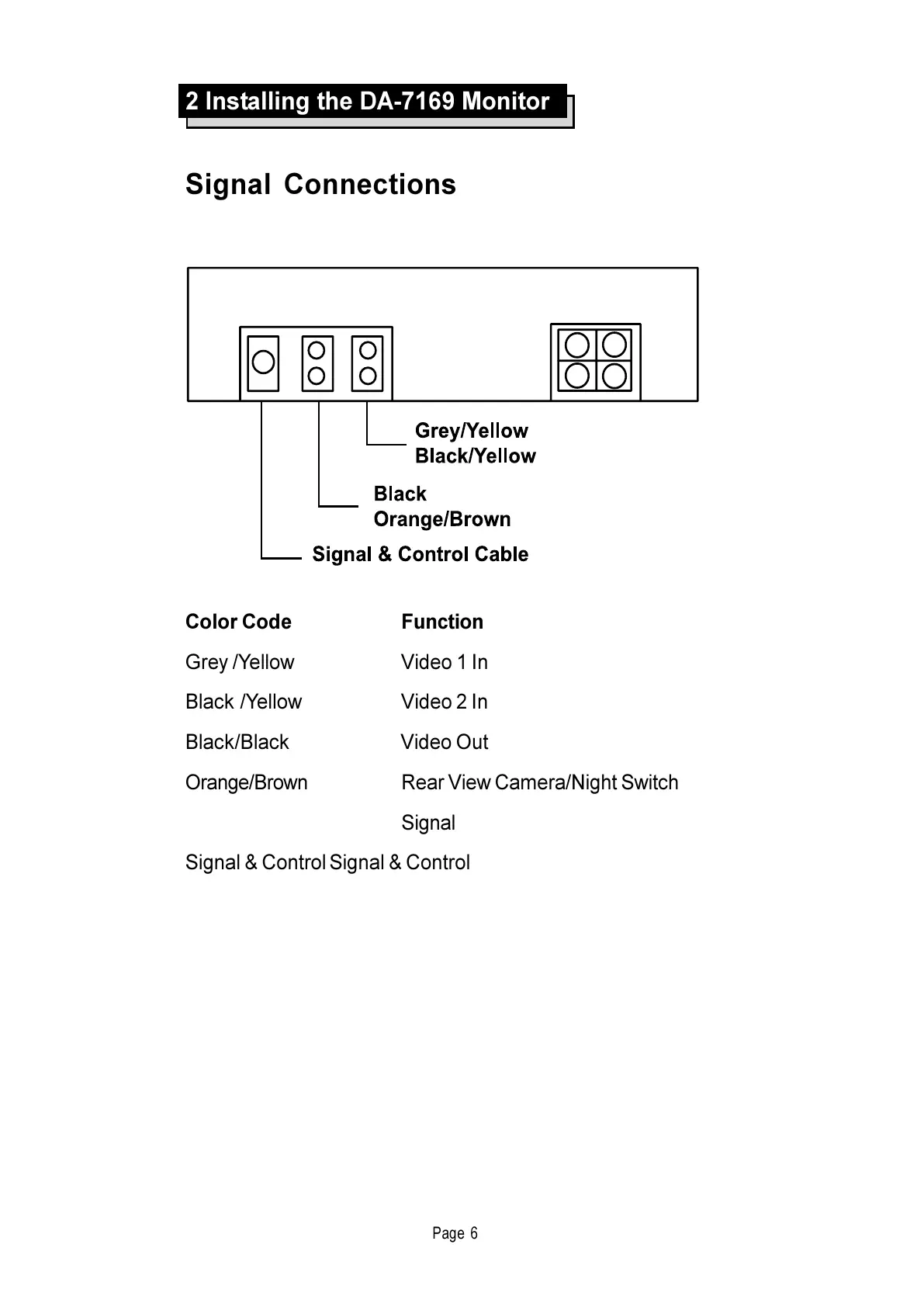

Signal Connections: Grey/Yellow (Video 1 In), Black/Yellow (Video 2 In), Black/Black (Video Out), Orange/Brown (Rear View Camera/Night Switch Signal).

Usage Features:

The DA-7169 offers a user-friendly interface with both front panel buttons and a remote control unit.

Front Panel Controls:
- MUTE (#1): Mutes audio (activated when connected to DA-2301).
- Remote Sensor (#2): Receives signals from the remote control.
- SRCE and CH / AV1 / AV2 (#3): Selects signal source (TV, AV1, AV2).
- DISC & PLAY / PAUSE (#4): Player select and Play/Pause for disc players.
- BAND & AM/FM (#5): Selects AM/FM radio (when interfaced with DA-2301).
- OPEN / CLOSE (#6): Ejects/retracts the monitor.
- DISC +/- (#7): Disc select.
- AUDIO (#8): Selects audio channel/language.
- REP (#9): Activates repeat function (OFF, CHAPTER, TITLE).
- Memory Location (1/2/3/4/5/6) (#7/8/9): Selects preprogrammed radio stations.
- Forward (>) (#10): Navigates forward, confirms selection.
- Up Volume Control (#11): Increases volume (when connected to DA-2301).
- Backward (<) (#12): Navigates backward, confirms selection.
- SEL (#13): Cycles through display adjustment options (COLOR, CONTRAST, BRIGHT, TINT, DIMMER, REV VID, RESET).
- Down Volume Control (#14): Decreases volume (when connected to DA-2301).
- ANGLE (#15): Adjusts the degree of tilt for the display.
- WIDE (#16): Changes display mode (ZOOM, CINEMA, NORMAL, FULL).
Remote Control Unit: Provides comprehensive control over all functions, including channel select, mode selection, menu access, power on/off, viewing angle adjustment, display mode, numeric keys for direct selection, memory location selection, audio mute, volume control, AM/FM selection, on-screen display on/off, play/pause, and channel quick seek.
Display Adjustment: Users can fine-tune color, contrast, brightness, and tint. The DIMMER function automatically adjusts screen brightness with vehicle headlights. REV VID (Reverse Video) automatically activates when a rear-view camera is connected.
Screen Size Selection: Four options are available: ZOOM (stretched vertically and horizontally), CINEMA (uniform horizontal enlargement), NORMAL (4:3 picture with black bands on a wide screen), and FULL (16:9 picture fully displayed).
NTSC or PAL Display System: Can be toggled using forward/backward keys when a video source is selected.
Safety Features: The unit is designed to activate only when the vehicle's handbrake is engaged. It includes precautions against short-circuiting and improper installation.

Maintenance Features:

Fuse Replacement: When replacing a blown fuse, disconnect all power supplies and power off the unit. Use the correct replacement fuse.
Cleaning: Use a soft, damp cloth (a lens cloth) to wipe dirt and fingerprints off the screen. Avoid chemical solvents, cleaning agents, or corrosive detergents, as they can cause irreparable damage.
Battery Replacement (Remote Control): Use a small coin to remove the battery container. Replace the old battery with a new one, ensuring the positive sign (+) faces upward. Insert the container securely. Replace batteries regularly (approximately every six months). Do not mix new and used batteries.
Storage and Environment: Install the unit in a dry location, away from condensation, direct sunlight, or hot air vents. The operating temperature range is 0°C to 60°C. If the vehicle's internal temperature is extremely high, cool down the interior before operating.
Troubleshooting: If the unit shows signs of overheating or malfunction, power it off and consult your dealer immediately. Do not open the unit, as there are no user-serviceable parts inside.
General Precautions: Avoid dropping metal or foreign objects between the display screen and enclosure to prevent electrical shorts or damage to the motorized tray. Do not drop the LCD display panel or subject it to direct impact. If the LCD panel breaks, avoid contact with broken glass or leaking fluids; flush affected areas with water and seek medical attention.

The DA-7169 is a sophisticated in-dash monitor designed for optimal performance and user convenience, with clear guidelines for safe installation and operation.
