3 Parts Overview

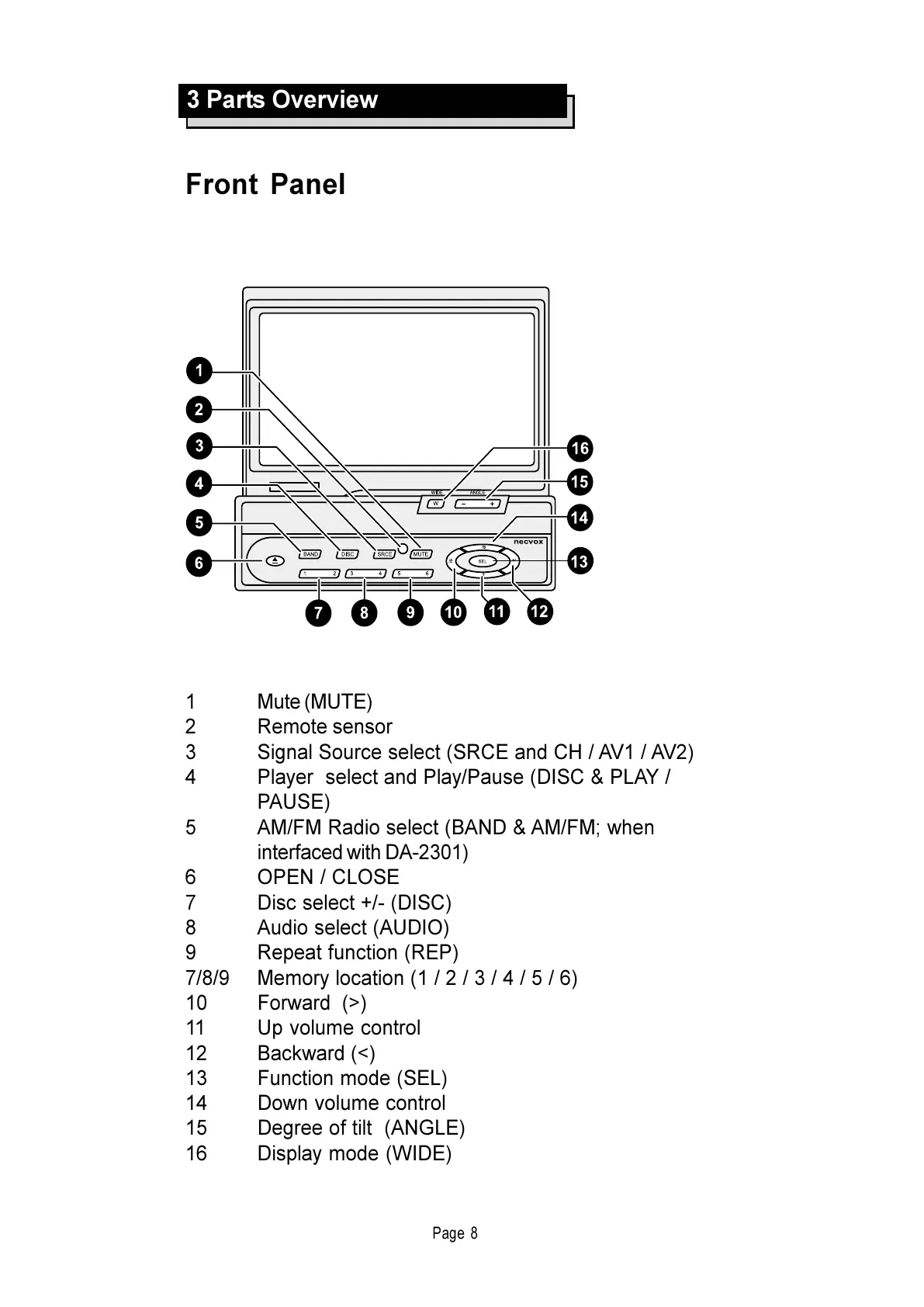

Front Panel
1 Mute (MUTE)
2 Remote sensor
3 Signal Source select (SRCE and CH / AV1 / AV2)
4 Player select and Play/Pause (DISC & PLAY /
PAUSE)
5 AM/FM Radio select (BAND & AM/FM; when
interfaced with DA-2301)
6 OPEN / CLOSE
7 Disc select +/- (DISC)
8 Audio select (AUDIO)
9 Repeat function (REP)
7/8/9 Memory location (1 / 2 / 3 / 4 / 5 / 6)
10 Forward (>)
11 Up volume control
12 Backward (<)
13 Function mode (SEL)
14 Down volume control
15 Degree of tilt (ANGLE)
16 Display mode (WIDE)
