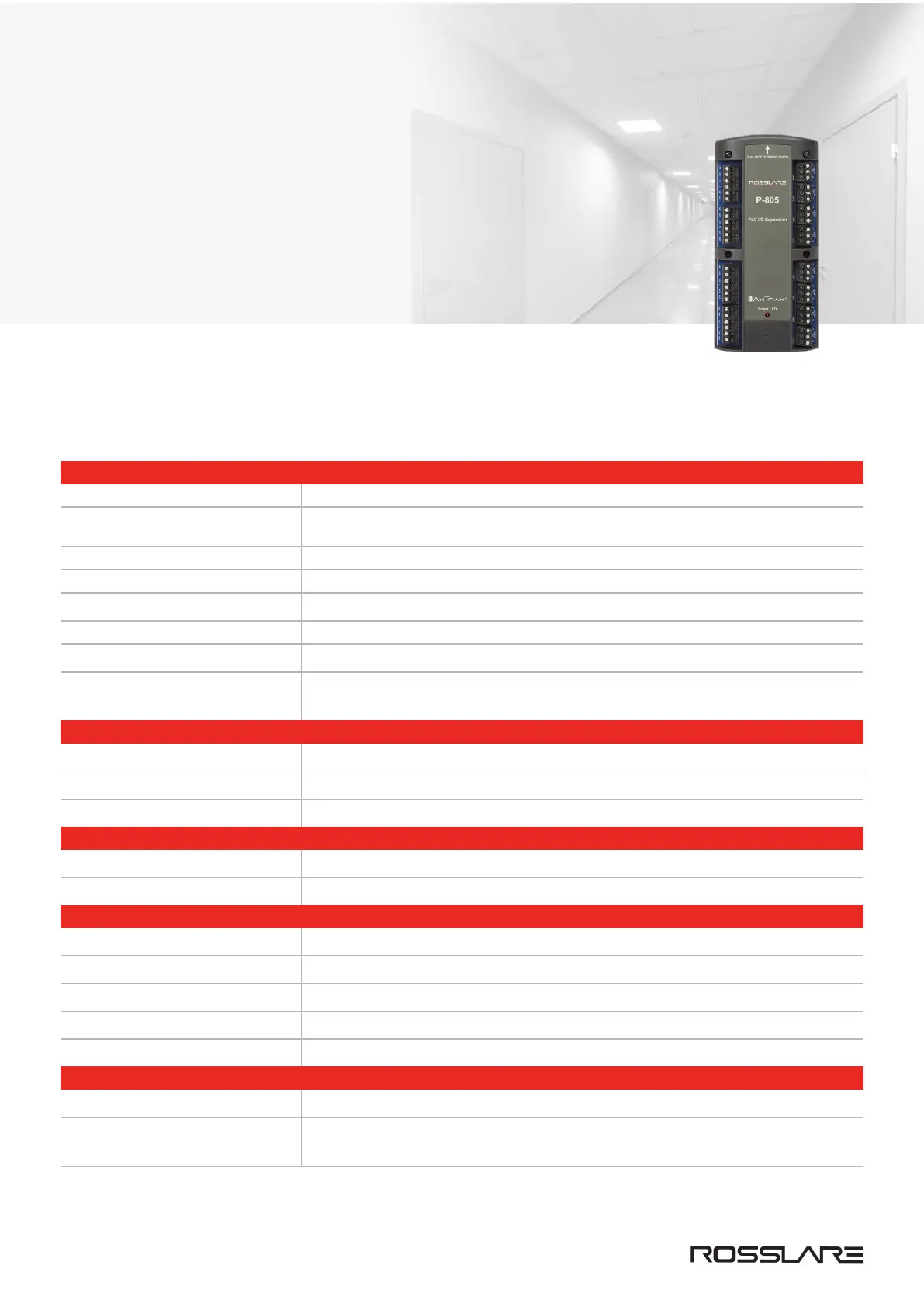

P-805 Series
Expansion Boards for AC-825IP
Installation Guide
1. Introduction
The P-805 is a 16-Input, 8-Output expansion board for the AC-825IP access control panel.
The expansion board supports 16-supervised inputs and 8 relays (5 A Form-C) for general purpose and security
application .
2. Technical Specifications
Electrical Characteristics
Input Voltage 12 to 16 VDC
Input Current
(not including attached devices)
Standby: 65 mA, 12 VDC
Maximum: 380 mA
Number of Inputs 16
Supervised Inputs Voltage 5 VDC maximum voltage
Number of Outputs 8
Output Relays 5 A with N.O., N.C., and COM contacts Form-C Relays
RS-485 Communication Port OSDP/RSDP-bus (S-bus)
Tamper Input
(from enclosure)
4-pin tamper connector
Environmental Characteristics
Operating Environment Indoor
Operating Temp. Range 0°C to 50°C (32°F to 122°F)
Operating Humidity Range 0% to 85% (non-condensing)
Physical Characteristics
Dimensions (H x W x D) 178 x 87 x 38 mm (7.0 x 3.4 x 1.5 in.)
Weight 284 g (10 oz)
Reader Characteristics
Operation Voltage 10-12 VDC
Operation Current 40 mA
Number of Relays 8
Relay Type Form-C (NO/COM/NC)
Relay Out[put Rated 5 A @ 30 VDC or 5 A @ 30 VAC, 0.6 power factor
LED Indicators
Power LED Active when connected to a power source
Output LED
8 LEDs
Each output LED is active when an output relay is energized.
