Section 02 717 ENGINE
Subsection 01 (LEAK TEST)

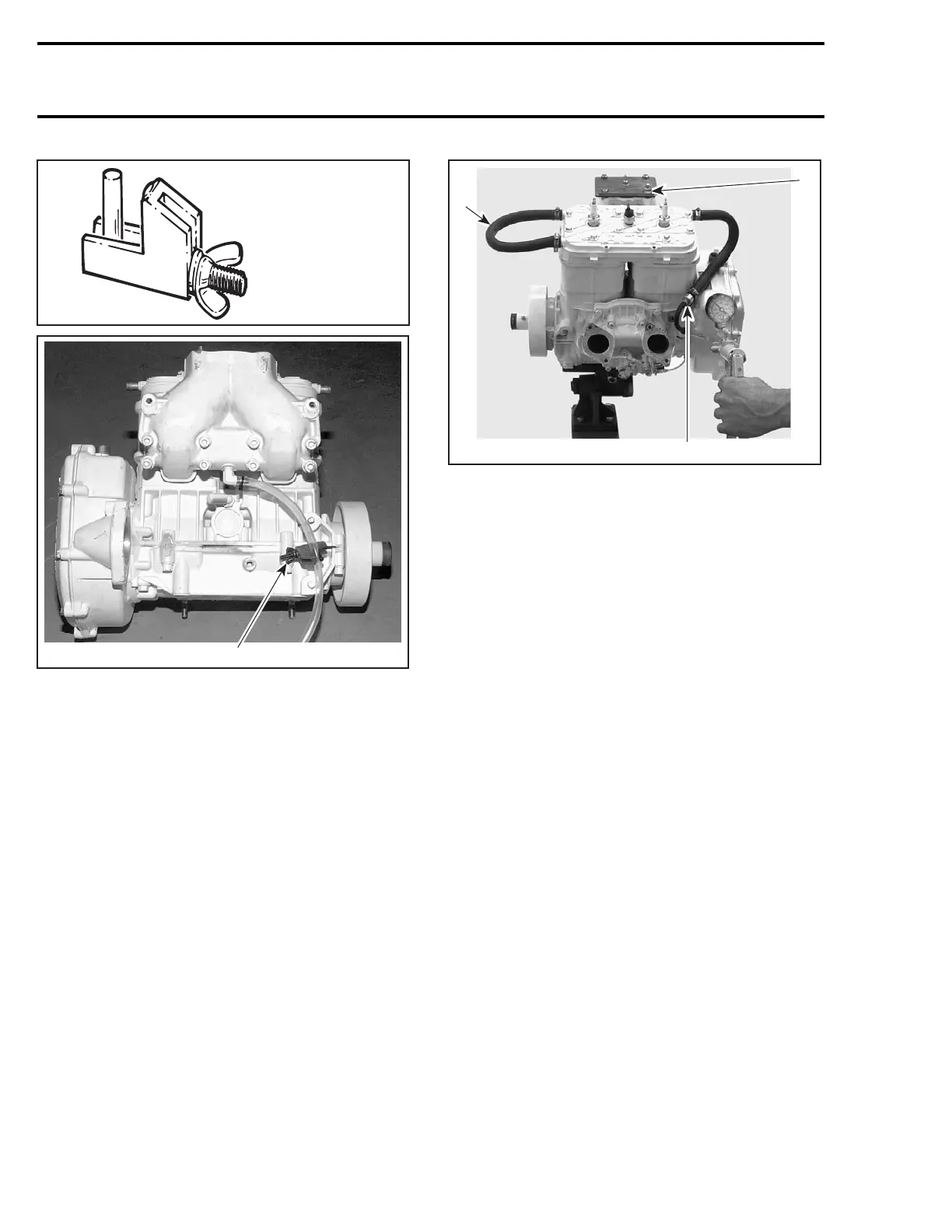

295 000 076
F01B2UB
1
1. Engine drain hose blocked with a hose pincher
Use hoses provided in the kit and install them on
the engine.
Install pump using reducer and appropriate tube(s)
as necessary.
F01B2VA
2
3
1
1. Loop hose and use clamps
2. Use two washers with exhaust manifold stud
3. Hose with adapter and nipple
Activate pump and pressurize engine cooling sys-
temto34kPa(5PSI).
Wait 3 minutes and check if pressure drops; if so,
verify all testing components.
– If kit components are not leaking and pressure
drops, verify all external jointed surfaces, tem-
perature sensor and the O-ring between the
spark plug area and the cylinder head cover. If
none of these components are leaking, there is
an internal leak and it can be detected with BOT-
TOM END AND TOP END testing.
Bottom End and Top End
Remove the carburetor and gasket. Make sure
the surface of the intake manifold is clean.
Install the intake plate with fasteners from the kit
and tighten adequately.
Make sure the spark plugs are installed and tight-
ened.
Block pulse hose using a small hose pincher
(P/N 295 000 076).
NOTE: Do not block the rotary valve shaft hoses.
Install pump to the exhaust plate fitting.
12 smr2005-075
