Section02717ENGINE
Subsection 04 (BOTTOM END)
1
5
3
2
7
8
F01B09A
4
6

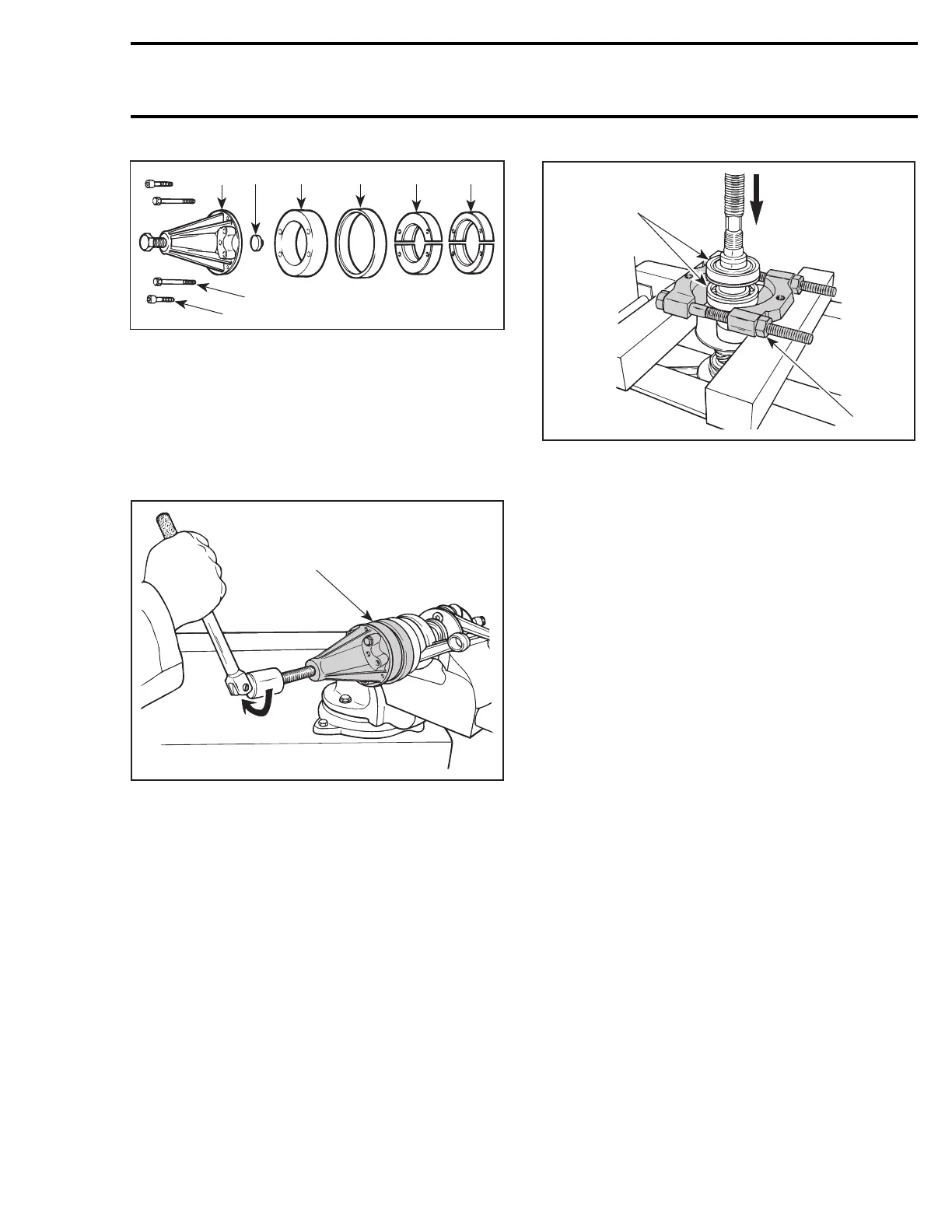

1. Puller (P/N 420 877 635)
2. Protective cap (P/N 420 876 557)
3. Distance ring (P/N 420 876 569), MAG side only
4. Ring (P/N 420 977 490), both sides
5. MAG side ring halves (P/N 420 276 025)
6. PTO side ring halves (P/N 420 977 475)
7. Screw M8 x 40 (P/N 420 840 681)
8. Screw M8 x 70 (P/N 420 841 201)
NOTE: To facilitate ring or distance ring installa-
tion, lubricate their inside diameters.
F01D1OA
1
TYPICAL
1. Removing crankshaft bearing
As an alternate method, use a bearing extractor
such as Proto no. 4332 and a press to remove
two bearings at a time.
F01D1PA
1
2
1. Press bearings out
2. Bearing extractor
CLEANING
General
Discard all oil seals, gaskets, O-rings and sealing
rings.
Clean oil passages and make sure they are not
clogged.
Clean all metal components in a solvent.
Crankshaft
Clean crankshaft end with sand paper no.180 and
remove all residue using pulley flange cleaner
(P/N 413 711 809).
smr2005-078 41
