Rotax 2005 717 RFI User Manual

Section 02 717 ENGINE
Subsection 04 (BOTTOM END)
– starter, refer to appropriate VEHICLE SHOP
MANUAL
– rotary valve cover and valve, refer to ROTARY
VALVE section
– engine top end, refer to TOP END section.

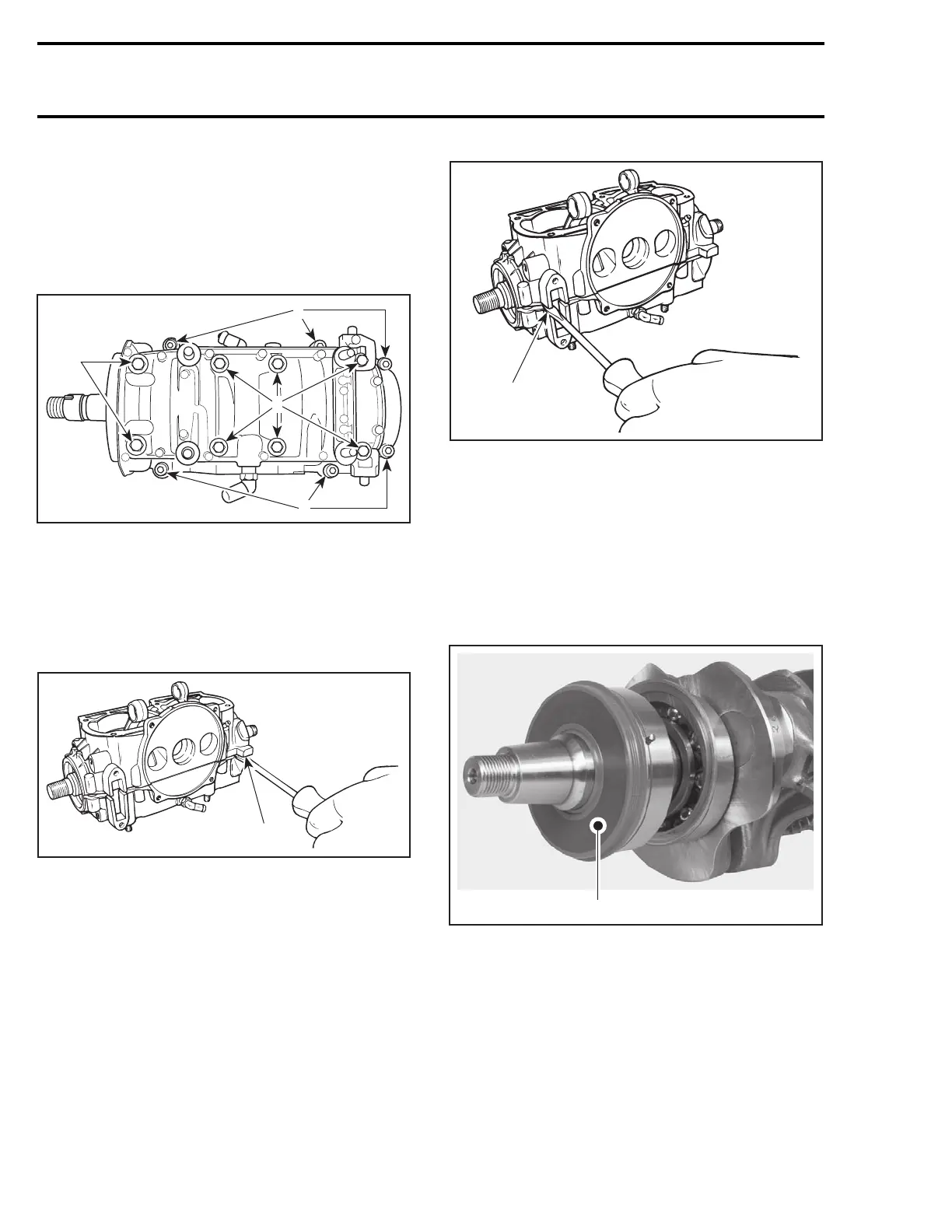

Put engine on a stand. Loosen crankcase screws.
F01D20C
2
3
1
3
1. M10 x 73.5 flanged screws
2. M8 x 68.5 flanged screws
3. M8 x 45 socket head screws
Put engine back on a support. Insert a pry bar
between crankcase lugs to separate halves.
CAUTION: Be careful to precision machined
surfaces.
F01D1KA
1
TYPICAL
1. Separate halves by prying at provided lugs
F01D1LA
1
TYPICAL
1. Separate halves by prying at provided lugs
Remove crankshaft no. 3.
Crankshaft End Bearings
NOTE: Do not needlessly remove crankshaft bear-
ings no. 4.
Take apart crankcase as per procedure above.
Remove end seals.
F06D1GA
1
TYPICAL
1. End seal
To remove end bearings no. 4 from crankshaft
no. 3, use the following tools.
40 smr2005-078
www.SeaDooManuals.net
