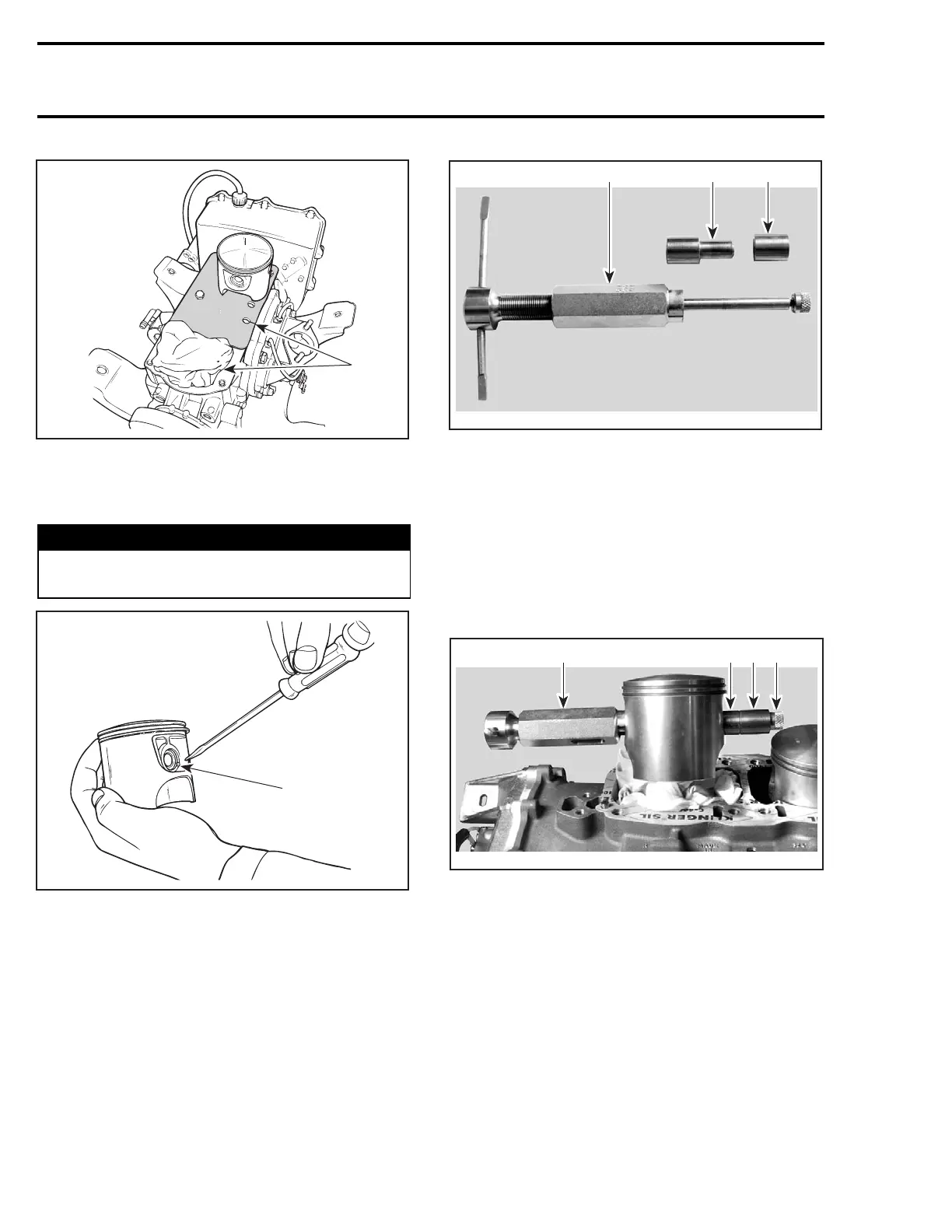

Section 02 717 ENGINE
Subsection 03 (TOP END)
F01D43A
1
1. Openings covered with rag and rubber pad
To remove circlip no. 9, insert a pointed tool in
piston notch then pry it out and discard.
WARNING
Always wear safety glasses when removing
piston circlips.
F01D0PA
1
TYPICAL
1. Piston notch
To extract piston pin no. 10,usethepistonpin
puller (P/N 529 035 503) with the sleeves (P/N 529
035 542).
F00B0IA
2 3
1
TYPICAL
1. Puller
2. Shoulder sleeve
3. Sleeve
– Fully thread on puller handle.
– Insert extractor spindle into the piston pin.
– Slide the sleeve and shoulder sleeve onto the
spindle.
– Screw in extracting nut with the movable ex-
tracting ring toward spindle.
F00B0JA
1 2 3 4
TYPICAL
1. Puller
2. Sleeve
3. Shoulder sleeve
4. Extracting nut
NOTE: The tool cutout must be positioned toward
the bottom of the piston.
28 smr2005-077
