Section 02 717 ENGINE
Subsection 03 (TOP END)
A01B1TA
1

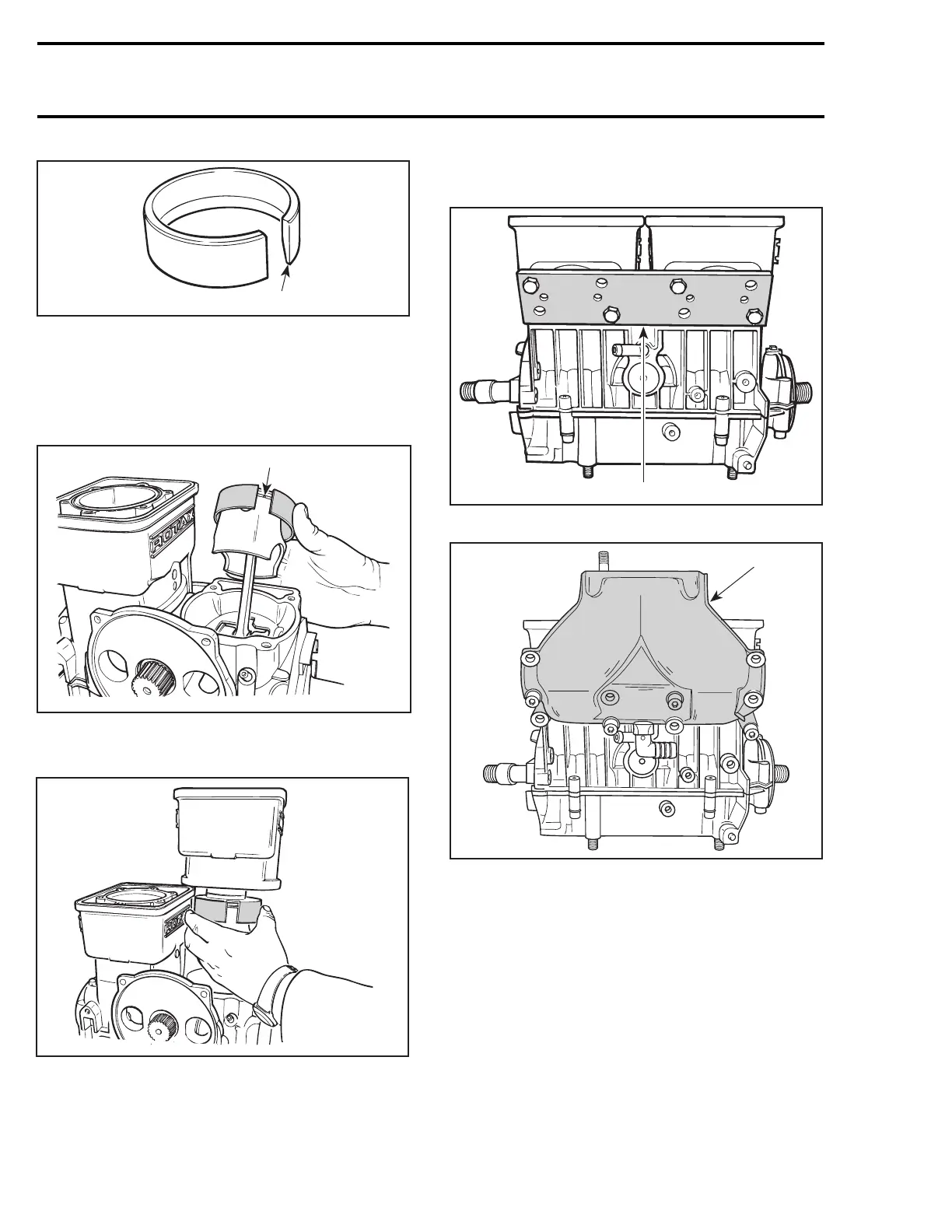

1. Slide this edge
NOTE: Ring compressor will not fit on oversize
parts.
Makesuretoalignringendgapwithpistonlocat-
ing pin. Slide tool over rings.
F01D0ZA
1
1. Ringendgapalignedwithpistonlocatingpin
Slide cylinder over piston.
F01D10A
When reassembling cylin
ders to crankcase, it is
important to have them
properly aligned so that
exhaust flanges pro
perly match up with exhaust
manifold no. 5.
The aligning tool (P/N 420 876 904) or the exhaust
manifold can be used to align cylinders.
F01D44A
1
1. Exhaust flange aligning tool
F01D45A
1
1. Aligning cylinders using exhaust manifold
Cylinder Screw
Apply Molykote 111 (P/N 413 707 000) below the
screw head.
Apply also Loctite 243 (blue) (P/N 293 800 060) on
screw threads.
Install and torque screws no. 7 in a criss-cross
sequence for each cylinder to 24 N•m(17lbf•ft).
Refer to the following illustration.
