Section 02 717 ENGINE
Subsection 04 (BOTTOM END)
Crankcase Screws
Apply Loctite 518 (P/N 293 800 038) on screw
threads and Molykote 111 (P/N 413 707 000) be-
low head screws.

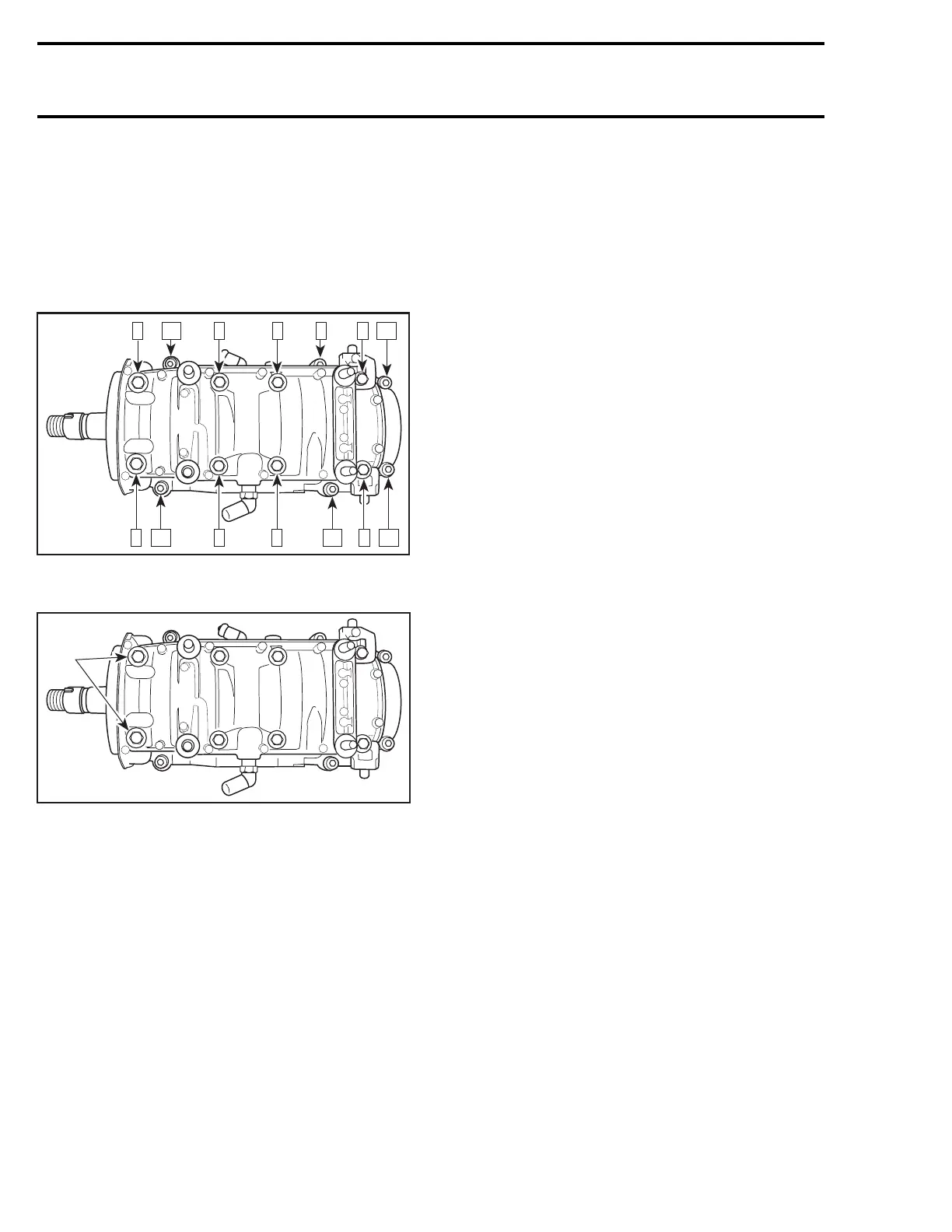

Torque crankcase screws no. 7 and no. 9 to
24 N•m(17lbf•ft) as per following illustrated
sequence.
F01D20D
12
7 111 3 9 5 13
14610248
Torque 2 M10 crankcase screws no. 8 to 40 N•m
(30 lbf•ft).
F01D20B
1
1. Torque to 40 N•m(30lbf•ft)
Oil Fittings
If inlet and outlet oil fittings no. 11 of rotary valve
shaft have been removed from crankcase, rein-
stall them with their end pointing toward ignition
housing. Apply Loctite 518 (P/N 293 800 038) on
threads of fittings.
Studs
At assembly in crankcase, apply Loctite 518
(P/N 293 800 038) on threads of studs no. 10.
Torque to 10 N•m(89lbf•in).
PTO Flywheel
Apply Loctite 767 (antiseize lubricant) (P/N 293
800 070) to crankshaft threads.
Using the same tools as for disassembly proce-
dure, torque PTO flywheel to 110 N•m(81lbf•ft).
