Section 03 787 RFI ENGINE
Subsection 01 (LEAK TEST)

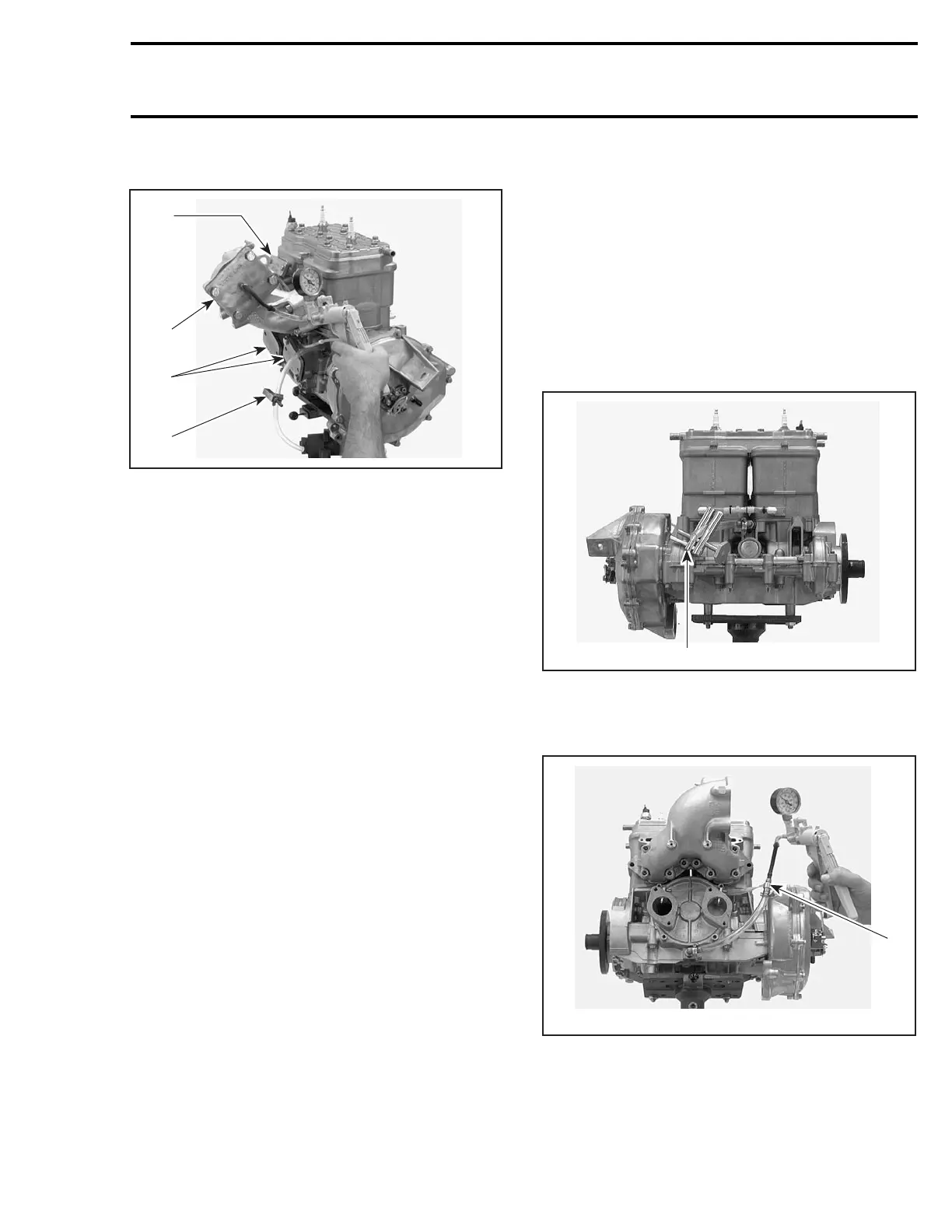

Install pump to the exhaust plate fitting.
F01B30A
2
4
1
3
1. Intake plates
2. RAVE valve plates
3. Pulse hose blocked with a hose pincher
4. Exhaust plate
Activate pump and pressurize engine to 34 kPa
(5 PSI).
CAUTION: Do not exceed this pressure.
Wait 3 minutes and check if pressure drops; if so,
verify all testing components.
If kit components are not leaking, verify engine
jointed surfaces as per following areas:
– spark plugs
– cylinder head gasket
– cylinder base gasket
– crankcase halves
– rotary valve cover
– engine plugs
– exhaust manifold
– oil injection pump.
Check also small oil injection pump lines and fit-
tings; check for air bubbles or oil column going
toward pump, which indicate a defective check
valve.
If the above mentioned components are not leak-
ing, block both oil hoses of the rotary valve shaft
using a small hose pincher (P/N 295 000 076) on
each.
NOTE: If leakage stops at this point, proceed with
ROTARY VALVE SHAFT testing.
If there is still some leakage, remove the PTO fly-
wheel to verify outer seal.
If no leak is found on the PTO side outer seal,
remove magneto flywheel and verify crankshaft
outer seals.
Proceed with the ROTARY VALVE SHAFT testing
if the crankshaft outer seals are not leaking.
Rotary Valve Shaft
NOTE: It is mandatory to drain the injection oil
from the rotary valve shaft.
Block oil return hose of the rotary valve shaft with
a hose pincher.
F01B33A
1
1. Oil return hose blocked with hose pincher
Install pump with reducer and nipple to the oil sup-
ply hose of the rotary valve shaft.
F01B34A
1
1. Pump with reducer and nipple
Activate pump and pressurize to 34 kPa (5 PSI).
Check plug of the rotary valve shaft in crankcase.
smr2005-080 61
