c) Ensure that regardless of the mode you choose to use
the correct connections are done.

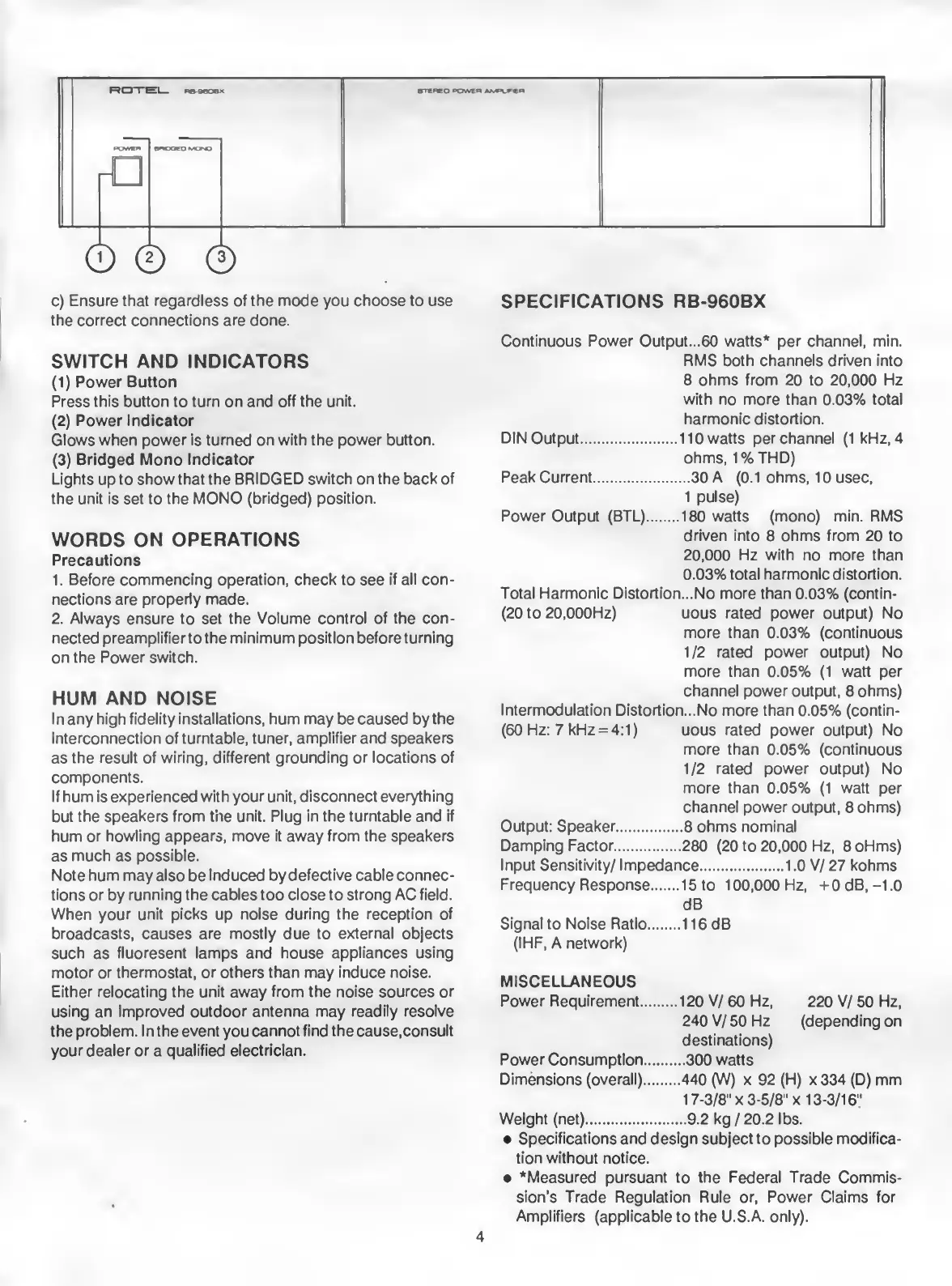

SWITCH AND INDICATORS
(1) Power Button
Press this button to turn on and off the unit.
(2) Power Indicator
Glows when power is turned on with the power button.
(3) Bridged Mono Indicator
Lights up to show that the BRIDGED switch on the back of
the unit is set to the MONO (bridged) position.
WORDS ON OPERATIONS
Precautions
1. Before commencing operation, check to see if all con¬
nections are properly made.
2. Always ensure to set the Volume control of the con¬
nected preamplifier to the minimum position before turning
on the Power switch.
HUM AND NOISE
In any high fidelity installations, hum may be caused by the
interconnection of turntable, tuner, amplifier and speakers
as the result of wiring, different grounding or locations of
components.
If hum is experienced with your unit, disconnect everything
but the speakers from tiie unit. Plug in the turntable and if
hum or howling appears, move it away from the speakers
as much as possible.
Note hum may also be induced by defective cable connec¬
tions or by running the cables too close to strong AC field.
When your unit picks up noise during the reception of
broadcasts, causes are mostly due to external objects
such as fluoresent lamps and house appliances using
motor or thermostat, or others than may induce noise.
Either relocating the unit away from the noise sources or
using an improved outdoor antenna may readily resolve
the problem. In the event you cannot find the cause,consult
your dealer or a qualified electrician.
SPECIFICATIONS RB-960BX
Continuous Power Output...60 watts* per channel, min.
RMS both channels driven into
8 ohms from 20 to 20,000 Hz
with no more than 0.03% total
harmonic distortion.
DIN Output.110 watts per channel (1 kHz, 4
ohms, 1% THD)
Peak Current.30 A (0.1 ohms, 10 usee,
1 pulse)
Power Output (BTL).180 watts (mono) min. RMS
driven into 8 ohms from 20 to
20,000 Hz with no more than
0.03% total harmonic distortion.
Total Harmonic Distortion...No more than 0.03% (contin-
(20 to 20,000Hz) uous rated power output) No
more than 0.03% (continuous
1/2 rated power output) No
more than 0.05% (1 watt per
channel power output, 8 ohms)
Intermodulation Distortion...No more than 0.05% (contin-
(60 Hz: 7 kHz = 4:1) uous rated power output) No
more than 0.05% (continuous
1/2 rated power output) No
more than 0.05% (1 watt per
channel power output, 8 ohms)
Output: Speaker.8 ohms nominal
Damping Factor.280 (20 to 20,000 Hz, 8 oHms)
Input Sensitivity/ Impedance.1.0 V/ 27 kohms
Frequency Response.15 to 100,000 Hz, + 0 dB, -1.0
dB
Signal to Noise Ratio.116 dB
(IHF, A network)
MISCELLANEOUS
Power Requirement.120 V/ 60 Hz, 220 V/ 50 Hz,
240 V/ 50 Hz (depending on
destinations)
Power Consumption.300 watts
Dimensions (overall).440 (W) x 92 (H) x 334 (D) mm
17-3/8" x 3-5/8" x 13-3/16"
Weight (net).9.2 kg / 20.2 lbs.
• Specifications and design subject to possible modifica¬
tion without notice.
• ‘Measured pursuant to the Federal Trade Commis¬
sion’s Trade Regulation Rule or, Power Claims for
Amplifiers (applicable to the U.S.A. only).
