SMART WiFi modem for LCAC units

6 User manual

PART 3. INSTALLATION AND CONFIGURATION

1. INSTALLATION ACCESSORY

1.1. Select the installation location

Don‘t install at the place which is covered with heavy oil, vapor or sulfureted gas, otherwise, this product would

be deformed that would lead to system malfunction.

1.2. Preparation before installation

1) Please conrm that all the following parts have been supplied.

No. Name Qty. Remarks

1 Smart port 1 -

2 Installation and owner’s manual 1 -

3 Screws 3 M4X20 (For Mounting on the Wall)

4 Wall plugs 3 For Mounting on the Wall

5 Smart kit 1 -

6 The connective wires group-1 1 See Fig. 2.1

2) Prepare the following assemblies on the site.

No. Name

Qty.

(embeded into wall)

Specication

(only for reference)

Remarks

Wiring Tube

(Insulating Sleeve and Tightening Screw)

1 - -

2. INSTALLATION METHOD

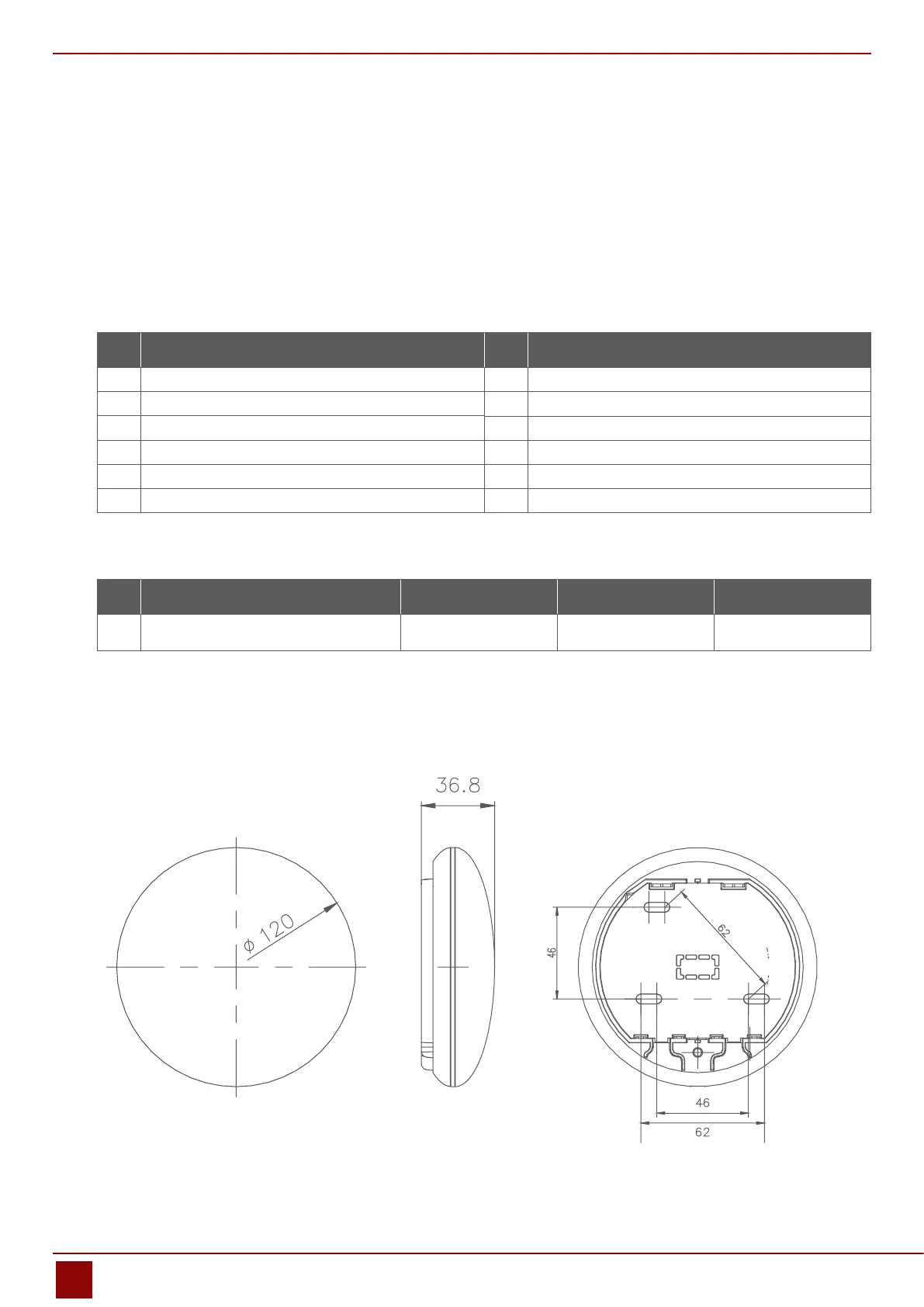

2.1. Wi controller structure size gure

Fig. 2.1
