Rotex HPSU compact 304 System Instructions

2 x Operation
FA ROTEX RoCon HP - 03/2013
5
2 Operation
2.1 General 2.2 Display and operating elements
2.2.1 Display
All the operating steps are supported by appropriate displays in
the clear text display. Menu guiding is available in 6 different
languages (see section 2.3.1).
DANGER!
If electrical components come into contact with water,
this can cause an electric shock as well as cause
potentially fatal injuries and burns.
Ɣ Protect the displays and keys on the control
systems from the effects of moisture.
Ɣ To clean the display, use a dry cotton cloth.
Using aggressive cleaning agents and other
liquids can cause damage to equipment or lead
to an electric shock.
Maximum energy utilisation
The most effective energy utilisation is achieved by the
unit at the lowest possible return flow and hot water
temperatures.
At temperatures in excess of 50 °C, the effectiveness
(COP) of the HPSU compact will be made worse by
the heatingsupport provided by the optional heater
(backup heater).
The safety settings of the HPSU compact hinder the
operation of the heat pump if
– the outdoor temperature is < 12 °C and simultane-
ously
– the storage tank temperature is < 30 °C.
Without backup heater:
At an outdoor temperature < 12 °C, the storage tank
water needs to be heated up by an external heater to
> 30 °C.
With backup heater (BUH):
At an outdoor temperature < 12 °C, the backup heater
(BUH) switches on automatically to heat the water in
the storage tank to > 30 °C.
Ɣ In order to accelerate the heating up process with
BUH, temporarily set the
– Parameter [T-DHW 1 des] > 55 °C,
– Parameter [Function Heating Rod] = "1" and
– Parameter [BOH power] = 9000 W.
1 Clear text display
2 Setting: Configuration
3 Not assigned
4 Rotary switch
5 Setting: Info
6 Setting: Operating Mode
7 Setting: Set Temp Day
8 Setting: Set Temp Night
9 Setting: DHW Set Temp
10 Rotary button
11 Setting: DHW Installation
12 Setting: Time Program
13 Operating button

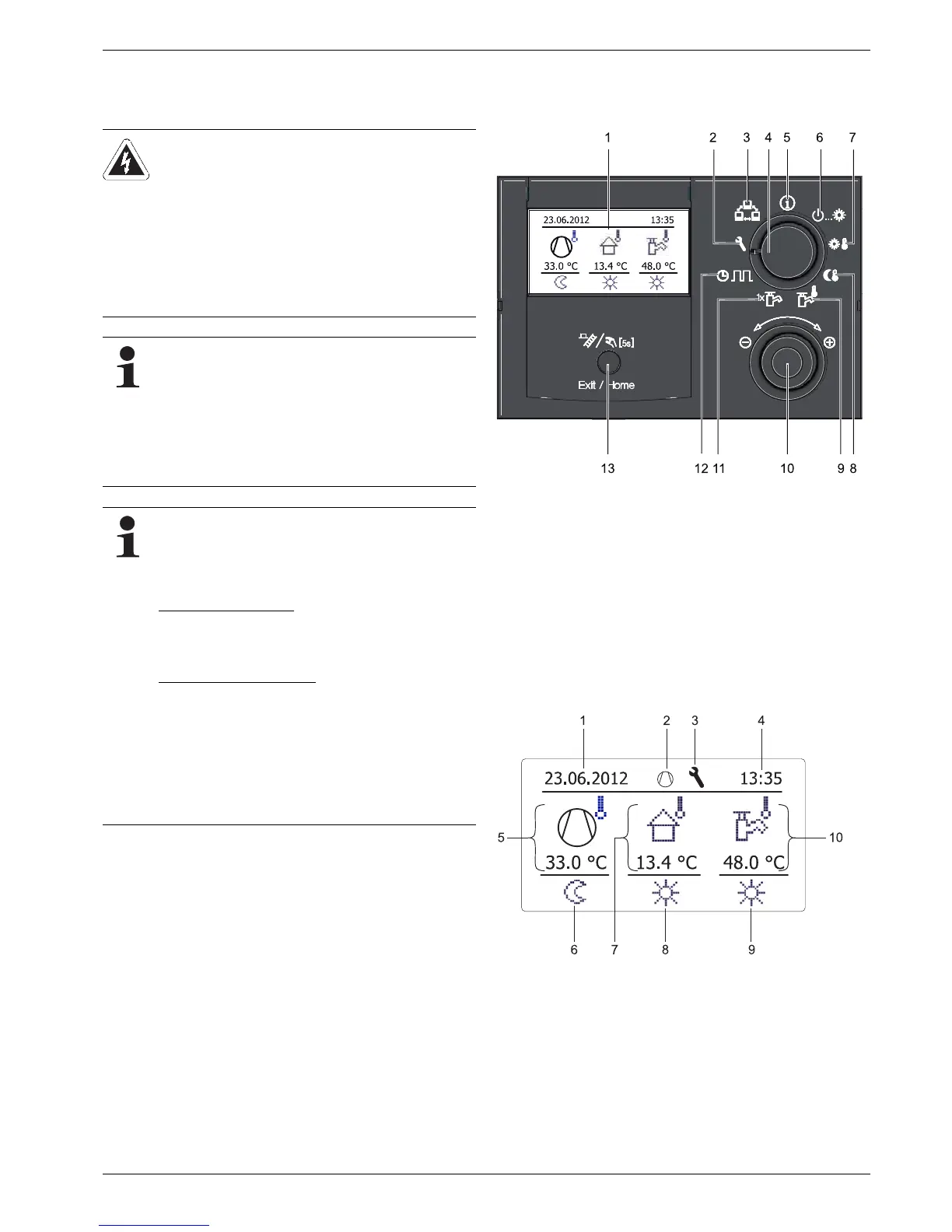

Fig. 2-1 Arrangement of display and operating elements
1 Date display
2 Status of refrigerant

compressor
3 Display of expert login
4 Display time
5 Current flow temperature
(heating circuit)
6 Status heating circuit
7 Current outdoor temperature
8 Active heating programme
9 Status of hot water genera-
tion
10 Current storage tank temper-
ature
Fig. 2-2 Controller display
