Operating instructions
ROTOmotor manufacturer of top four-stroke engines
Page:8
4.6 Exhaust pipes

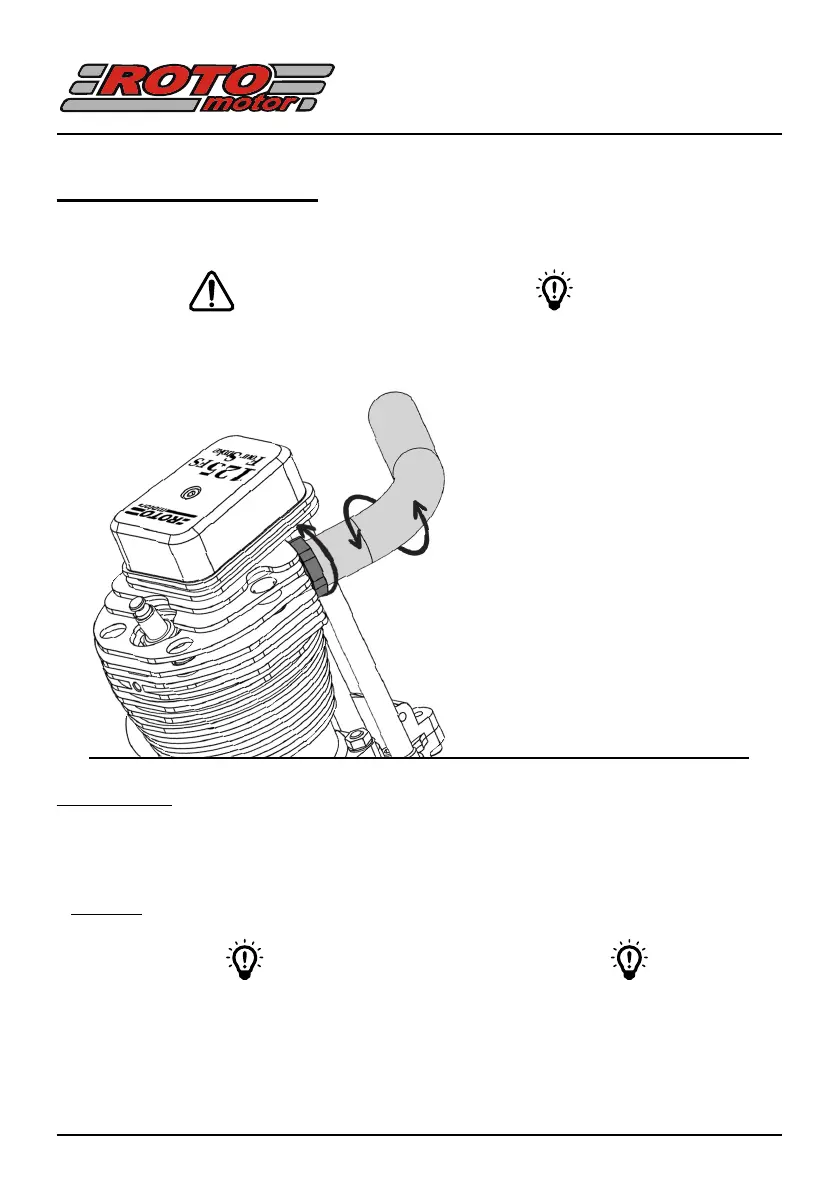

The exhaust pipes are made so that they can be rotated around the axis. Therefore, set the
exhaust pipes to the desired position by turning and then secure by tightening the nut.
The exhaust pipes can be
rotated in a small range as
needed.
*A part of the package
± 10°
Beware of damage to the end of the pipe!
The end of the pipe serves as a sealing surface for the
extension tube. If damaged, it will not be possible to
seal the pipes correctly!
The diameter of the exhaust
pipe cannot be reduced!
Silicone pipes* are used to seal the transition between the exhaust pipes and the ROTO
exhausts, or between the extension pipe and the ROTO FS exhaust.
ROTO extension pipe and exhaust not included!
When mounting on the extension pipe or exhaust, the silicone pipe* must be secured with
a cable tie* on each side of the hose to seal the connection well.
There should be no more than 2mm
between the end of the exhaust pipe
and the exhaust.
The silicone pipe seals correctly only if the con-
tact surfaces are clean and free of grease.
When reassembling, the contact surfaces must
be degreased!
