Pack Mount Extension:
This Mount Handle enables two Fuel Packs to be mounted on top of each
other.

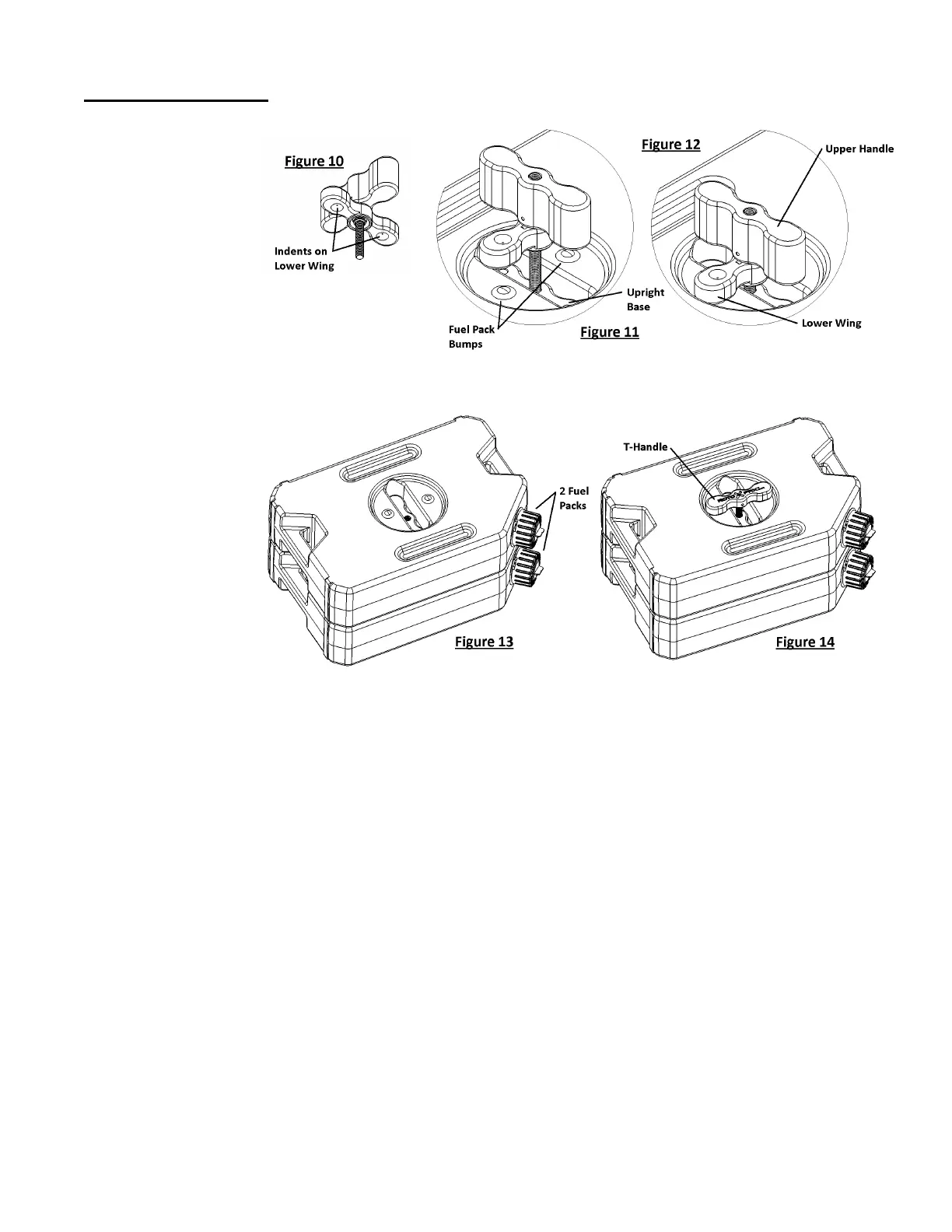

Step 1 - Insert
Extension Handle
into the Upright
Base then tighten
while keeping the
indents on the
Lower Wing (see Figure 10) aligned with
the bumps on the Fuel Pack (see Figure
11) until the Extension Handle is
sufficiently tight and the Upper Handle
and Lower Wing are perpendicular to each other (see Figure 12).
Step 2 - Mount another Fuel Pack
onto the extension handle.
(see Figure 13)
Step 3 - Tighten T-
Handle or other
handles (LOX, or DLX)
to desired tension.
(see Figure 14)
