RotorWay International
Exec 162F Construction Manual
Section 1
Page 10

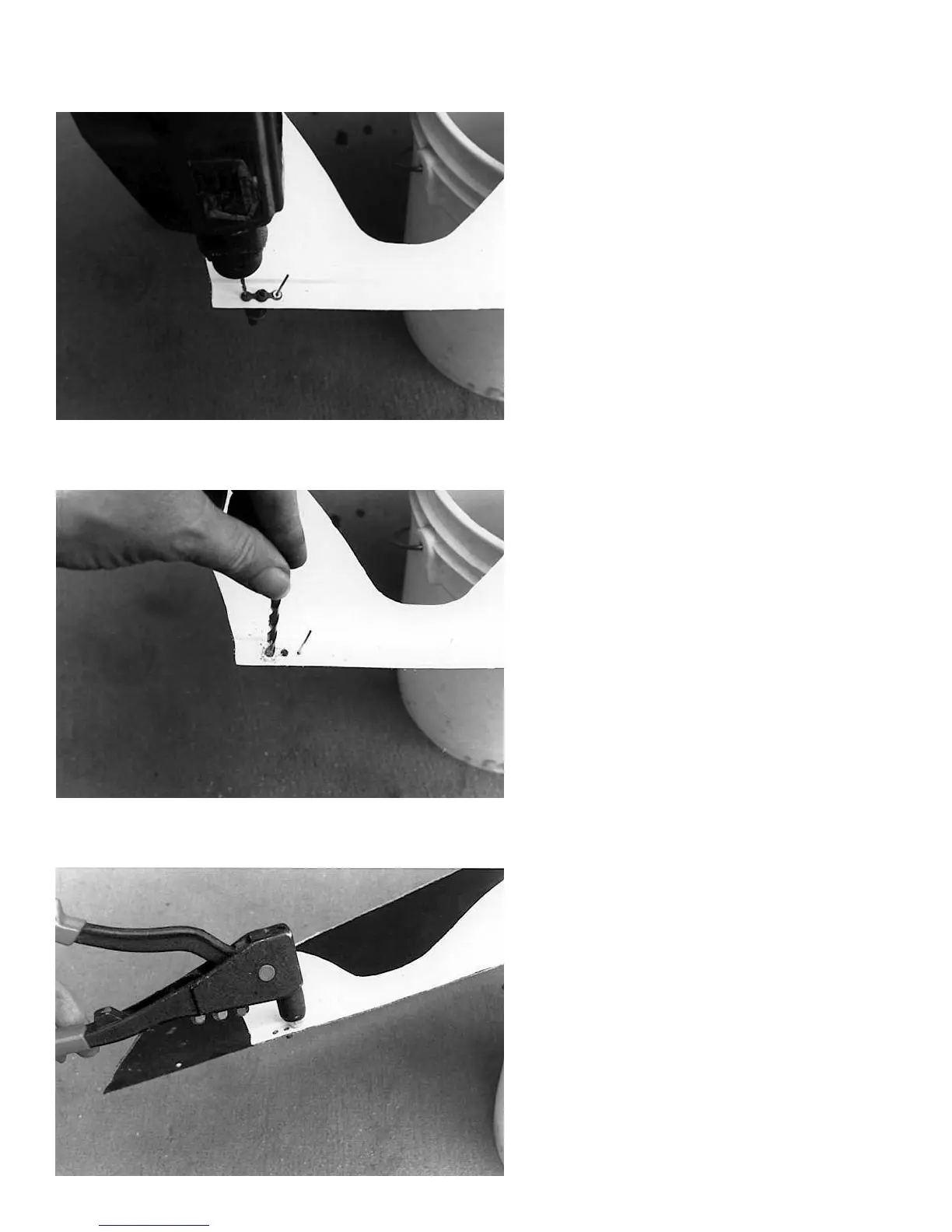

Photo #14
Using a large drill bit, countersink the holes for the
pop rivets. Use a hand drill and open the hole for
the size of screw or bolt to be used.
Photo #13
Use the nut plate as a template and drill the holes
for the pop rivets.
Photo #15
Use a pop rivet gun to install the nut plate rivets.
