RotorWay International
Exec 162F Construction Manual
Section 1
Page 11

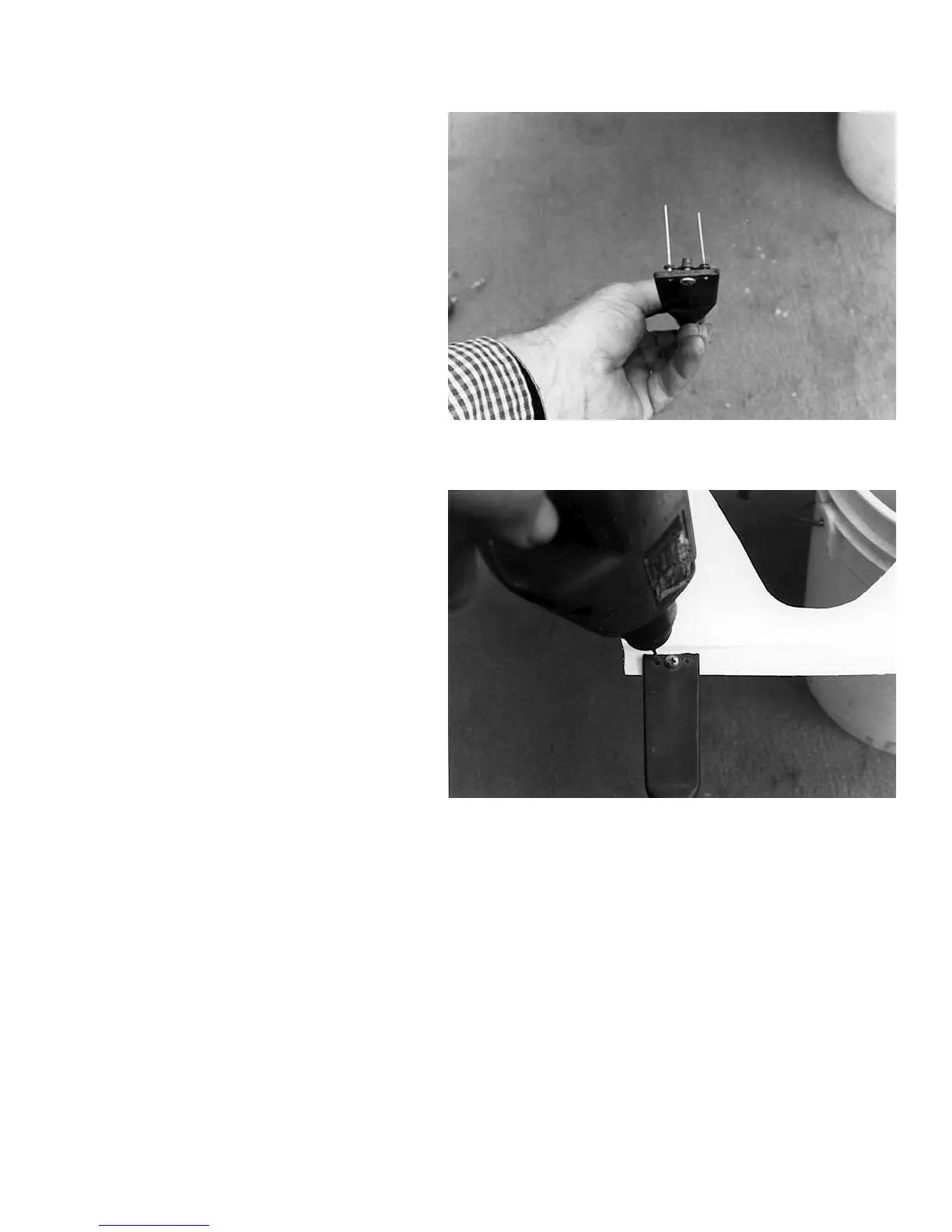

Photo #16
When installing several nut plates, it is
recommended to make a drill template from a flat
strip of metal, 1-3/4" wide and 6" long. Drill a hole
in the center close to one end for the size of screw
being used. Screw on a nut plate and use the nut
plate as a template to locate the pop rivet holes.
Photo #17
Remove the nut plate, glue the screw in the hole
and use the template to drill the pop rivet holes.
