B. Outdoor Unit

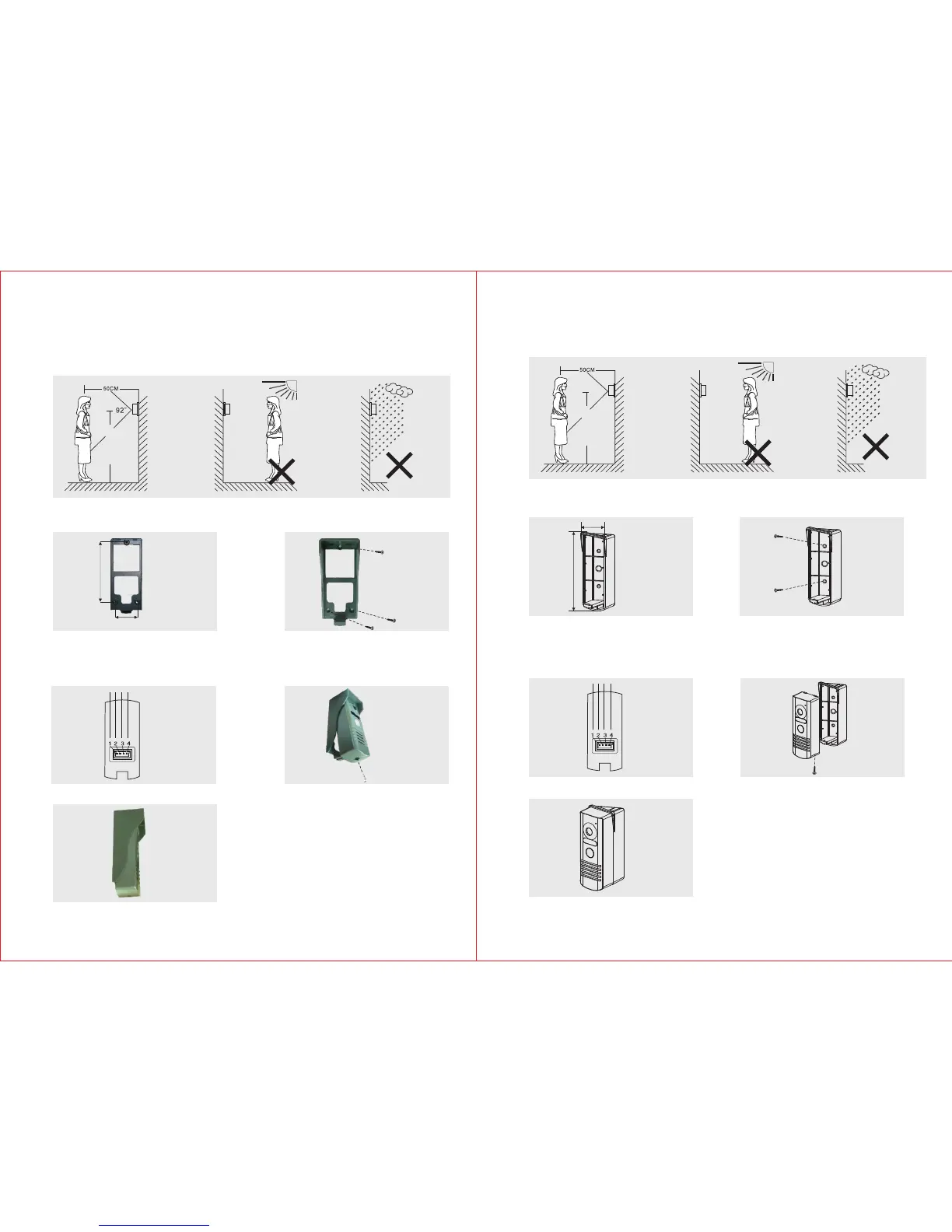

1) Rain shade
14 0 -170mm
1
96mm
36mm
2-1 2-2
43
5
14 0 -170mm
1
12 9 m m
50 m m
2-1 2-2
43
5
5. Finally seal the screw holes with enclosed silicone caps.
3. Connect the wires according to the wiring diagram.
4. Fix the outdoor unit into the rain shade and fasten the bottom with screws.
(Screw size: 2.6x8BA)
2. Drill three holes in proper size in the wall and fasten the rain shade on
the wall with screws.(Screw size: 4x40FA)
1. Install the outdoor unit at the height of 1.4m~1.7m up from the ground
and avoid direct sunlight and rain.
2) Oblique base
1. Install the outdoor unit at the height of 1.4m~1.7m up from the ground
and prevent direct sunlight.
2. Drill two holes in proper size in the wall and fasten the oblique base on
the wall with screws.(Screw size: 4x40FA)
3. Connect the wires according to the wiring diagram.
4.Fix the outdoor unit into the oblique base and fasten the bottom with screws.
(Screw size: 3x10FM)
5. Finally seal the screw holes with enclosed silicone caps.
4
3
46°
