Bulb Replacement
177
5
FRONT DIRECTION INDICATORS
Replacement bulb: 21 watt.

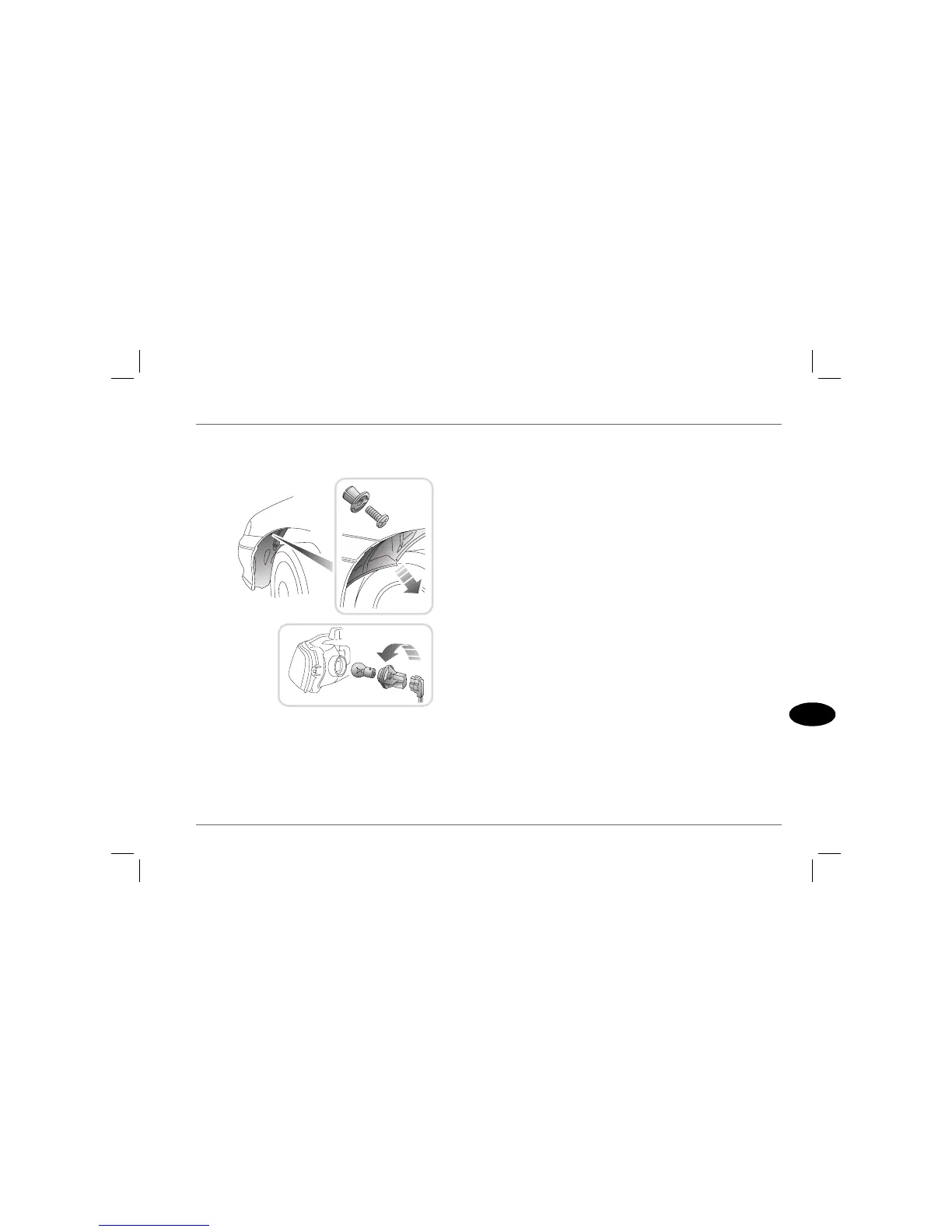

The direction indicator bulbs are accessible from behind the wheel
arch liners, as follows:
Turn the steering wheel to full left lock to access the right indicator
bulb or full right lock to access the left indicator bulb.
Use a screwdriver to remove the plastic screw-rivet securing the
wheelarch liner (see inset) and pull the wheelarch liner down until
it naturally folds along the crease line. This will open up a gap,
enabling you to reach behind the liner and feel the rear of the bulb
holder.
Twist a quarter turn anti-clockwise to release the bulb holder from
the headlight unit, then push and twist to remove the bulb.
When replacing, note that the screw-rivet is made in two parts -
as it is tightened, the inner ‘screw’ progressively expands the outer
‘rivet’ thereby securing the liner to the wing panel.
HB0225
