Braking system 9•19
9
1380 Rover 800 Series Remake
1 Electronic control unit cover
2 Left-hand side trim panel
3 Cable connector
4 Rear wheelarch plastic liner
5 Luggage compartment floor grommet
6 Sensor wiring
7 Inner wheelarch grommet
8 Cover bolts
9 Cable cover and guide
10 Cable retaining clip
11 Cable tie
12 Support bracket bolt
13 Cable harness support bracket on
suspension arm
14 Handbrake linkage cover bolts
15 Handbrake linkage cover
16 Sensor-to-bracket retaining bolt
17 Wheel speed sensor
securing the sensor wiring to the chassis
member.
52 Undo the three bolts securing the cable
harness support bracket to the rear
suspension arm.
53 Undo the three bolts and remove the
handbrake linkage cover from the brake
caliper.
54 Undo the bolt securing the sensor to the
sensor bracket on the hub carrier, and
carefully prise the sensor out of the bracket.
55 Manipulate the sensor and wiring out from
under the wheelarch, and remove it from car.
56 Prior to refitting, clean the sensor, sensor
bracket and the mounting area on the hub
carrier, removing all traces of dirt and grit.
57 Refitting is a reversal of removal.
Lubricate the sensor and sensor bracket with
Rocol J166 or Molykote FB180, and tighten all
bolts to the specified torque. Check the
sensor-to-reluctor ring clearance, which
should be as given in the Specifications.
Wheel speed sensor reluctor
rings
58 The reluctor rings for the front and rear
wheel speed sensors are an integral part of
the driveshaft outer constant velocity joints
(front) and rear wheel hub flanges (rear), and
cannot be renewed separately.
59 If a reluctor ring is damaged, or in any way
unserviceable, a new driveshaft outer
constant velocity joint or rear hub flange must
be obtained as applicable. Removal and
refitting procedures are covered in Chapters 8
and 10 respectively.
ABS copy valve
60 Removal and refitting procedures for the
copy valve fitted to the later type ABS system
are the same as those for the pressure-
reducing valve used on the standard braking
system. Refer to Section 14 for details.

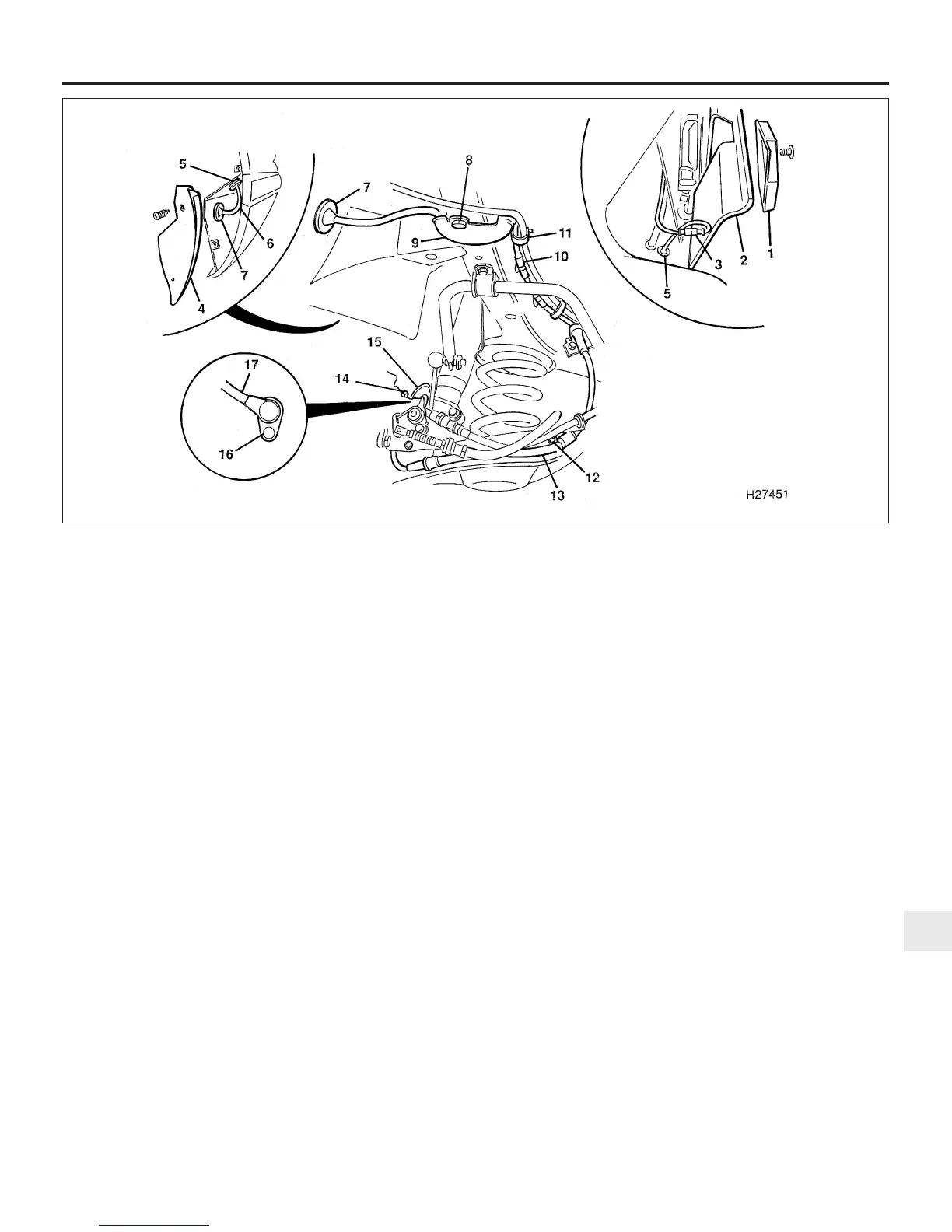

25.45 ABS rear wheel speed sensor attachments
