1•6 Maintenance and servicing
1380 Rover 800 Series Remake
1 Vehicle identification plate
2 Screen washer reservoir filler
3 Power steering fluid reservoir
filler
4 Cooling system expansion tank
filler
5 Front shock absorber top
mounting
6 Brake and clutch fluid reservoir
filler
7 Brake master cylinder
8 Vacuum servo unit
9 Fuel filter
10 Ignition system ECU
11 Ignition coil
12 Brake pressure reducing valve
13 Fuse and relay box
14 Battery negative terminal
15 Battery positive terminal
16 Air cleaner assembly
17 Radiator cooling fan
18 Air cleaner intake trunking
19 Engine oil dipstick
20 Airflow meter
21 Throttle housing
22 Plenum chamber
23 Engine oil filler cap
24 Alternator
25 Power steering pump (later
models)

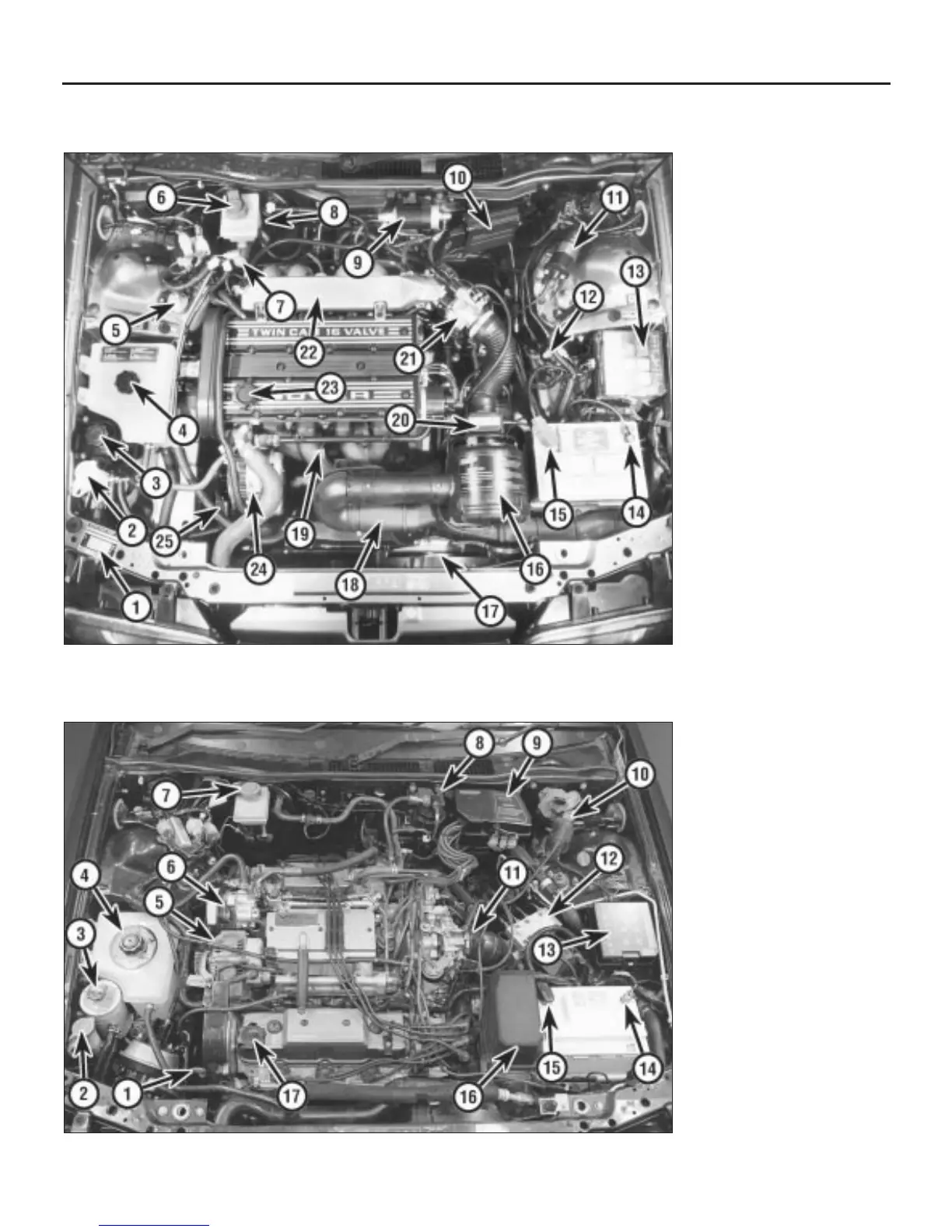

Engine compartment component locations -
4-cylinder engine models with multi-point fuel injection
1 Engine oil dipstick
2 Screen washer reservoir filler
3 Power steering fluid reservoir
filler
4 Cooling system expansion tank
filler
5 Alternator
6 Power steering pump
7 Brake and clutch fluid reservoir
filler
8 Fuel filter
9 Control box
10 Ignition coil
11 Throttle body
12 ABS modulator
13 Fuse and relay box
14 Battery negative terminal
15 Battery positive terminal
16 Air cleaner assembly
17 Engine oil filler cap
Engine compartment component locations - V6 engine models
