Maintenance and servicing 1•7
1
1380 Rover 800 Series Remake
1 Engine undertray
2 Front towing eye
3 Longitudinal support member
4 Clutch slave cylinder
5 Reversing light switch
6 Front tie-bar
7 Transmission drain plug
8 Inner constant velocity joint
9 Transmission filler plug
10 Front anti-roll bar
11 Gearchange rod
12 Steady rod
13 Fuel pipes
14 Exhaust section flange joint
15 Power steering gear
16 Steering track rod
17 Front lower suspension arm
18 Brake caliper
19 Oil filter
20 Driveshaft damper
21 Engine oil drain plug

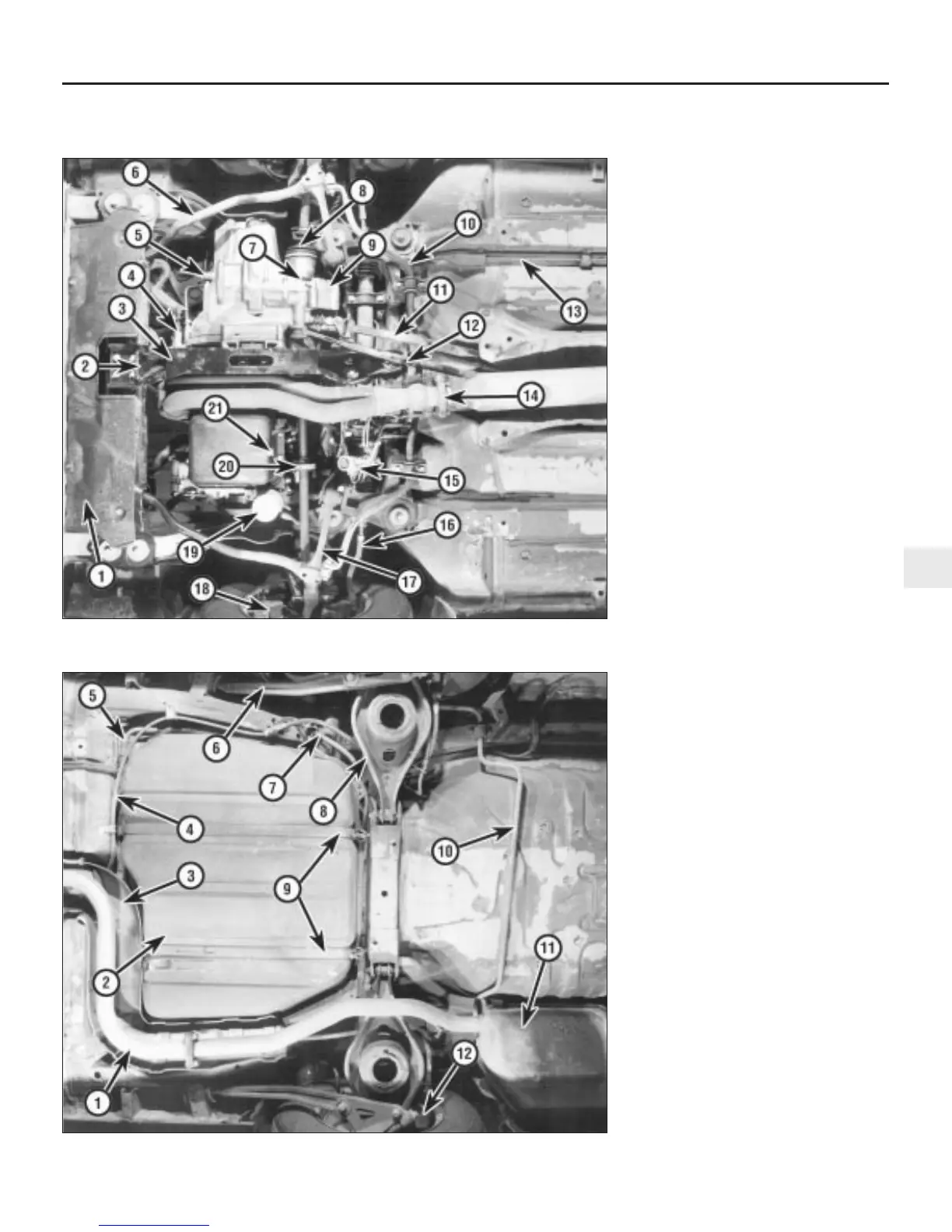

Underside view at front end showing component locations on
4-cylinder engine models
1 Exhaust intermediate section
2 Fuel tank
3 Exhaust rear heat shield
4 Handbrake cable
5 Fuel pipes
6 Trailing link
7 Fuel filler neck connection
8 Transverse link
9 Fuel tank retaining straps
10 Rear anti-roll bar
11 Rear silencer
12 Brake caliper
Underside view at rear end
