bumper moulding, and release the moulding
from the side retaining clips.
8 Withdraw the moulding from the bumper.
9 Where fitted, release the washer pipe clips
and studs, and disconnect the wiring
multiplug.
10 On later models, prise out the two radiator
baffle retaining studs.
11 Undo the bolt securing the dim-dip
resistor bracket (where fitted).
12 Undo the two bolts securing the centre
support member to the bumper.
13 Undo the two end bolts securing the
bumper to the frame and remove the bumper.
Refitting
14 Refitting is a reversal of removal.
Rear bumper
Removal
15 Remove the trim from the rear of the
luggage compartment.
16 Undo the screws and remove the two
wheelarch liners (see illustration).
17 Withdraw the grommets from the rear face
of the luggage compartment, and undo the two
bumper moulding retaining nuts and washers.
18 Release the moulding from the side
retaining clips, and withdraw the moulding
from the bumper.
19 Where fitted, remove the plastic cover
over the rear towing eye.
20 Withdraw the grommets, and undo the
two bolts each side securing the bumper to
the frame.
21 Remove the bumper from the car.
Refitting
22 Refitting is a reversal of removal.
42 Front seats -
removal and refitting
1
Removal
1 Where a lumbar support switch panel is
fitted to the side of the seat, carefully prise up
the front of the switch panel, disconnect the
wiring connectors and remove the panel.
2 On early models, prise off the trim caps, and
undo the two screws securing the trim panel
below the seat base. Remove the trim panel.
3 Undo the bolt securing the seat belt at the
base of the seat.
4 Undo the four bolts securing the seat
runners.
5 Undo the bolt securing the seat belt stalk,
and remove the stalk.
6 Disconnect the seat control multiplugs and
release the wiring harness from the cable ties.
7 Withdraw the seat from the car.
Refitting
8 Refitting is a reversal of removal. Ensure
that all wiring harnesses are secured with
cable ties well clear of the seat control
components and runners.
Bodywork and fittings 11•17

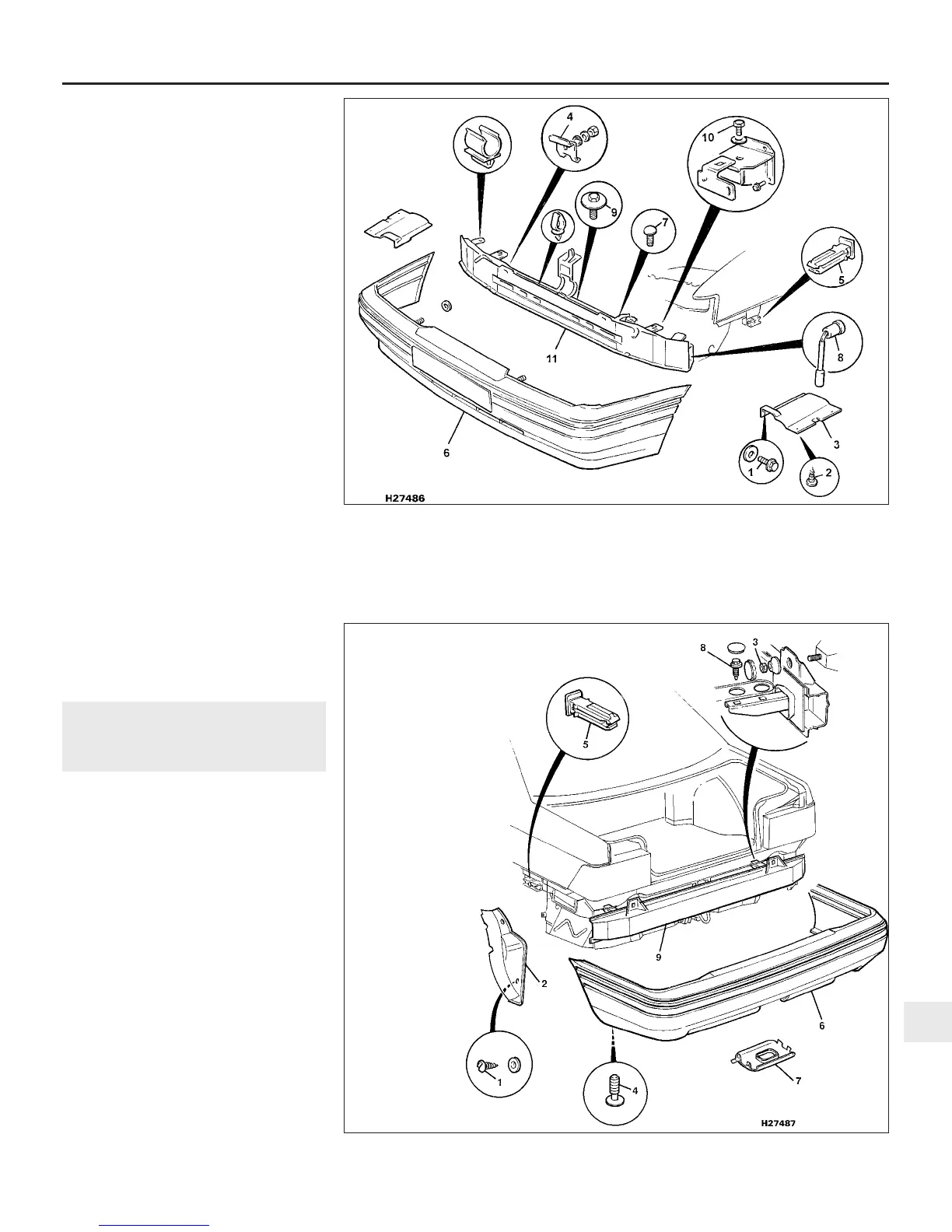

41.3 Front bumper components - early models shown, later models similar
1 Access panel retaining bolt
2 Access panel retaining
screws
3 Access panel
4 Bumper moulding clamp
5 Bumper moulding side
clips
6 Bumper moulding
7 Stud
8 Wiring multiplug
9 Centre support member
bolts
10 Bumper retaining bolts
11 Bumper mounting
11
1380 Rover 800 Series Remake
41.16 Rear bumper components - early
models shown, later models similar
1 Wheelarch liner screws
2 Wheelarch liner
3 Bumper moulding
nuts and grommets
4 Bumper moulding
retaining bolts
5 Bumper moulding
retaining clips
6 Bumper moulding
7 Towing eye cover
8 Bumper mounting
nuts and grommets
9 Bumper mounting
