and on the extreme edges, then remove the
finisher from the car (see illustrations).
5 Using pointed-nose pliers, release the
rubber sealing strip retaining clips (see
illustrations). Be prepared for some of these
clips to break during removal.
6 Lift off the centre grille and the left-hand
plenum moulding (see illustrations).
7 Working through the left-hand plenum
chamber aperture, undo the retaining nut and
remove the wiper linkage rotary link from the
motor spindle (see illustration).
8 Disconnect the wiper motor wiring
multiplug (see illustration).
9 Undo the three bolts and remove the wiper
motor and mounting bracket from the car (see
illustration).
10 Withdraw the seal from the motor spindle,
then remove the seal from the mounting plate.
11 Undo the three bolts and remove the
motor from the mounting plate.
Refitting
12 Refitting is a reversal of removal.
Wiper linkage
Removal
13 Remove the wiper motor as previously
described.
14 Disconnect the primary link arm from the
centre spindle assembly by pushing down to
release the ball-and-socket joint. Remove the
primary link.
15 Undo the four bolts securing the centre
spindle assembly, and the three bolts
securing the right-hand spindle assembly, to
the scuttle (see illustrations).
16 Feed the right-hand spindle assembly
through the scuttle aperture, and draw out the
linkage from the centre spindle opening.
Remove the complete linkage assembly from
the car.
17 Further dismantling is not possible, and if
any of the parts are worn, a complete linkage
assembly must be obtained.
Refitting
18 Refitting is a reversal of removal, ensuring
correct orientation of the linkage components.

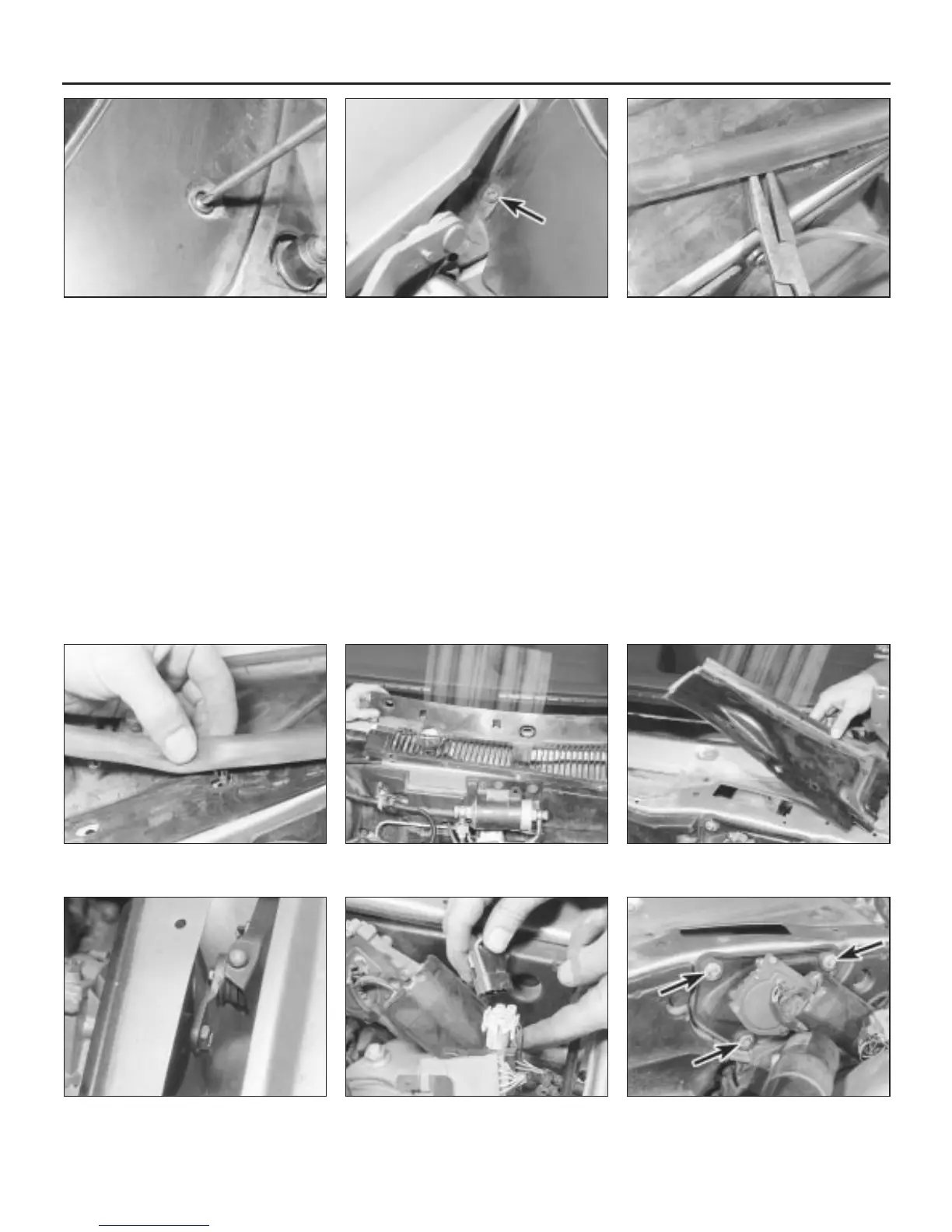

12•14 Body electrical system
16.9 Undo the motor mounting bracket
retaining nuts (arrowed)
16.8 Disconnect the motor wiring
multiplug
16.7 Undo the nut securing the linkage
rotary link to the motor spindle
16.6b . . . and the left-hand side plenum
moulding
16.6a Lift off the centre grille . . .16.5b . . . and withdraw the sealing strip
16.5a Release the rubber sealing strip
retaining clips . . .
16.4b . . . and at the extreme edges
1380 Rover 800 Series Remake
16.4a Undo the screws on the finisher
front face . . .
