10 Water pump (V6 engines) -
removal and refitting
4
Note: Due to the layout of the V6 engine and
the limited space available in the engine
compartment, access to most components is
extremely limited and may present unforseen
difficulties. Read through all the relevant
procedures and familiarize yourself with
what’s involved before proceeding.
Note: Refer to the warnings given in Section 1
of this Chapter before starting work.
Removal
1 Drain the cooling system as described in
Chapter 1.
2 Remove the timing belt and timing belt
tensioner as described in Chapter 2, Part B.
3 Undo the nine bolts securing the water
pump to the engine front plate, noting that
two are of a different length than the rest (see
illustration).
4 Withdraw the water pump and recover the
large sealing O-ring.
5 Thoroughly clean the mating faces, locating
dowels and O-ring recesses.
Refitting
6 Refitting is a reversal of removal, but use a
new sealing O-ring, and tighten the retaining
bolts to the specified torque. Refit the timing
belt and tensioner as described in Chapter 2,
Part B, and refill the cooling system as
described in Chapter 1.
11 Heater/ventilation
components -
removal and refitting
1
Heater blower motor and
housing assembly
Removal
1 Disconnect the battery negative (earth) lead
(refer to Chapter 5, Section 1).
2 Remove the trim panel under the facia on
the passenger’s side.
3 Open the glovebox, undo the two screws
securing the glovebox bar, and remove the
glovebox.
4 Disconnect the air duct from the side of the
unit, and recover the seals (see illustration).
5 Release the screw cap and undo the facia
retaining bolt at the extreme end, adjacent to
the door aperture.
6 Disconnect the blower motor wiring
multiplug (see illustration).
7 Disconnect the vacuum hose at the
solenoid (see illustration).
8 Undo the two upper bolts and one lower
nut securing the heater housing assembly in
position, and remove the unit from under the
facia (see illustrations).
Cooling, heating and air conditioning systems 3•9

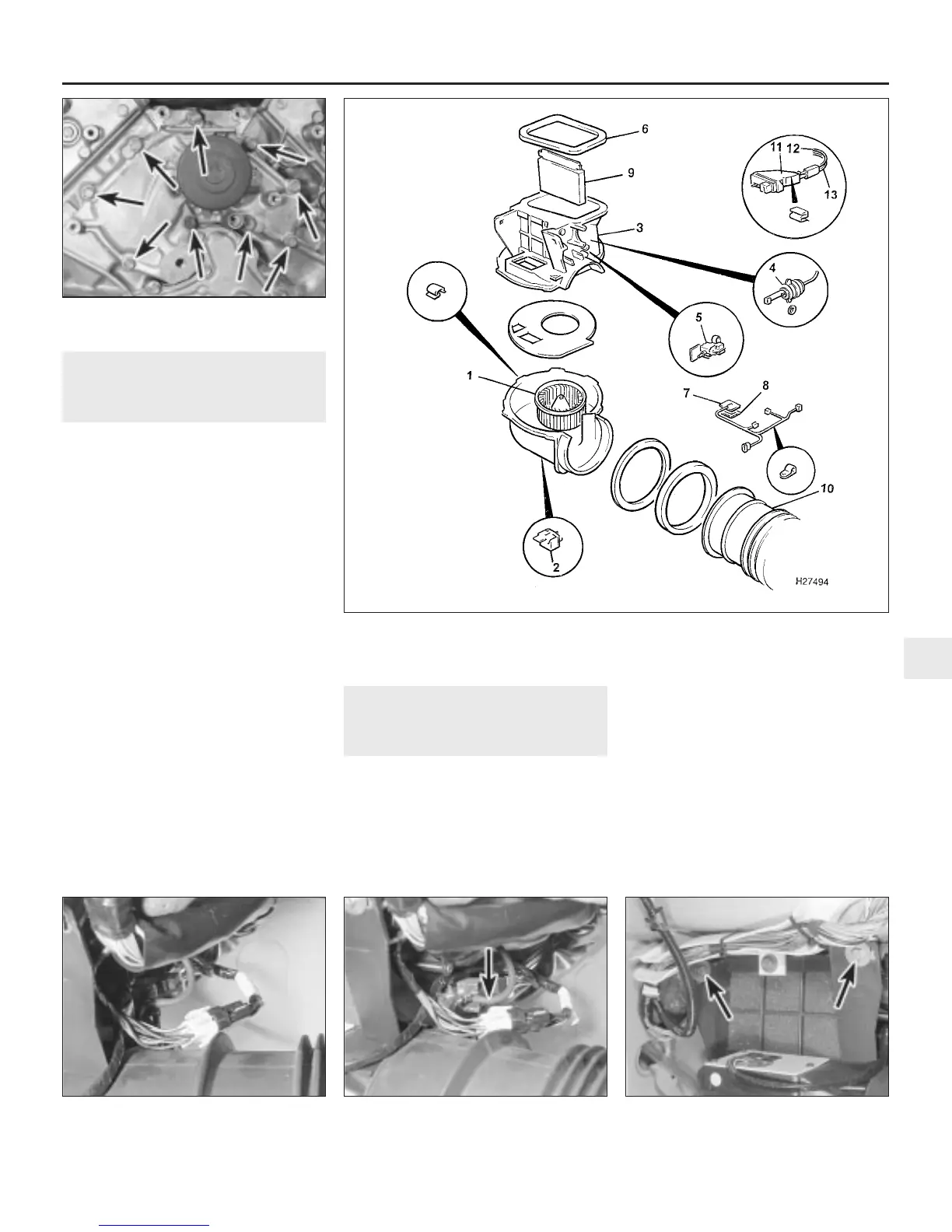

11.4 Exploded view of the heater blower motor housing assembly
10.3 Water pump retaining bolts (arrowed)
on V6 engines
11.8a Undo the two upper bolts
(arrowed) . . .
11.7 Solenoid vacuum hose (arrowed)11.6 Blower motor wiring multiplug
3
1380 Rover 800 Series Remake
1 Fan
2 Relay
3 Air box
4 Vacuum actuator
5 Vacuum solenoid
6 Seal
7 Harness
8 Gasket
9 Air flap
10 Air duct
11 Control assembly
12 Distribution cable
13 Temperature cable
