Fuses
158
Fuses are simple devices which protect
electrical equipment against the effects of
excess current. Always remove the starter key
and switch off the affected circuit before
removing a fuse.
Press the fuse removal tweezers (located in
the engine compartment fuse box) onto the
head of the fuse and pull to remove. Fit a new
fuse of the same rating. If the replacement
fuse fails immediately, contact your local Land
Rover dealer and have the circuit checked.
Fuses are colour-coded to help identify their
amperage, as follows:
VIOLET 3
TAN 5
BROWN 7.5
RED 10
BLUE 15
YELLOW 20
WHITE 25
GREEN 30
WARNING
Fit only replacement fuses of the same
rating and type. Always rectify the cause of
a failure before replacing a fuse. Seek
qualified assistance if necessary.
Never replace a blown fuse with a fuse of a
higher amperage rating - wiring damage or
fire may result.

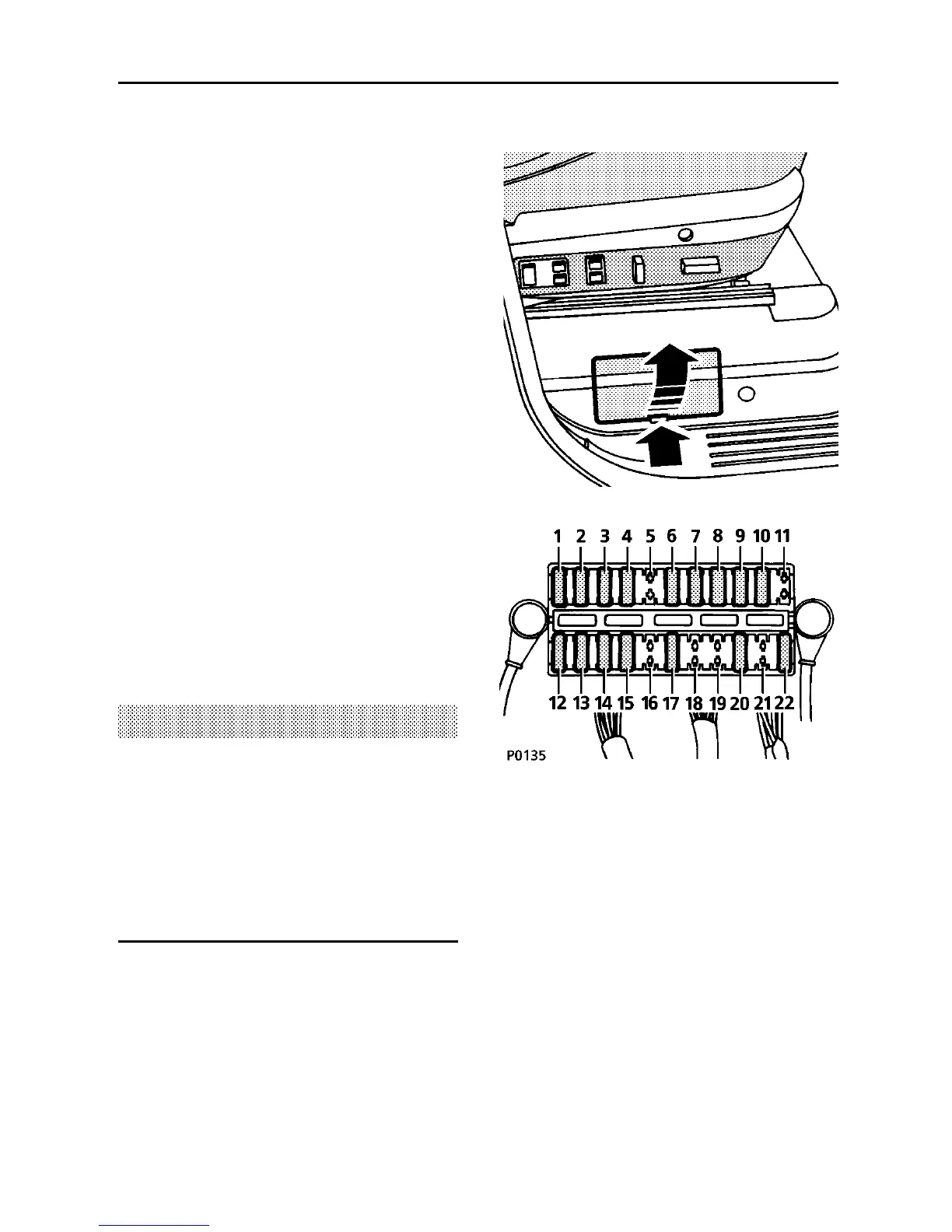

RIGHT HAND SEAT FUSE BOX
The failure of fuses 2 to 22 inclusive is
reported by the vehicle message centre.
Fuses 1 to 22 inclusive are located behind a
cover on the side of the right hand seat.
Lift the catch (arrowed) to disengage the
cover. A label on the rear of the cover
identifies the fuses and their ratings. The
following list supports the information on the
cover.
NOTE: The applicability of fuses will vary
from model to model, depending on the
features fitted to the vehicle.
