Bulb replacement
164

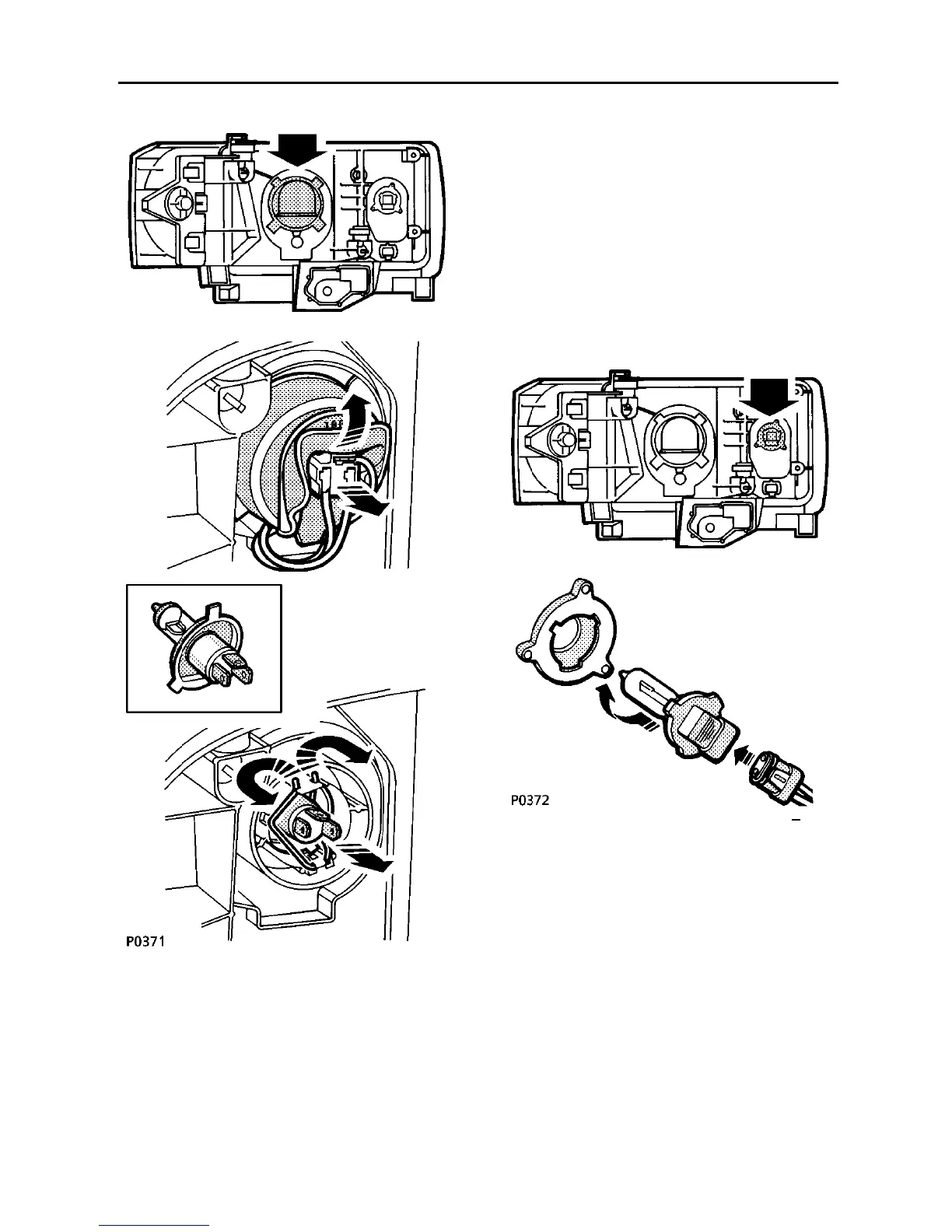

Dipped and main beam
To gain access to the right hand headlight,
first remove the battery cover.
Detach the multi-plug and remove the rubber
cover (the rubber cover has four tabs which
will assist removal and refitting). Unhook the
spring clip and withdraw the bulb.
Replace the bulb (the larger of the three tabs
uppermost) and spring clip. Fit the rubber
cover, ensuring that the three connectors pass
through the slots in the cover, then refit the
multi-plug.
Inboard main beam
Remove the plastic cover from rear of unit,
and detach the plug from the rear of the bulb.
Twist bulb counter-clockwise to remove.
