Bulb replacement
166

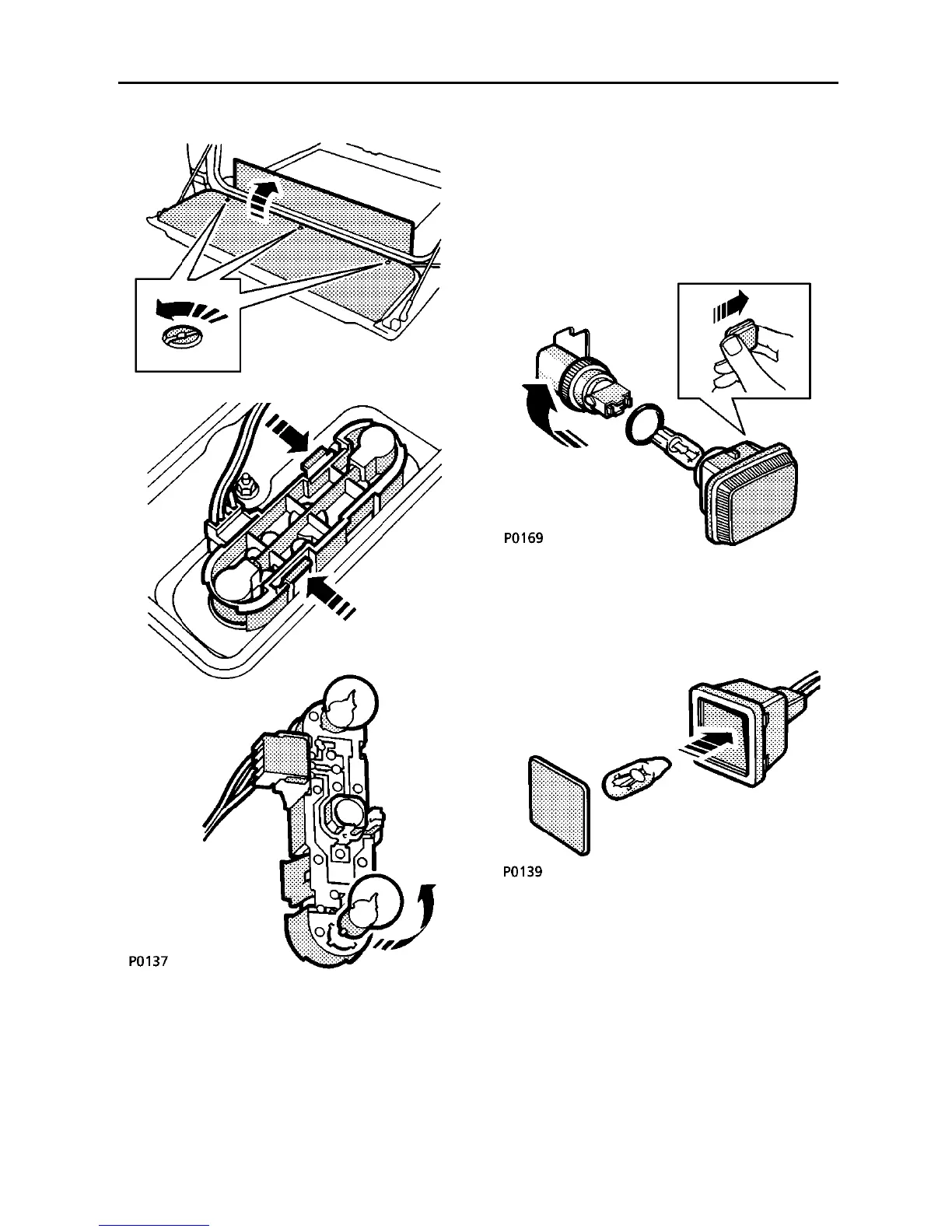

Reversing & fog guard lights
Open the tailgate and raise the plastic hinge
cover on the lower tailgate to expose the three
fasteners. Turn the fasteners a quarter turn to
release and then remove the tailgate trim
panel.
To release either light unit, squeeze the two
levers (one on each side), then press and
twist the appropriate bulb to remove.
Top - reversing light
Bottom - fog light.
Side repeater lights
Push the lens firmly to the right (arrowed) and
withdraw light unit from the wing. Twist the
bulb holder to release and pull out bulb.
Puddle lights
Using a plastic implement, prise the light unit
from the door, pulling out as far as the
electrical leads will permit, then prise the lens
from the light unit. Pull the bulb from holder.
Fit lens to the light unit before refitting.
