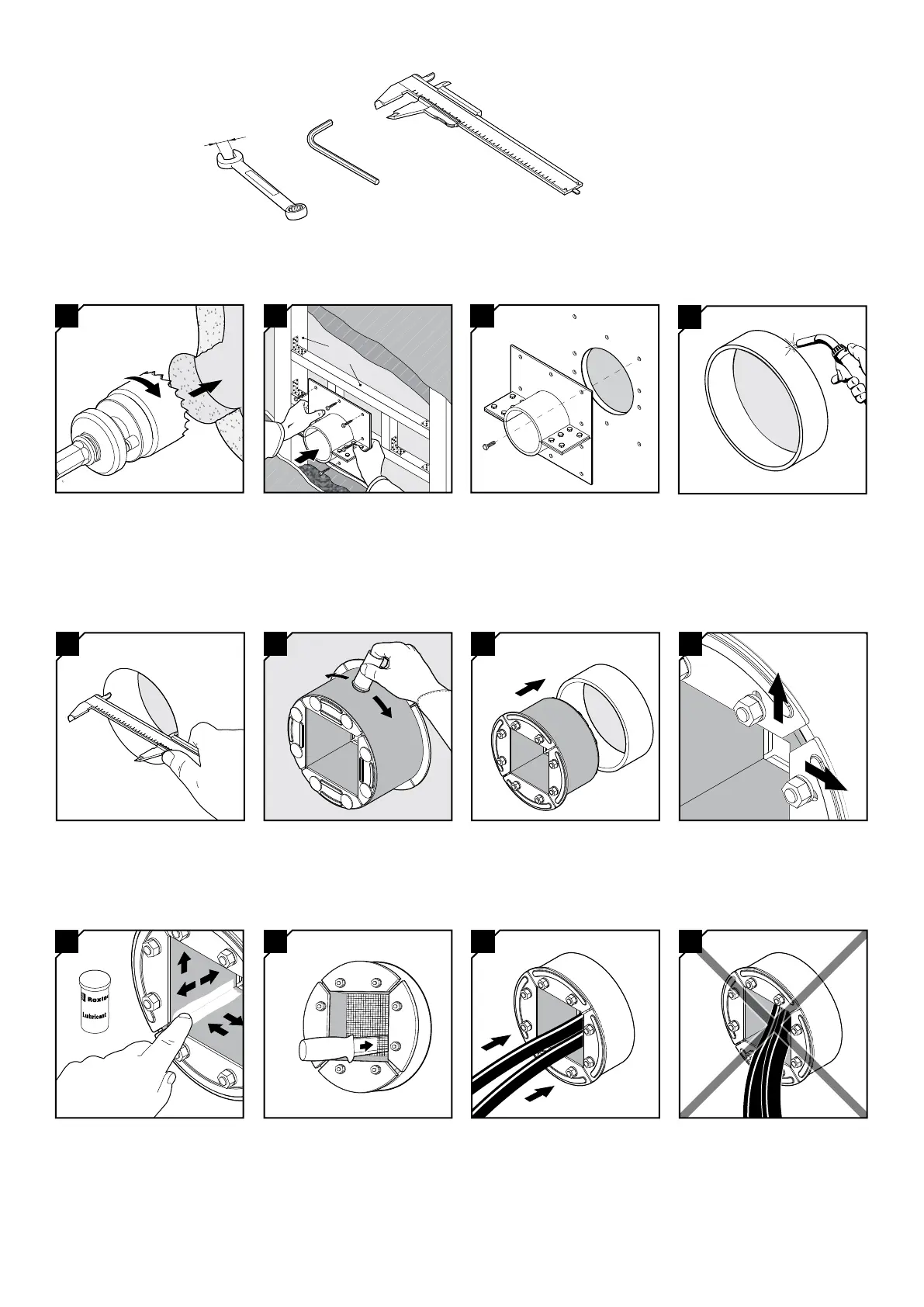

Roxtec R Series - Installation Methods; Installation in a core drilled hole; Installation in a non-load-bearing structure; Installation of bolted sleeve

Tools
(Not included)
SW
Installationina
coredrilledhole
Installationina
weldedsleeve
1
Weld the Roxtec sleeve to the
structure. Welding guidelines are
available at www.roxtec.com.
1
Use a hole saw with the appropriate
diameter.
Installationinanon
loadbearingstructure
A
B
1
For non-load-bearing structure.
Add additional aperture framing
structure of steel or timber (B) to
the existing structure (A) inside the
wall. Attach the frame to the added
structure with suitable fasteners.
1
Attach the sleeve to the structure
using suitable sealing method and
suitable fasteners.
3
Insert the frame into the
sleeve/hole.
2
Lubricate the frame sparsely on the
outside with Roxtec Lubricant.
4
Push the front fittings to the sides.
1
Make or verify an aperture according
to the table on the first page.
5
Lubricate the inside of the frame
thoroughly, especially into the corners.
6
If the frame is provided with a
net, cut or bend the net with a
sharp tool, or your fingers, to
enable cables/pipes to pass
through at their position in the
frame.
7
Pull the cables/pipes through.
The cable/pipe shall go straight
through the frame.
8
Not acceptable.
Installationofbolted
sleeve
Installation R frame
