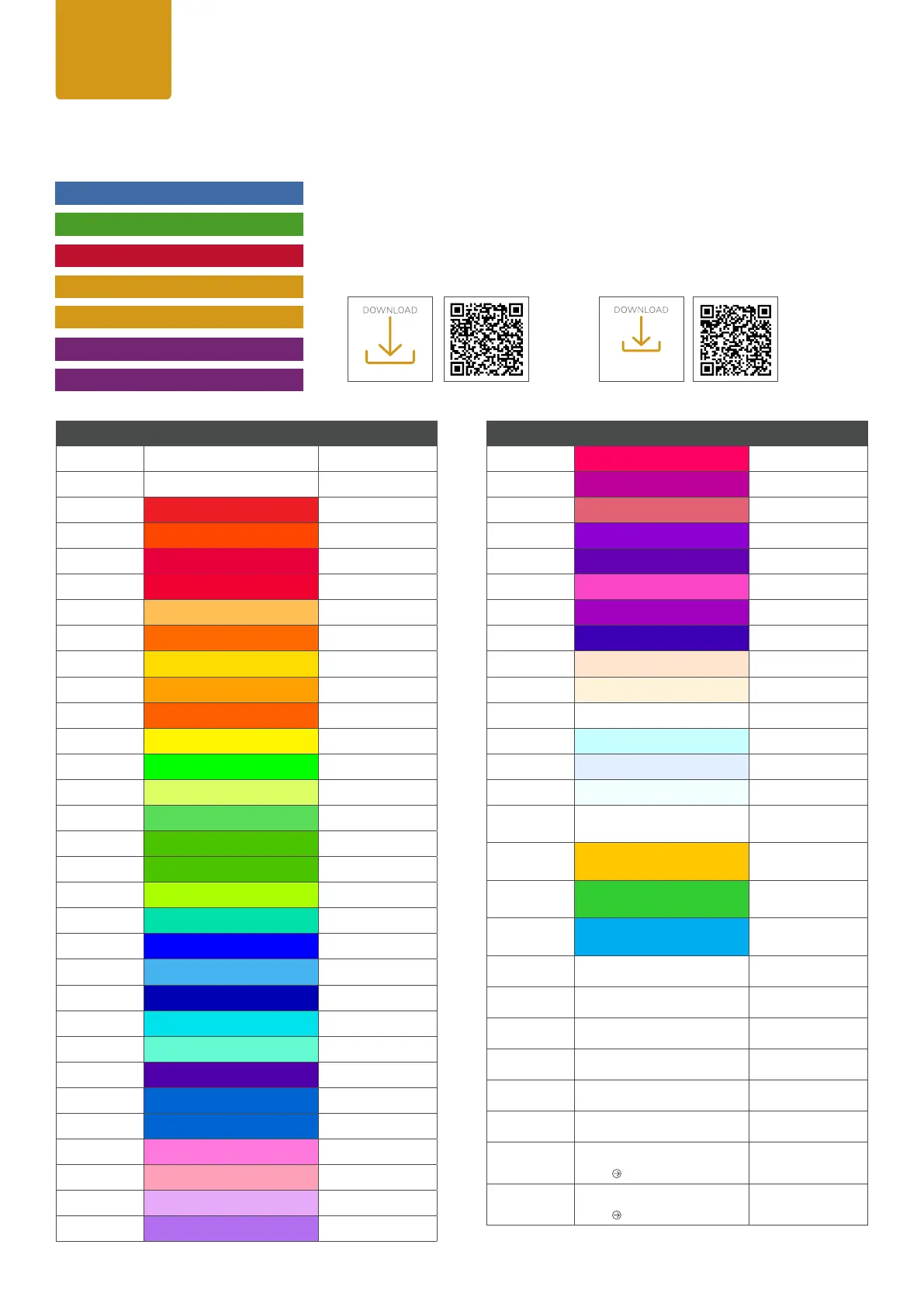

Gels - Color Macros for DMX
DMX value Gel Name Color Number
000-005 no function
006-008 Red 100% Red LED
009-011 Fire LEE 019
012-014 Medium Red LEE 027
015-017 Primary Red LEE 106
018-020 Med Amber LEE 020
021-023 Dark Amber LEE 022
024-026 Deep Amber LEE 104
027-029 Orange LEE 105
030-032 Deep Golden Amber LEE 135
033-035 Yellow LEE 101
036-038 Green 100% Green LED
039-041 Lime Green LEE 088
042-044 Moss Green LEE 089
045-047 LEE Green LEE 121
048-050 Primary Green LEE 139
051-053 Jas Green LEE 738
054-056 Jade LEE 323
057-059 Blue 100% Blue LED
060-062 Sky Blue LEE 068
063-065 Tokyo Blue LEE 071
066-068 Light Blue LEE 118
069-071 Marine Blue LEE 131
072-074 Med Blue LEE 132
075-077 Congo Blue LEE 181
078-080 Mikkel Blue LEE 716
081-083 Rose Pink LEE 002
084-086 Med Pink LEE 036
087-089 Light Lavender LEE 052
090-092 Lavender LEE 058
Gels - Color Macros for DMX
093-095 Magenta LEE 113
096-098 Mauve LEE 126
099-101 Smokey Pink LEE 127
102-104 Special Med Lavender LEE 343
105-107 Ultimate Violet LEE 707
108-110 Magical Magenta LEE 795
111-113 Chrysalis Pink LEE 798
114-116 Specia KH Lavender LEE 799
117-119 Bulb White 2700K
120-122 Halogen White 3200K
123-125 Neutral White 4200K
126-128 Daylight White 5600K
129-131 Cold White I 6000K
132-134 Cold White II 6300K
135-137 White (only if available) 100% White LED
138-140 Amber (only if available)
100% Amber LED
141-143 Lime (only if available) 100% Lime LED
144-146 Cyan (only if available) 100% Cyan LED
147-149 User Color 1
150-152 User Color 2
153-155 User Color 3
156-158 User Color 4
159-161 User Color 5
162-164 Color Jumping stop
165-209
Color Jumping speed
slow
fast
color 1-37
210-255
Color fading speed
slow
fast
color 1-37
DMX CHARTDMX CHART
User
Manual
7.4 DMX-Charts / Color Macro Charts / CCT Chart
Here you can nd the DMX charts and Pattern Charts for the Cluster S2
for reading or
downloading. Simply click on the icon or scan the QR code.
DMX charts Pattern charts
Pattern
Chart
DMX-Chart
15CH Simple Mode
39CH Easy Mode
72CH Standard Mode (default)
112CH Pure Mode
209CH Pure Mode
177CH Full Access Mode
274CH Full Access Extended Mode
