2. By included yoke with several mounting points:

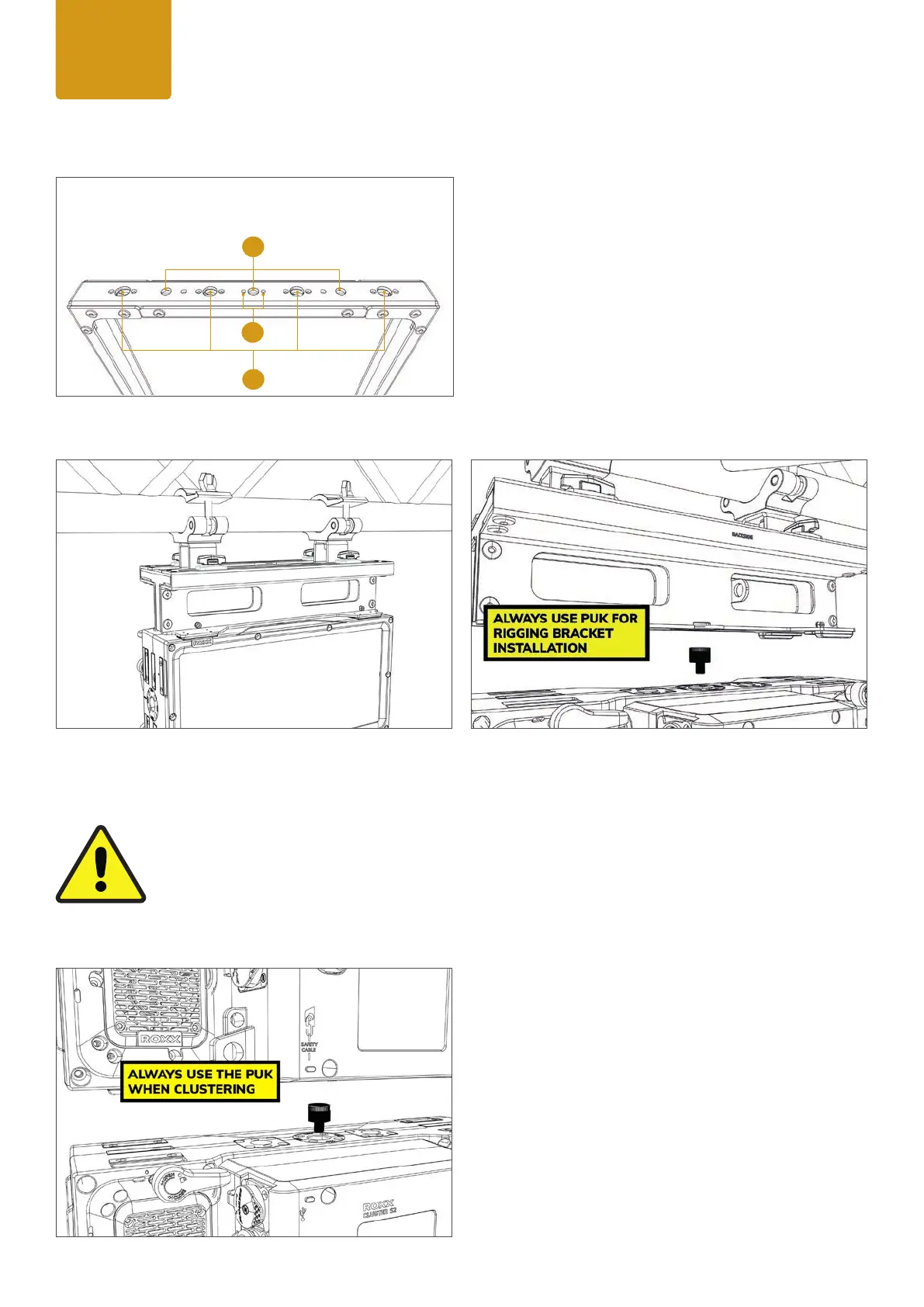

Multiple mounting points:
A: 3x Camlock with ¼ turn adapters
B: 3x M12 / ½“
C: 1x TV Spigot
3. Using optional ROXX RIGGING BRACKET
For seemless connection of multiple Blinders, to avoid gaps due to bracing of the truss structure by variable, sliding
mounting positions.
Product Clustering
All CLUSTER products can be easily connected both horizontal and vertically, by using the integrated
C-Lok system. The series is made to enable toolless multiple array congurations, scalable from a
single vertical line, to massive matrix like arrays.
To connect the devices with each other, proceed as follows in sequence:
1. Bring the devices together with the respective top and
bottom side.
A so-called centering puk is pre-installed on the top of
every cluster device.
This should always be installed when connecting the de-
vices to each other.
User
Manual
B
A
C
