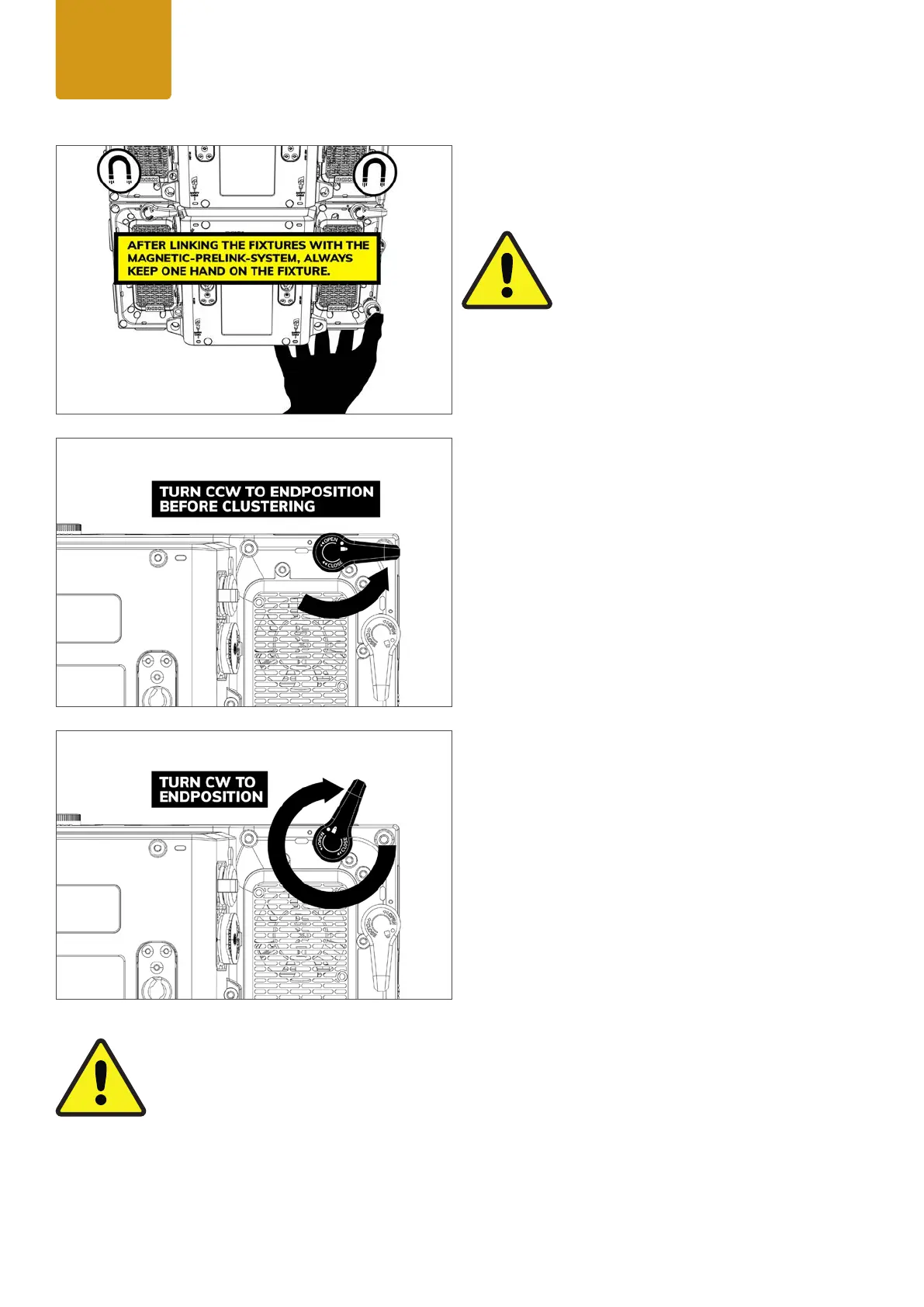

2. Pre-Link Magnets on top and side help to allign the x-
tures due cluster process and giving support operation
for convenient and save interlocking.
Important Note:
Even though the pre-link magnet system
is strong enough to hold the devices to-
gether, at least one hand must always
remain on the device for support during the connection.
3. Make sure that the C-Lok hooks are turned counterc-
lockwise (CCW) to the end-position rst before you nally
lock the C-Loks.
4. For locking all C-Lok´s, please turn them clockwise into
end-position.
Note:
As soon as both dot indicators are in line, the C-Lok is
securely locked
Maximum Tensile and Torsion Load
Before setting up Cluster congurations, be aware of the maximum tensile and torsion load, listed
here below. Also make sure the mounting clamps are capable of supporting the total weight of your
conguration.
The different rigging options of all Cluster products result in different maximum tensile and torsion loads that must
not be exceeded for a safe overhead installation.
User
Manual
